| Usage: | Electronic Load |
|---|---|
| Power: | Electronic |
| Brand Name: | MTKY |
| Warranty: | 2 years |
| weight: | 3.8kg |
| Model Number: | RK8512 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

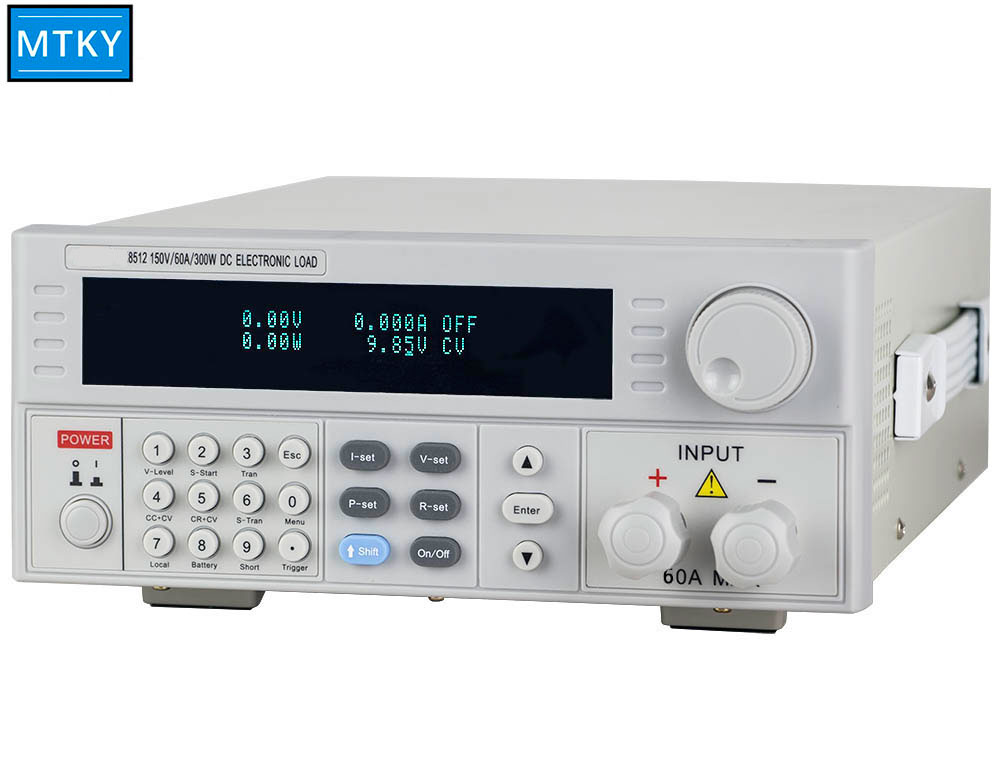

150V 60A 300W Pogrammable DC Electronic Load
Battery Test Electronic Load Tester
Specifications
Input Rating |
300W / 150V / 30A | ||
CC-MODE |
Range |
0-3A |
0-30A |
|
Resolution |
0.1mA |
1mA |
|
Accuracy |
0.05%+0.1%FS |
0.1%+0.1%FS |
CR-MODE |
Range |
0.1-99? |
100-4K? |
|
Resolution |
0.01? |
1? |
|
Accuracy |
1%+0.3%FS |
1%+0.8%FS |
CV-MODE |
Range |
0-18V |
0-120V |
|
Resolution |
1mV |
10mV |
|
Accuracy |
0.05%+0.02%FS |
0.05%+0.025%FS |
CW-MODE |
Range |
0-100W |
100-300W |
|
Resolution |
1mW |
10mW |
|
Accuracy |
1%+0.1%FS |
1%+0.1%FS |
V - Measurement |
Range |
0-18V |
0-120V |
|
Resolution |
1mV |
10mV |
|
Accuracy |
0.02% + 0.02%FS |
0.02% + 0.025%FS |
A - Measurement |
Range |
0-3A |
0-30A |
|
Resolution |
0.1mA |
1mA |
|
Accuracy |
0.1% + 0.1%FS |
0.2% + 0.15%FS |
Short Circuit |
Current |
?30A |
|
|
Resistance |
?40m? |
|
Tempature |
Operating |
0-40°C |
|
Battery Test |
Capacity |
MAX 999AH |
|
Transition |
Frequency |
0.1Hz - 1KHz |
|
Dimension(mm) |
W * H * D |
214.5 * 88.2 * 354.6 |
|
Widely used in the production line (phone charger, cell phone batteries, electric vehicle batteries, switch power supply, linear power supply), research institutions, automotive electronics, aerospace, ship, solar batteries, fuel cells and other industries
Features:
High accuracy and resolution 1mV/0.1mA
CC / CV / CR / CW Operation Mode
Free software for remote control
Intellective fan cooling
GPIB / USB / RS232 Interface
Self-test at power-on
OCP / OVP / OPP / OTP Protection
VFD display
Battery test and short test function
Convenient numeric keypad
Remote sensing capability
Auto test function without Computer
