We provide two types of optical modules with customized R&D and services.

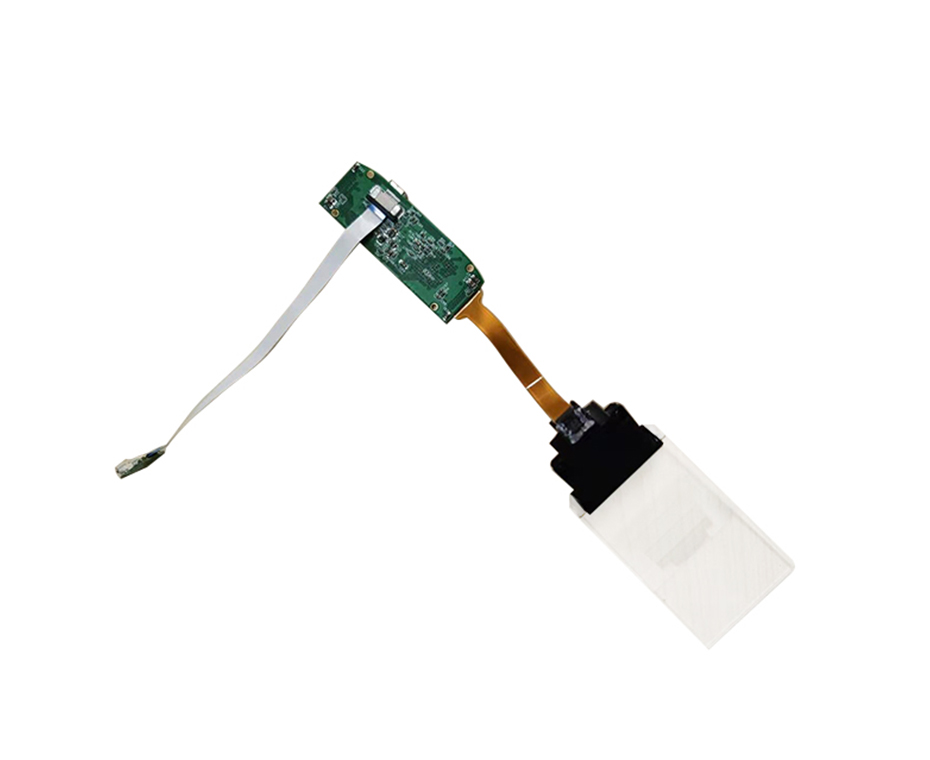

M2026 uses Micro OLED plus array optical waveguide display, which is a side-entry module, mainly used for normal-form AR glasses.



the characteristics  of M2026 optical display module are light and thin, and the weight of a single module is about 12g.



the light transmittance of the array light guide is more than 80%, which is close to the light transmittance of normal glasses. Compared with other peers using this technology, our module has a larger FOV, less distortion, and higher brightness.



Technical Specifications of M2026 Optical Module

item	Spec	M2026
Field of View	Diagonal FOV	26°
Display Panel	Technology	0.23' OLED
	Aspect ratio	16:10
	Horizontal display resolution	640pixels)
	Horizontal display resolution	400pixels
	FPS	60Hz
	Pixel Pitch	8μm
	Panel dimensions	5.0543.276mm
Eyebox&Eye Relief	Eyebox	7.6x7mm
	Eye Relief	22mm
Image quality	Virtual imaging size	55''@3m
	Contrast	100000:1 (ratio)
	Optical distortion	<2%
See-through transmission	See-through transmission	>80%
Weight	Weight	12g
Optical module seize	seize	24.5*23.5*8.5mm



Contrast between Oled and Lcos AR Optical Module

Micro OLED has a higher contrast ratio without a light white background. the Lcos display is similar to a screen due to its low contrast. Compared with OLED, Lcos optihas higher brightness, higher resolution, and higher power consumption and volume weight.

Goolton is a professionalAugmented reality companies, we provide ,,Ar waveguide,Waveoptics, and etc. Want to know More? Please contact us.
