| Function |
Parameter |

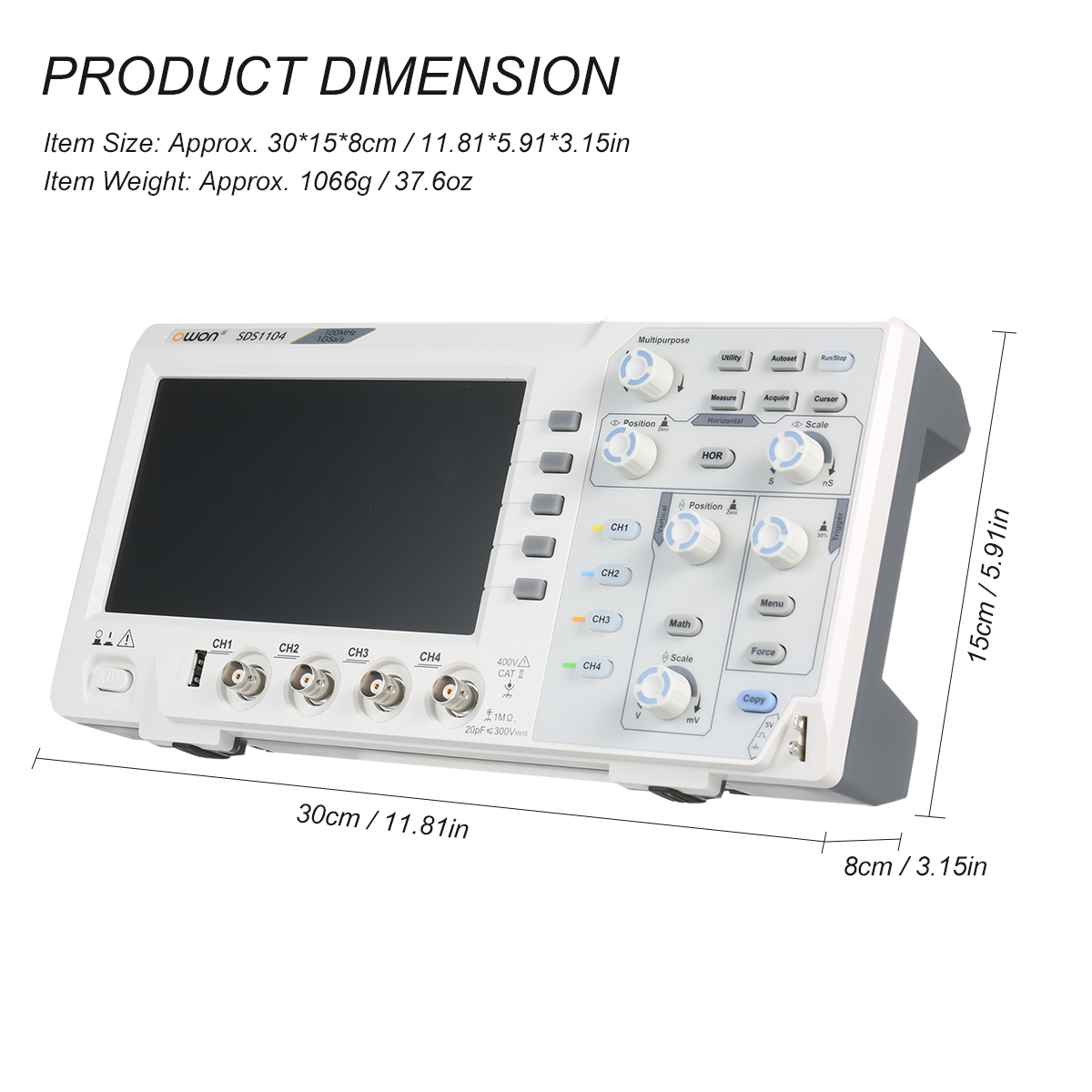

| Model |

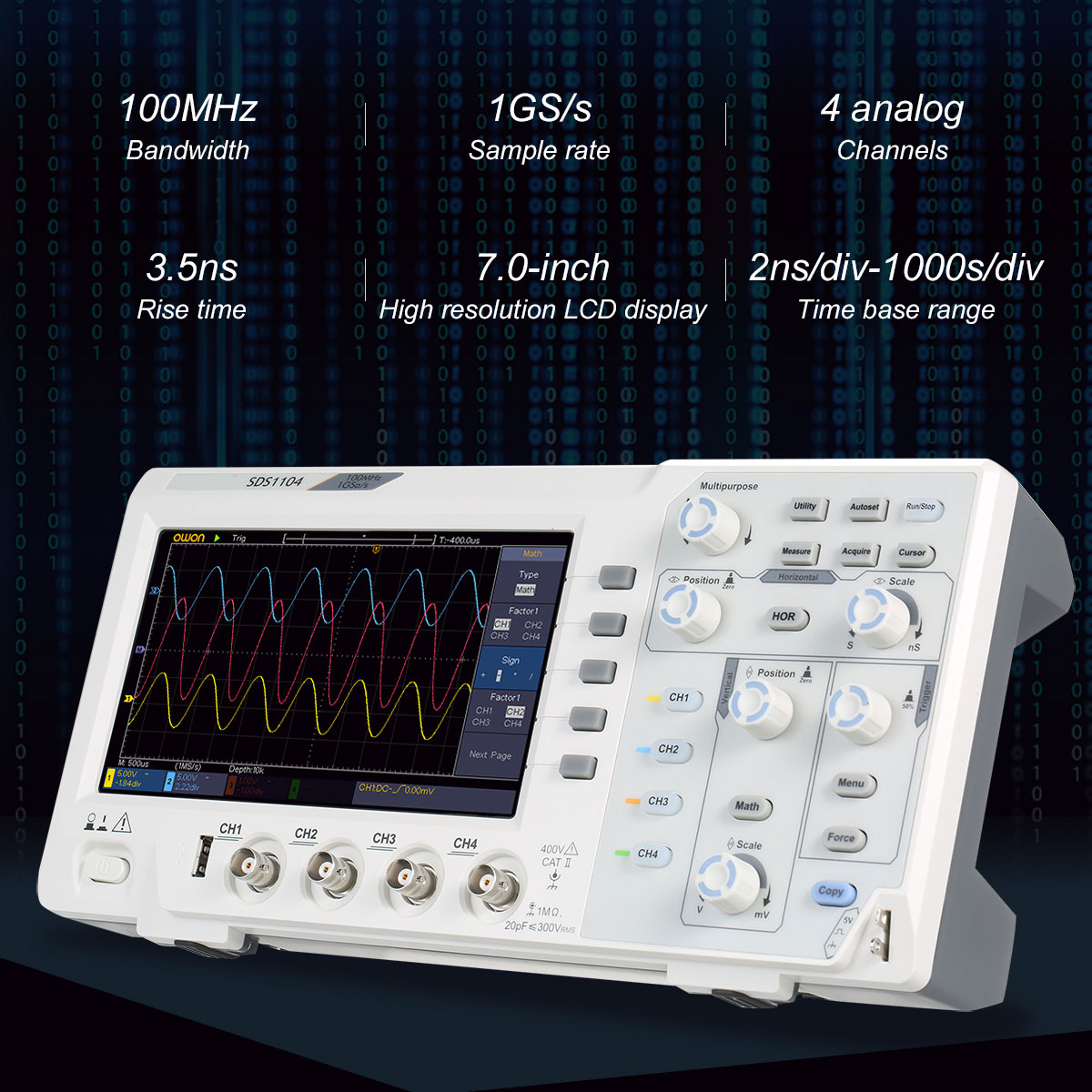

SDS1104 |
| Bandwidth |
100MHz |
| Sample Rate |
1GS/s |
| Horizontal Scale (s/div) |
2ns/div-1000s/div, step by 1-2-5 |
| Rise Time (at input, typical) |
≤3.5ns |

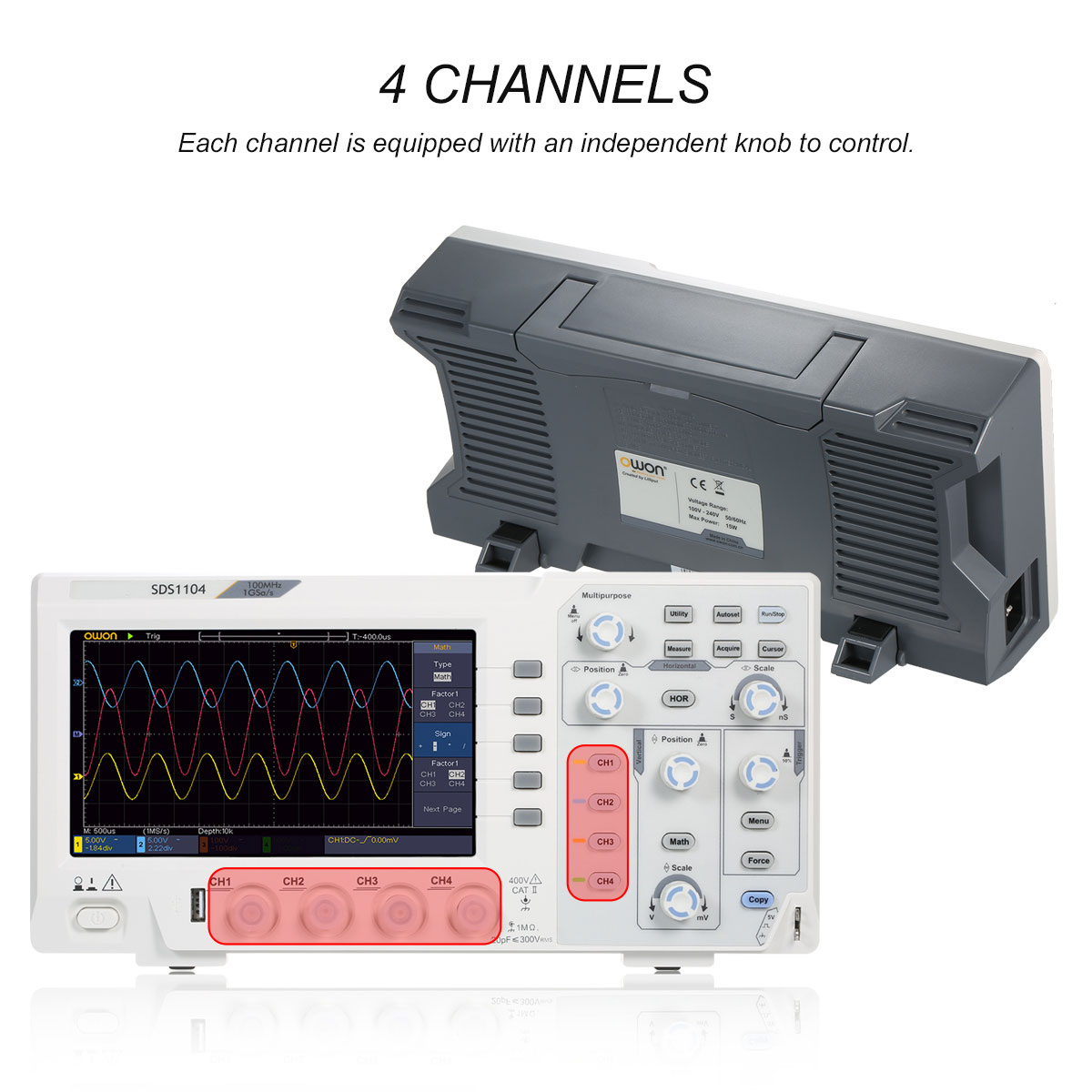

| Channel |
4 |
| Display |
7in color LCD, 800 x 480 pixels |
| Input Impedance |
1MΩ ± 2%, in parallel with 20pF±5pF |
| Maximum Input Voltage |
400V (PK - PK) (DC+AC, PK - PK) |
| DC Gain Accuracy |
±3% |
| Record Length |
20K |
| DC Accuracy (average) |
Average≥16:±(3% reading + 0.05 div) for V |
| Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
| LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
| Sample Rate / Relay Time |
±100ppm |
| Accuracy |
| Interpolation |
Sin (x) / x |
| Interval (T) Accuracy (full bandwidth) |
Single:±(1 interval time + 100ppm x reading + 0.6ns), |
| Average>16: ±(1 interval time + 100ppm x reading + 0.4ns) |
| Input Coupling |
DC, AC, and GND |
| Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
| Vertical Sensitivity |
5mV/div - 5V/div (at input) |
| Trigger Type |
Edge, Video |
| Trigger Mode |
Auto, Normal, and Single |
| Trigger Level |
±5 divisions from screen center |
| Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
| Cursor Measurement |
V, and T between cursors |
| Automatic Measurement |
Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, |
| Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B, area, |
| Cycle area, FRR, FRF, FFR, LRR, LRF, LFR, LFF |
| Waveform Math |
+, -, x,, invert, FFT |
| Waveform Storage |
16 waveforms |
| Lissajous |
Full bandwidth |
| Figure |
±3 degrees |
| Communication Interface |
USB host, USB device |
| Frequency Counter |
Available |
| Power Supply |
100V - 240V AC, 50/60Hz, CAT II |
| Power Consumption |
<15W |
| Fuse |
2A, T class, 250V |
