Intelligent Electricity Meter Monitor AC Power Test Electricity Meter Tester Measurement Instrument

9800N series Intelligent electric quantity measuring instrument(digital power meter), can measure the voltage,current,power,power factor,frequency,electric energy and other parameters of the single phase electric equipment,rich in content,has a wide measuring range, the preset alarm,latches and communications function.

the 9800N series has all the measurement and display function,increases the maintain data function,as well as the display function of frequency and power (energy) these two parameters on the basis of the original RK9800.RK9901N increase the limit alarm function of current and power based on the RK9800N.RK9940N and RK9980N expand the range of current (maximum for 40A and 80A respectively)based on RK9901N,it can measure the current and the products with more power.

Aiming at the shortage of above various products in small current measurement accuracy (the current resolution for 1mA),9813N increase a small current range(current resolution is 10uA)on the basis of 9901N,it can be used for current and products with small power.

these products can communicate with the host computer through the RS232 interface after  increasing the communication adapter board,it can observe data and set parameters remotely through the host computer.

APplication area

Motor:rotary motor

Household Electric Appliances:TV,refrigerator,air conditioner,washing machine,dryer, electric blanket,charger etc.

Electric appliances:electric drill,pIstol drill,Cutting machine,grinding machine,electric welding machine etc.

Lighting appliances:ballast,road lights,stage lights,portable lamps and other types of lamps.

Power supply:switching power supply,AC power supply,DC regulated power supply,variable-frequency power sources,communication power supply,power components and so on.

Transformer:power transformer,audio transformer,pulse transformer,switching power supply transformer, etc.

Performance characteristics

It can adjust the overrun alarm time.

the adjustment process of current overrun and power overrun is more intuitive,easy to operate

the ultra upper and lower limit alarm function of the current and the power can be setted separately.

Increase the large current type and small current type this two products.

Increase work (energy) display function.

Whole series of optional communication function.

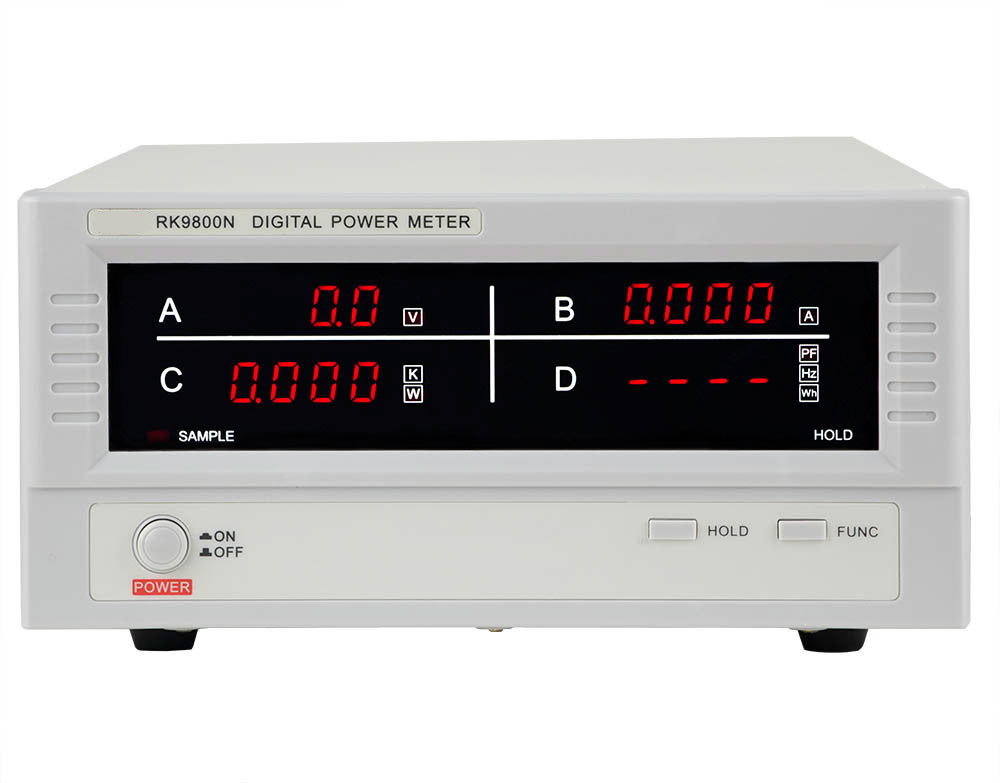

Model		9800N
Category		Basic type
Test item		Single-phase AC voltage,current,power,power factor,frequency,work(all valid value)
Voltage range		0~600V
Current range		0~4A  3.5~20A
Power(P)		12kW
Display resolution	Voltage	0.1V
	Current	1mA(CurrenT less than 10A) 10mA(CurrenT more than 9.999A)
Alarm function		None
Communication function		Interface of RS232(DB9)(Optional)
Test speed		2 t/s
Basic accuracy		±(0.4%(Numerical reading)+ 0.1%(range)+ 1 word)
Test frequency		45Hz-65Hz(Frequency of test instrument detectable)
Working power supply		≤AC 220V±20%,50/60Hz
Weight		2.5kg
Accessory		Power line,(CD,data line,communication module optional)
