1.Brief Introduction:



the working principle of WEDM is to use the continuously moving fine electrode wire as the electrode to etch the metal and cut the workpiece by pulse spark discharge.

the equipment is mainly used for manufacturing various molds, electrodes and precision parts, and processing complex cavities and curved surfaces of various conductors such as cemented carbide, quenched steel, graphite, aluminum alloy, structural steel, stainless steel, titanium alloy and diamond. It has the characteristics of high machining precision, high finish and fast cutting speed. the appearance design of the machine tool is beautiful and generous, the structural design is reasonable and compact, and the mechanical structure is solid. In terms of structural characteristics, the machine tool has strong practical functions. the unit of measurement of all parts of the machine tool and various instruments adopts the unit of measurement (SI) standard. the equipment protection devices are complete and reliable, and meet the provisions and requirements of relevant national departments on the general terms of machine tool safety protection.

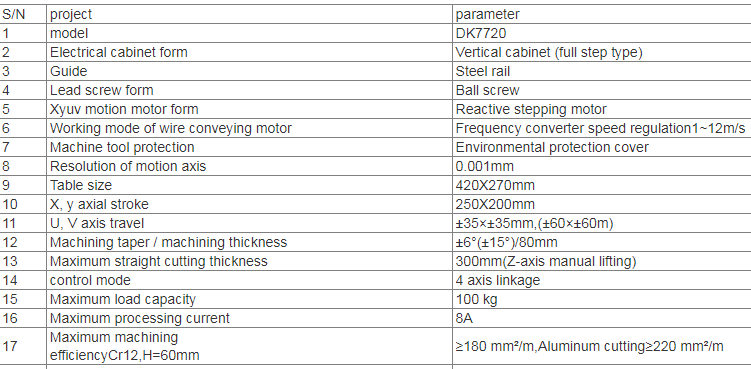

2.Techincal parameters:

3.Performance features:

(1). Wide scope of application

It can be machined regardless of the thickness and hardness of the material

as long as it is a conductive material, it can be processed from a thin plate into cemented carbide, regardless of the thickness, size and hardness of the material.

(2). It can process complex shapes

in addition to linear cutting, it can also be cut into arcs and process complex shapes, such as the combination of lines and arcs.

Taper machining can also be carried out by moving the upper and lower metal wires respectively.

(3). High accuracy

the accuracy of wire cutting is comparable to that of grinder (0.005 mm unit).

(4). No burr since deburring is not required, peripherals such as chip conveyor belts are not required, and the process can be shortened.

(5). No special tools are required since a relatively cheap brass (brass) wire can be used instead of a consumable tool such as a cutting tool for rotation and cutting, the tool does not need to be replaced and the cost of consumables can be reduced.

(6). Reduce material damage

Because wire cutting is a non-contact process, the load on the material will not be too large, and the thermal deformation is also very small.
