1. the electric control cabinet is equipped with high-speed cutting function, and the frequency conversion technology is adopted to make the wire transportation more stable. the surface finish of the workpiece is improved to 2.5 m and the machining accuracy is 0.015mm

2. CNC digital control wire feeding mode is adopted to improve the surface finish of the workpiece

3. It has the function of unidirectional discharge to effectively control the cutting lines on the workpiece surface

4. It has an intelligent database, which can be selected by users according to different workpiece cutting needs through a large number of experiments and optimization combinations

5. It has the function of high and low voltage shift current to meet the selection of processing current under different workpiece materials

6. It has grouping pulse auxiliary function to further meet the fine requirements of high-end customers

7. in particular, the new filtered water tank is selected to prolong the service life of the working fluid, improve the cleanliness of the working fluid, enhance the slag discharge performance, and finally improve the finish of the processed workpiece. Combined with the latest coolant water-based working fluid, it is harmless to the operator and the environment and meets the requirements of environmental protection

8. High speed electric cabinet is adopted, with beautiful appearance and reasonable internal structure. the heat dissipation effect is good. the electric cabinet has undergone long-term high-temperature aging before leaving the factory to ensure that the components are suitable for long-term continuous work. the integrated software of autocut programming and control is adopted to completely CAD graphics without conversion.

Long term normal working conditions of the machine:

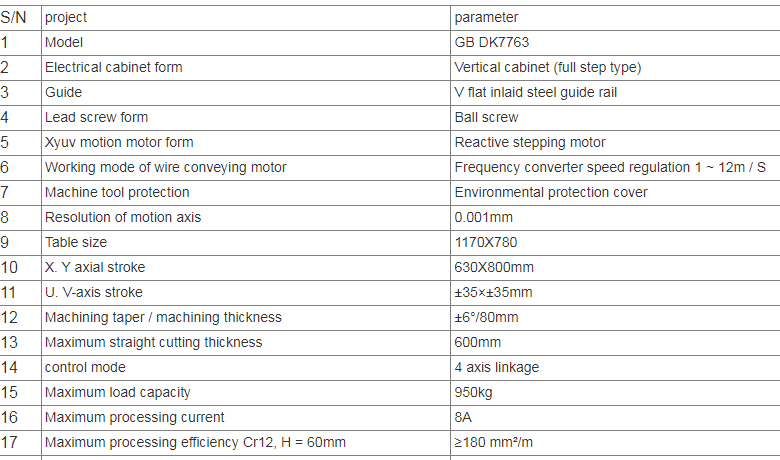

Technical parameters:
