| Needle Number: | / |
|---|---|
| Operation: | Computerized |
| Type: | GN1081CCD5.0 |
| Brand Name: | GBOS |
| Condition: | New |
| After-sales Service Provided: | Overseas service center available |
| Certification: | CE |
| Overall Dimensions: | 1450*1160*1670mm |
| Embroidery Area: | 850*600mm |
| Worktable Size: | 850*600mm |
| Model Number: | GN1081SCCD5.0 |
| Place of Origin: | China (Mainland) |
| Applicable Material:: | Woven label, embroidey label, embroidery patches |
| Condition:: | New |
| Application:: | LASER CUTTING |
| Warranty of core components:: | 1 Year |
Quick Details
Specifications
1.Brief Introduction:

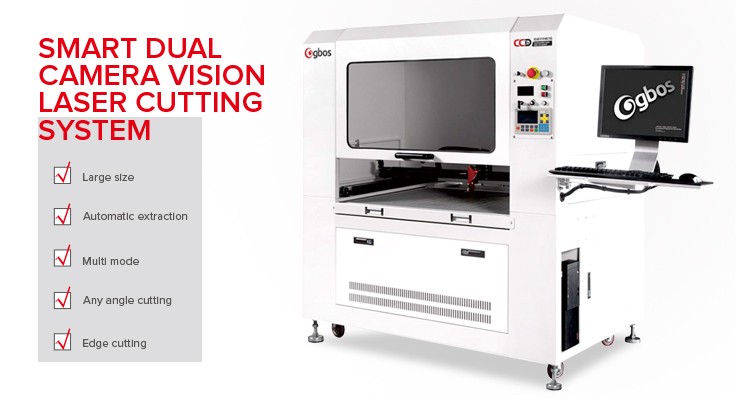

GBOS Dual Camera Vision Laser Cutting MachineGbos Dual Camera Vision Laser cutting machine adopt with advanced camera optical identify system,which can perfectly replace the traditional hand cutting,to achieve the higher precision and faster speed cutting function,special used for kinds of non-metal labels batch production.Including woven label,print label, plush toys and so on.Gbos laser cutter is widely applied since appeared in market.
2.Techincal parameters:
GBOS Dual Camera Vision Laser Cutting Machine
| MODEL |
GN1081SCCD5.0 |
| Processing Area(mm) |
850600mm |
| Gross Power |
≈1600W |
| Measurement(mm)(LWH) |
145011601670mm |
| System/Compatible Format |
WindowsXP/7/8/10,AI,PLT,DXF,DST,BMP,JPEG, JPG,PNG |
| Weight(kg) | 260KG |
| Power Supply | 220V/10A,50Hz or 60Hz |
| Cutting Precision | CCD: ±0.1mm SCCD: ±0.15mm(Central position --- Within 500mm*500mm) SCCD:±0.2mm (Outside of central position-Outside of 500mm*500mm) |
| Cutting speed | 300~500mm/s |
| Environmental Requirements |
Temperature 10-30℃ Humidity (no condensation) 30-80% |
GBOS Laser Cutting Machine applicable materials
Embroidery label, woven label, digital printing label, heat transferred label, care label, leather patch label,fabric, plush toys,Leather,wool fabric,cloth,rubber,wooden product
3.Performance features:
Precise and intelligence cutting
Positioning accuracy of 0.2mm, the best in the industry. Defective products can be selected.
Positioning cutting for multiple design Cut different labels at the same time to meet the needs of different products. Save time and improving work efficiently.
SCCD Large size Automatic extraction SCCD Large size automatic extraction Effectively identify area: 850mm*600mm Increased camera area, overall automatic extraction and cutting Solve the problem that large labels cannot be automatically extracted.
CCD Automatic extractionEffectively identify area: 150mm*120mm
Automatic tracking and cutting
Replace manual soldering iron
High effective Compare to normal CCD cutting machine, GBOS smart double camera laser cutting machine speed increased by 40%-50%.Optional glass laser tube 70W,80W,100W,130W meet any of your requirements.20,000h maintenance-free.
CCD Deformation matching cutting
According material transformation condition,automatic deformation cutting
Camera follow the label transformation do grapth matching.
Solve the problem of cutting edge unsmooth.
According material transformation condition,automatic deformation cutting
Camera follow the label transformation do grapth matching.
Solve the problem of cutting edge unsmooth.

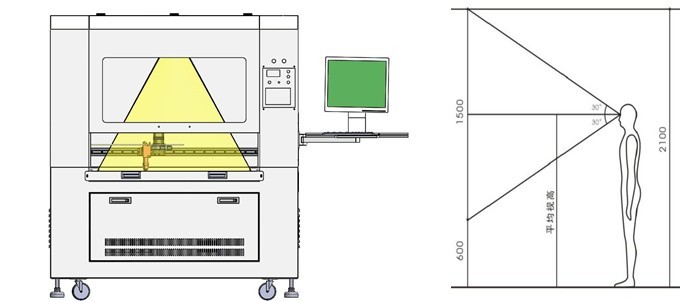

Ergonomic Designthe operation panel, table tops, and windows are all within sight of the height of the human body and can be seen at a glance.
GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.
since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. so far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification.
the company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.
"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.
