| Usage: | Waterproof |
|---|---|
| Power: | Electronic |
| Brand Name: | Sunho |
| Warranty: | 1 year |
| weight: | depend on customization |
| Model Number: | SH8110 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Main Advantages
1. Touch Screen Display & PLC Control
2. Programmable Water Jetting Function
3. Independent Control of Each Nozzle
4.High-precision Electronic Flowmeter
5. Water Filtration System
Technical Specifications

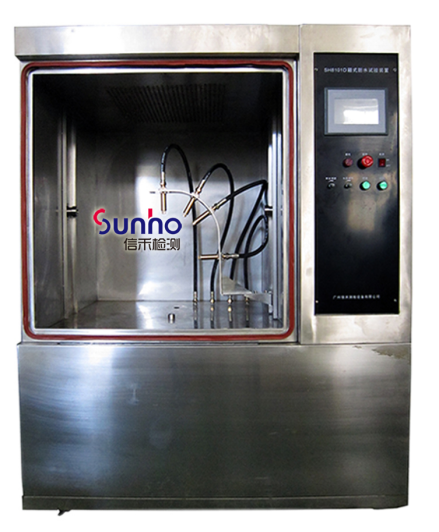

IPX9(K) Water Jetting Chamber Inside Dimension
1000*1000*1000mm Main Material
SUB304 Stainless Steel Display & Control
Color touchscreen + PLC Control Max. Sample Size
450*350*200mm Max. Sample Weight
20kg Water Jetting
Jet Nozzle Position
0°/30°/60°/90°(one for each) Jetting Duration
0.1s-999.9s(each nozzle adjustable) Jetting Flow Rate
14L/min-16L/min Water Temperature
15℃~80℃ Water Pressure
1Mpa-10Mpa Water Treatment
Water filtration system Rotating Table
Table Diameter
Φ500mm Table Height
100mm-200mm(to nozzle) Rotating Speed
1r/min-15r/min Range of Motion
360°
Certification

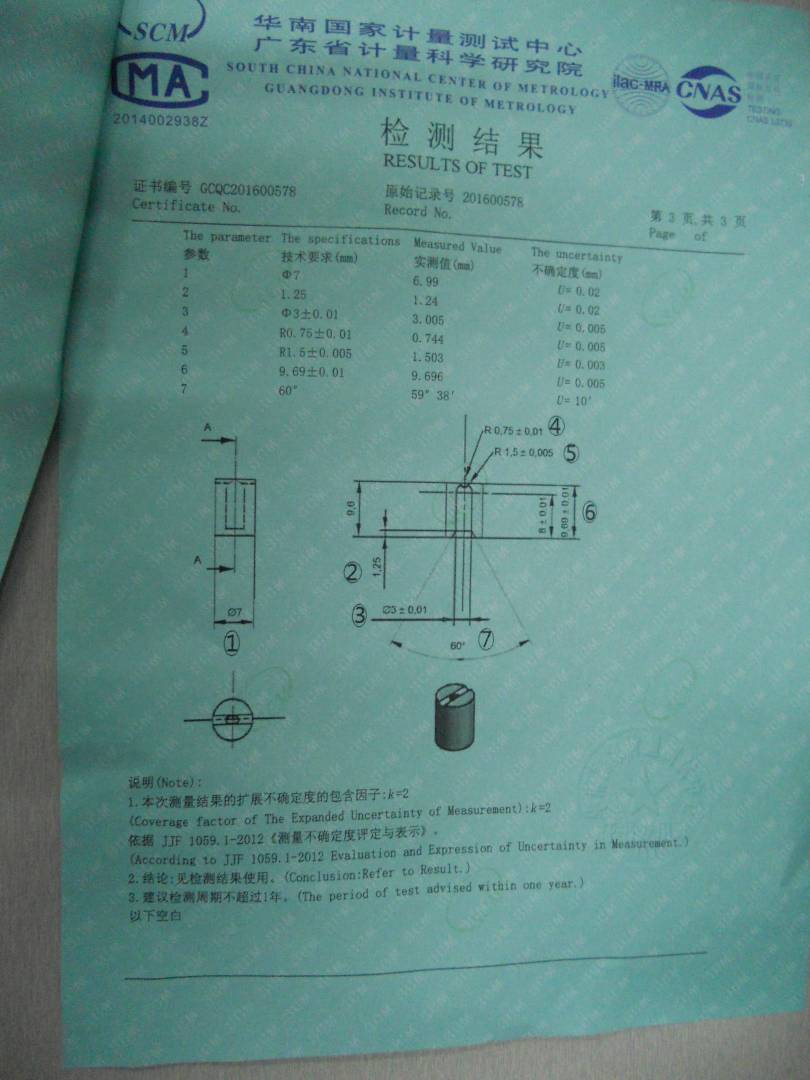

Quality Assurance: calibration report
Services
Sales, Design&Manufacture: custOmized model available
after-Sales: 1 year of warranty(free exchangeof repair parts), favorable price for wearing parts.
Tips: Due to the COVID-19 pandemic, the oversea maintenance would be conducted based on remote network. We thank you for your understanding and sincerely apologize for the inconvenience.
