Feature: | Bridge Crane |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year |
Certification: | CE ISO EAC |
Condition: | New |
Feature: | High Qualty |
Model Number: | LDA |
Brand Name: | Kuangyuan |
Place of Origin: | China (Mainland) |
Span: | 7m-31.5m |
Max. Lifting Height: | 30m |
Max. Lifting Load: | 20ton |
Rated Lifting Moment: | 200KN |
Rated Loading Capacity: | 20 ton |
Application: | workshop |
Name: | overhead crane |
Lifting mechanism: | Electric hoist |
Lifting speed: | 3.5m/min |
Traveling speed: | 20m/min |
Protection class: | A3 |
Color: | Customized |
Voltage: | Customized |
Warranty: | 1 year |
Main body: | Box type |
Quick Details
Specifications

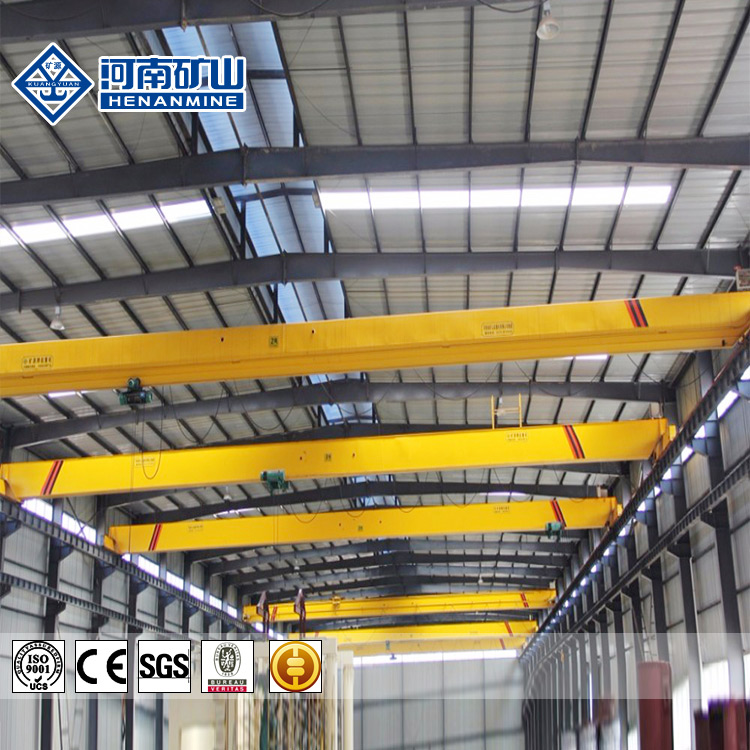

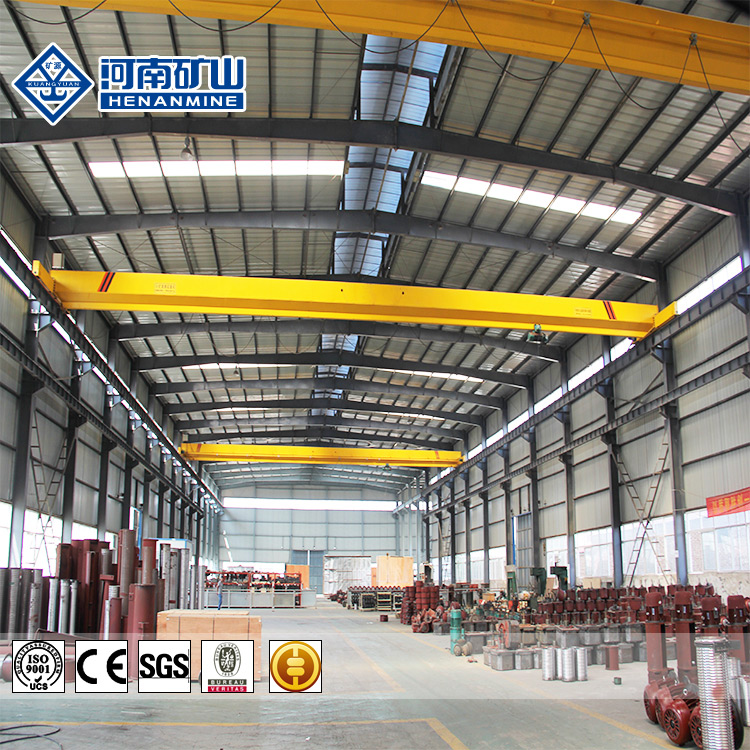

LDA Single girder overhead crane is a usual crane forms a complete set with electric Hoist. Mainly used in machinery manufacturing and places like assembling plants,storage houses.the product is technologically advanced and its design according to international standards: DIN (Germany), FEM (Europe),ISO (International), with the advantages of low energy consumption, strong rigidity, light weight, outstanding structural design, etc., which can effectively save plant space and investment.the cost and unique structure of the walking are your best choice.
Main Parts of LDA model Crane:
Main Features of LDA model Crane:
1).Light structure,easy installation and maintenance;
2). Reasonable structure,strong bearing capacity;
3). Low noise, soft starting and stopping;
4). Safe and reliable operation;
5). Low cost maintenance, long working life;
6). Strong box type,welding by machine hand.;
7). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
8). Heavy duty slipring motor,Or Sq.Cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
Capacity |
t |
3 |
5 |
10 |
16 |
20 | ||
Operational method |
|
Pendent line with press button /cabin/remote control | ||||||
Speed |
Hoisting |
m/min |
8. 8/0.8 |
7. 7/0.7 |
3.5, 3.5/0.35 |
6. 6/0.6 | ||
Travelling of crab |
20 | |||||||
Travelling of crane |
Surface |
20(30) |
20 | |||||
Cabin |
20(30) |
20 | ||||||
Electric hoist |
Type |
CD1-3 MD1-3 |
CD1-5 MD1-5 |
CD1-10 MD1-10 |
CD1-16 MD1-16 |
| ||
Lifting height |
m |
6,9,12 |
6,9,12,18 |
9,12 |
9,12 |
9,12 | ||
Working class |
|
A3~A5 | ||||||
Power supply |
|
3-phrase 50HZ 380V |
Attention:
Safety is the most important issue for cranes. to ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this)
