Product Main

Quick Details

Feature: Gantry Crane
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Brand Name: Kuangyuan
Condition: New
Feature: High efficient
Certification: CE ISO EAC
Model Number: MH
Place of Origin: China (Mainland)
Span: 7m-31.5m
Max. Lifting Height: 30m
Max. Lifting Load: 10 ton
Rated Lifting Moment: 100 KN
Rated Loading Capacity: 10 ton
Application: workshop
Name: Single beam gantry crane
Lifting mechanism: electric wire rope hoist
Soft start: 20m/min
Traveling speed: 20m/min
Protection class: IP54
Color: Customized
Electrical parts: Schneider
Power Source: 380~480V, 50hz/60hz
Working duty: A3
Standard: DIN/FEM/GB

Specifications

10 ton Single Beam Gantry Crane with Electric Wire Rope Hoist
Product Description

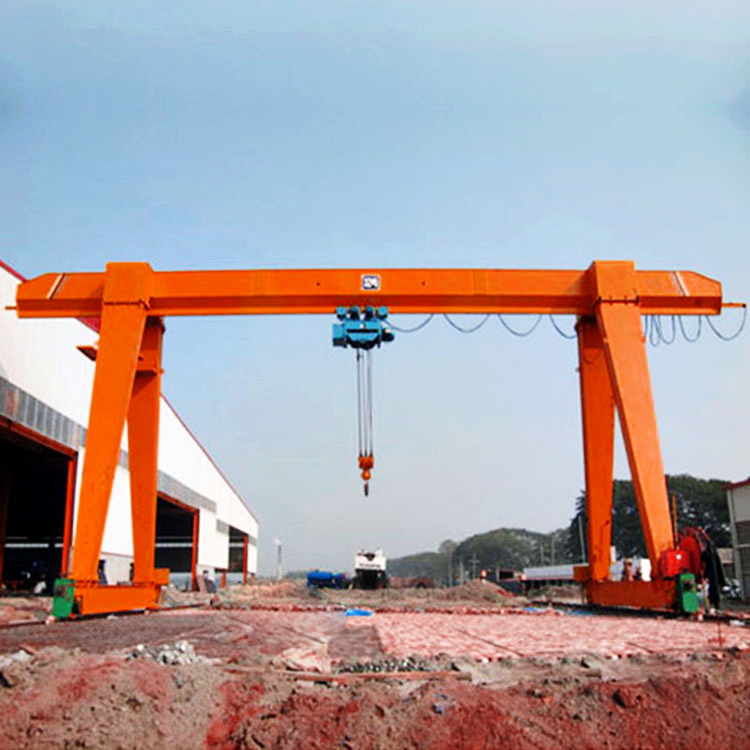

10 ton Single Beam Gantry Crane With Electric Wire Rope Hoist

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.
10 ton Single Beam Gantry Crane With Electric Wire Rope Hoist



Product Details



Main Parts of MH model gantry Crane:

Main Features of MH model gantry Crane:

1.Simple and compact structure, steady performance.

2.Easy to install and high efficiency.

3.Overload, low voltage protective device.

4.Pendent control and remote control.

5.Easy maintenance.

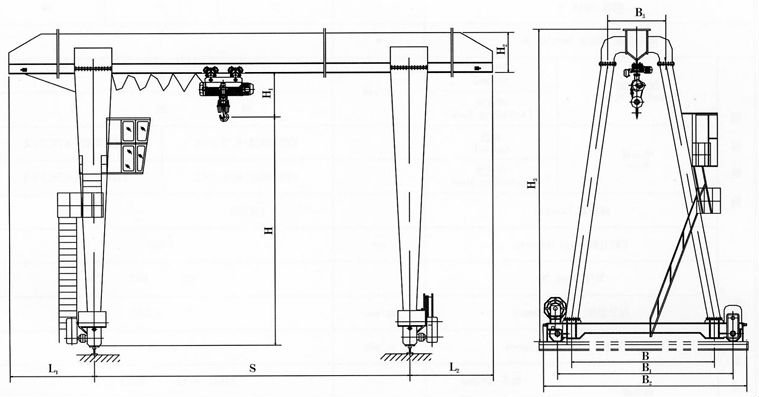

Product Structure



Rated load/ton

5

 10

 16

 20

Span/m

10-40

Lifting height/m

30

Working class

A3/1bM

Lifting speed/m/min

8

7

3.5

 3.5

Trolley running speed/m/min

20

 20

20

20

Crane running speed/m/min

 20

 20

20

20

Dead weight/t

10.5~37.5

 16.8~52

18.9~65

 24.5~77

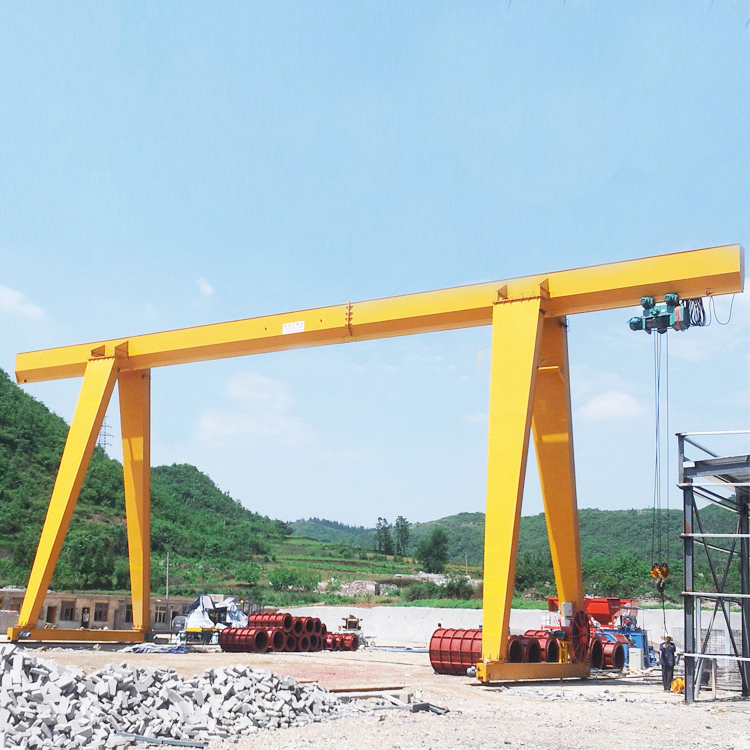

 10 ton Single Beam Gantry Crane With Electric Wire Rope Hoist

Attention:

Safety is the most important issue for cranes. to ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
