| Feature: | Gantry Crane |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Brand Name: | Kuangyuan |
| Condition: | New |
| Feature: | High efficient |
| Certification: | CE ISO EAC |
| Model Number: | MG |
| Place of Origin: | China (Mainland) |
| Span: | 7m-31.5m |
| Max. Lifting Height: | 30m |
| Max. Lifting Load: | 45ton |
| Rated Lifting Moment: | 450KN |
| Rated Loading Capacity: | 45 ton |
| Application: | workshop |
| Name: | Gantry Crane |
| Lifting mechanism: | Open winch trolley |
| Soft start: | 3-5 speeds to operate |
| Material: | Q235 & Q345 |
| Protection class: | IP54 |
| Color: | Customized |
| Voltage: | Customized |
| Power Source: | 380~480V, 50hz/60hz |
| Working duty: | M5~M8 (ISO) |
| Electric applicance: | Schneider |
Quick Details
Specifications

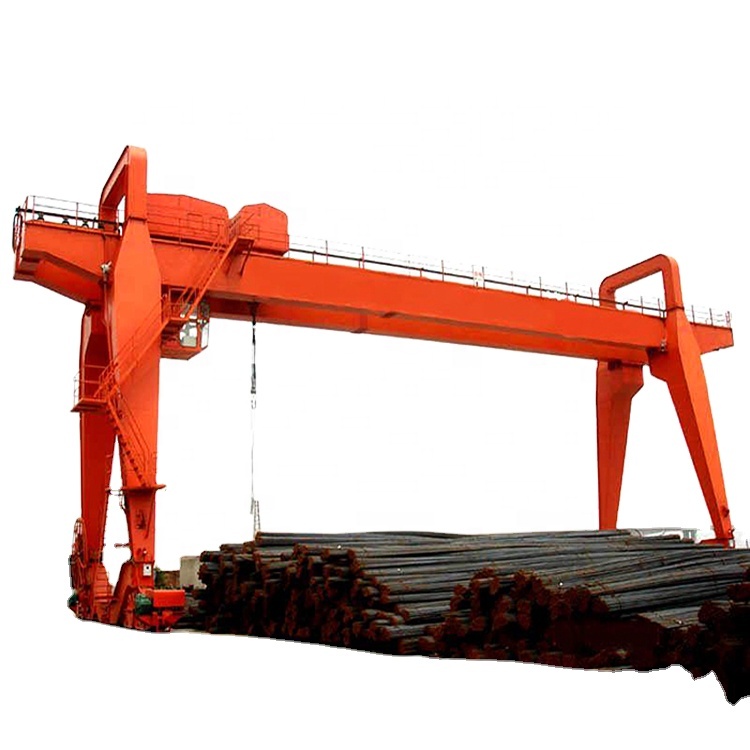

1.Double girder gantry Crane is widely used together with winch or trolley for lifting device. It is a medium and heavy size crane which travels in track.
2.Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
3.Working temperature is -20~+40 °C
4.this product is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.
5.It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
6.Double girder gantry crane have A type, U type. U type is designed for container lifting. It could be designed with cantilever or not.
