Max. Power: | 1.6W |
---|---|
Number of Cells: | 10pcs |
Size: | 120x70x2mm |
Material: | IBC solar cell |
Brand Name: | WSL Solar |
Model Number: | WSL-S010 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

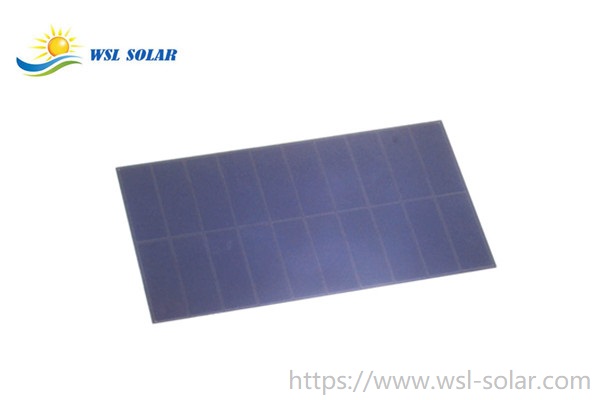

this 5.5v 1.6-watt custom solar panel is built with the super high efficiency Sunpower solar cell. It is laminated by ETFE film, which is light weight and thin. this solar panel is great for charging your 3.7-volt DC batteries and ideal for use in off grid applications such as IoT devices, radio, Bluetooth, wireless sensors, RF Radio Sensitivity or solar gifts.
Features:
- Sunpower solar cell with efficiencies of up to 23% guarantee high power output
- Matte finish and no busbar on panel surface
- ETFE laminated, light weight and thin
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments
WSL Solar has been a quality and professional manufacturer of and solar solution provider in China since 2006.
Features:
- Sunpower solar cell with efficiencies of up to 23% guarantee high power output
- Matte finish and no busbar on panel surface
- ETFE laminated, light weight and thin
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments
Specification
Item No. | WSL-S010 |
Dimension | 120x70x2mm |
Peak Power (Pmax) | 1.6W |
Voltage at Pmax (Vmp) | 5.5V |
Current at Pmax (Imp) | 290mA |
Open Circuit Voltage (Voc) | 6.6V |
Short Circuit Current (Isc) | 319mA |
Cell Type | High Efficiency Sunpower Solar Cell |
Power Tolerance | ±5% |
Encapsulation method | High transparency ETFE Film |
Back Sheet | Double fiberglass PCB |
Product Warranty | 2 Years |
Lead time | 20 Days |
Storage temperature | -20°C ~ 45°C |
Working temperature | -20°C ~ 65°C |
Standard Test Conditions (STC) | 1000W/m2, 1.5AM, 25°C Cell temperature |
