Main Advantages

1. 8 Types of Tubes Provided (R0.2m~R1.6m)
2. Tube Height Adjustable
3. Color TouchScreen + PLC Control
4. Variable Frequency Control(VFC) Water Supply System

Technical Details

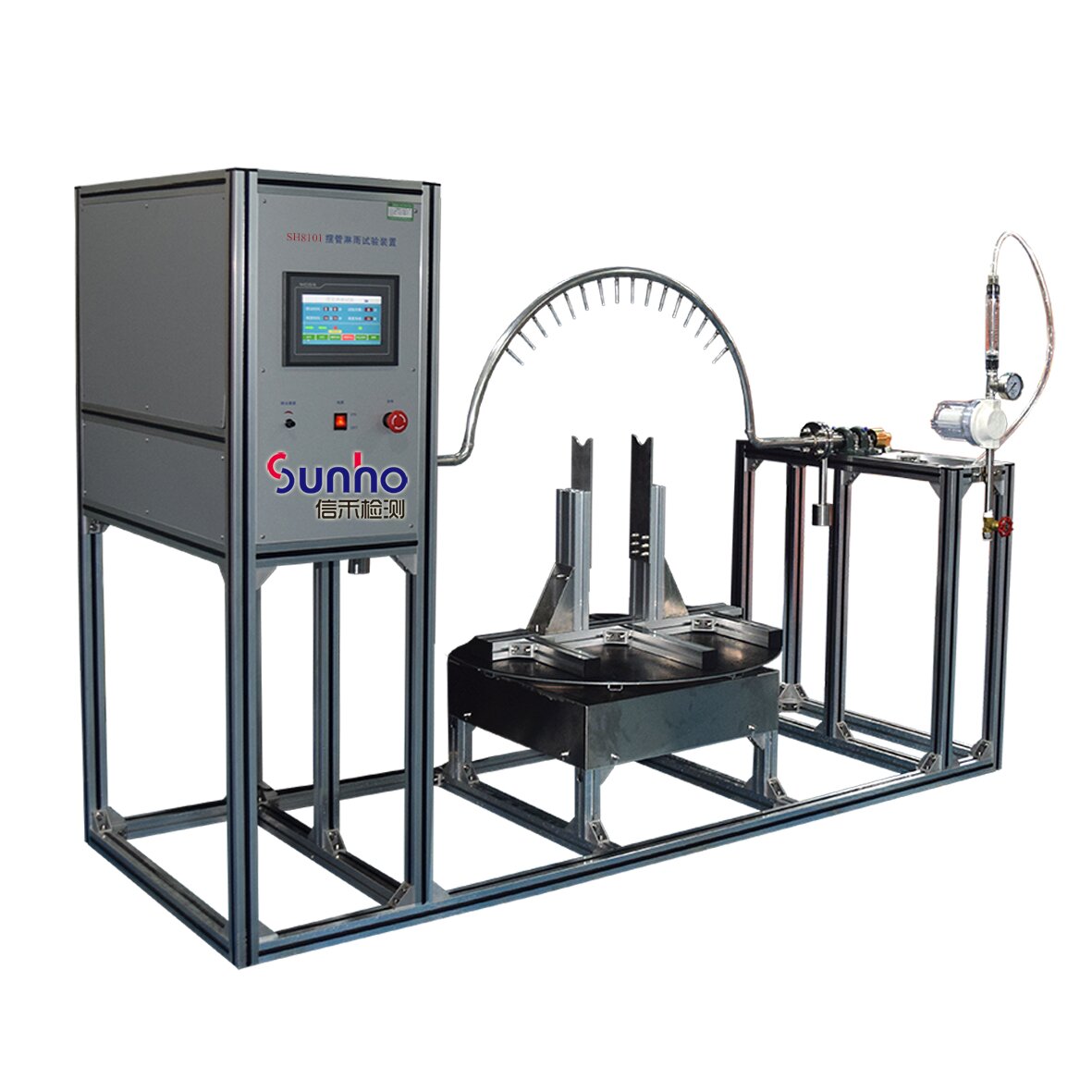

IPX3/IPX4 Oscillating Water Spraying Tester
Material	Frame	Aluminum profile
	Water Contact Components	SUS304 stainless steel
Oscillating Tube	Radius	0.2m/0.4m/0.6m/0.8m/1.0m/1.2m/1.4m/1.6m
	Height Range	600-1200mm (tubeto turntable)
	TestDuration	1s~99min59s
	Oscillation Speed	3°/s-90°/s
	Oscillation Angle	15°-180°
	Spray Needle	#6 needle (pluggable)
	SprayHole	Φ0.4mm
	Spray-Hole Interval	50mm
Turntable	Dimension(optional)	Φ300mm/φ600mm
	Max. Sample Weight	30kg/100kg
	Rotation Speed	1-3r/min
WaterSupply	Water Pressure	50-500kPa
	Electronic Flowmeter	0-10L/min (error±1%)
	Control System	Variable fRequency cOntrol(VFC)
	Water Treatment	Water filtration system
