Feature: | Bridge Crane |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year |
Certification: | CE ISO EAC |
Condition: | New |
Feature: | High efficient |
Model Number: | KSSL |
Brand Name: | Kuangyuan |
Place of Origin: | China (Mainland) |
Span: | 7m-31.5m |
Max. Lifting Height: | 30m |
Max. Lifting Load: | 25 Ton |
Rated Lifting Moment: | 250KN |
Rated Loading Capacity: | 25 Ton |
Application: | workshop |
Name: | European overhead crane |
Lifting mechanism: | European Open winch trolley |
Lifting speed: | 0.8/5m/min |
Material: | Q235 & Q345 |
Cross speed: | 2~20m/min |
Control: | Cabin control/remote control |
Electrical parts: | Schneider |
Lifting motor: | ABM Brand |
Traveling motor: | SEW Brand |
Traveling speed: | 2~20m/min |
Quick Details
Specifications

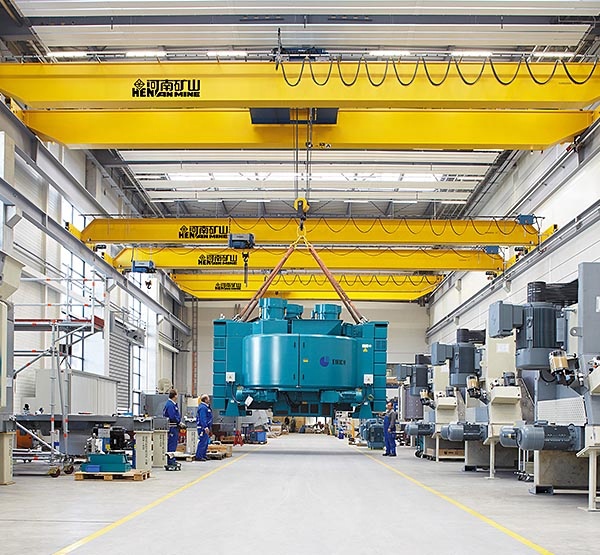

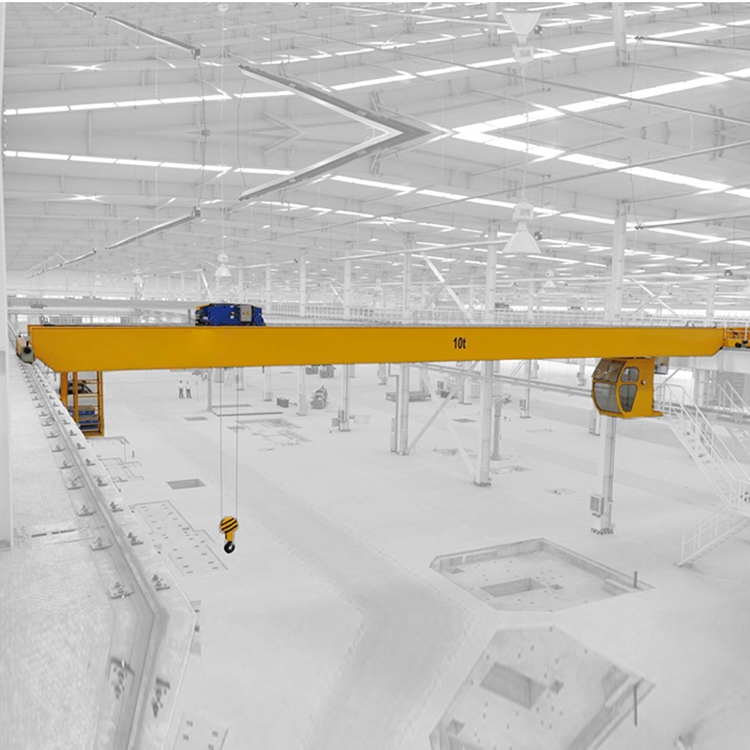

50 ton Steel Factory European Double Girder Beam Overhead Bridge Crane for sale
European Double Girder Overhead Crane Is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required. as the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Features of European double girder overhead crane:
1) New cranes have small dimension, light dead weight, Compared with traditional cranes.
2) Low headroom, save space, increases effective working space of workplace.
3) Saves start investment for new plant .the saved space can for long-term heating, air conditioning and other maintenance free.
4) A variety of patterns meet customers'needs.
5) Sub-assembly characteristic are tested before assembly.
6) Emergency stop system, current over-load protection system, excellent exchange ability for parts and components.
7) Saves electricity specifications.
Item |
Single girder european overhead crane |
Double girder european overhead crane |
Loading capacity |
5 ~ 320t | |
Lifting height |
3 ~ 30 m or customized | |
Lifting speed |
Variable frequency speed, it varies with the lifting capacity. | |
Span |
10.5~31.5 m | |
Lifting mechanism |
European hoist |
European winch trolley |
Working class |
A5 ~ A8 | |
Working temperature |
-20~+40℃ | |
Power supply |
AC-3Phase-220/230380/400/415/440V-50/60Hz | |
Control voltage |
DC-36 / 48V | |
Motor protection class |
IP54 IP55 IP65 | |
Control way |
Cabin, wireless remote, pendant push button. | |
Application area |
Factory,workshop,warehouse,power station,logstic,etc. |
1.Light Dead Weight
2.Small Occupied Space
3.High Working Performance
4.Easy Operation
5.Safe and Reliable
