| Feature: | Gantry Crane |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Brand Name: | Kuangyuan |
| Condition: | New |
| Feature: | High efficient |
| Certification: | CE ISO EAC |
| Model Number: | RMG |
| Place of Origin: | China (Mainland) |
| Span: | 7m-31.5m |
| Max. Lifting Height: | 30m |
| Max. Lifting Load: | 45ton |
| Rated Lifting Moment: | 450KN |
| Rated Loading Capacity: | 45 ton |
| Application: | port |
| Name: | Rail mounted double beam gantry crane |
| Lifting mechanism: | Open winch trolley |
| Lifting speed: | Clients' Requirments |
| Material: | Q235 & Q345 |
| Protection class: | IP54 |
| Color: | Customized |
| Electrical parts: | Schneider |
| Warranty: | 1 year |
| Working duty: | M5~M8 (ISO) |
| Standard: | DIN/FEM/GB |
Quick Details
Specifications

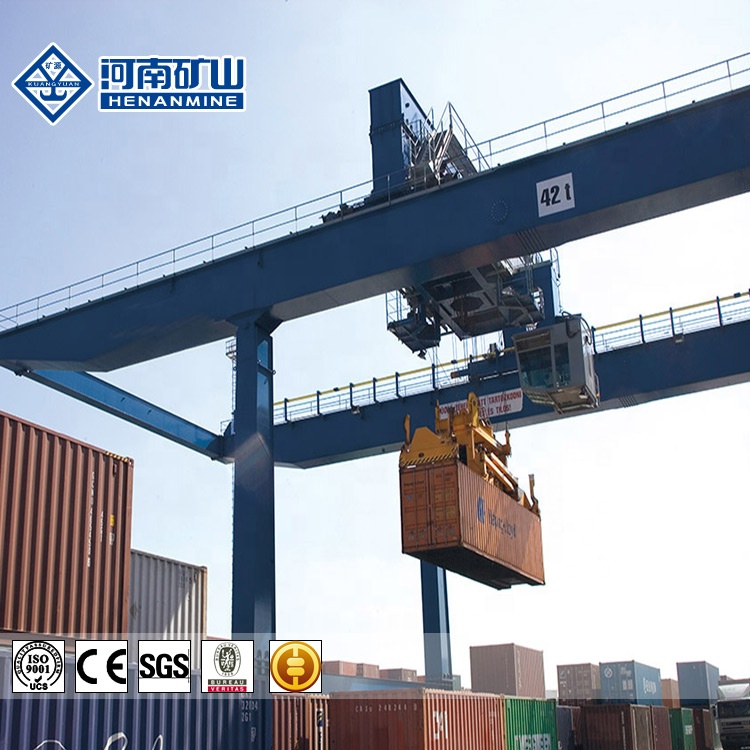

Container yard Electric double girder RMG container Crane
Feature
1. Heavy duty of M6~M8 (ISO), heavy duty;
2. Special design for lifting container;
3. Speed controlled by frequency inverter;
4. PLC control supported;
5. Monitor cameras for all mechanisms;
6. Upper rotatory trolley.
7. Working temperature from -40~40 C;
8. Electrical parts will be Schneider/Siemens;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
10. All-weather working condition.
Feature
1. Heavy duty of M6~M8 (ISO), heavy duty;
2. Special design for lifting container;
3. Speed controlled by frequency inverter;
4. PLC control supported;
5. Monitor cameras for all mechanisms;
6. Upper rotatory trolley.
7. Working temperature from -40~40 C;
8. Electrical parts will be Schneider/Siemens;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
10. All-weather working condition.
