| Type: | water filter |
|---|---|
| Brand Name: | NT |
| Capacity: | 20m3/h |
| Negative Pressure: | 2 |
| Machine name: | rotary drum filter |
| Model Number: | NTR-20 |
| MODEL: | TPR-20 |
| Capacity: | 20m3/h |
| material: | SS304 SS316 |
| shell material: | SS304 SS316 |
Quick Details
Specifications
Introduction

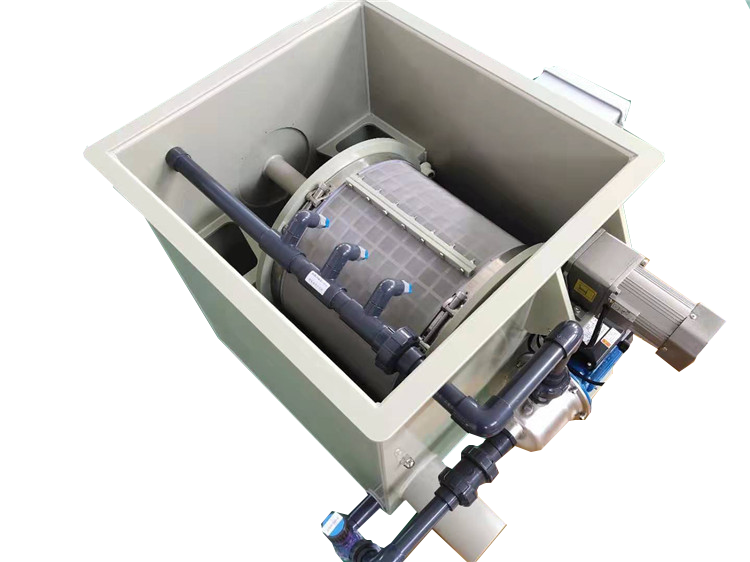

the Rotary drum filter mainly filters out plankton, residual bait feces and other substances in the fish pond through a certain precision net (50-120 microns). The microcomputer PLC and sensors automatically control sewage and flushing, which can effectively intercept and clean the aquaculture water. The solid particles and jelly are more than 75%, which reduces the conformity of subsequent biological treatment and improves the efficiency of water treatment.
MAin Features
1.Easy to clean, long service life.
2.Filtration accuracy: 30-120um.
3. the professionally designed backwash system can clean more than 98% of the intercepted solid particles.
Specifications
Model |
Flow rate(m3) |
Drum diameter(mm) |
(kW) |
Material |
NTR-10 |
10 |
280 |
0.75 |
PP |
NTR-20 |
20 |
350 |
0.75 |
PP |
NTR-40 |
40 |
500 |
0.75 |
PP |
NTR-60 |
60 |
600 |
1.1 |
PP |
NTR-80 |
80 |
800 |
1.1 |
PP |
NTR-100 |
100 |
800 |
1.5 |
PP |
