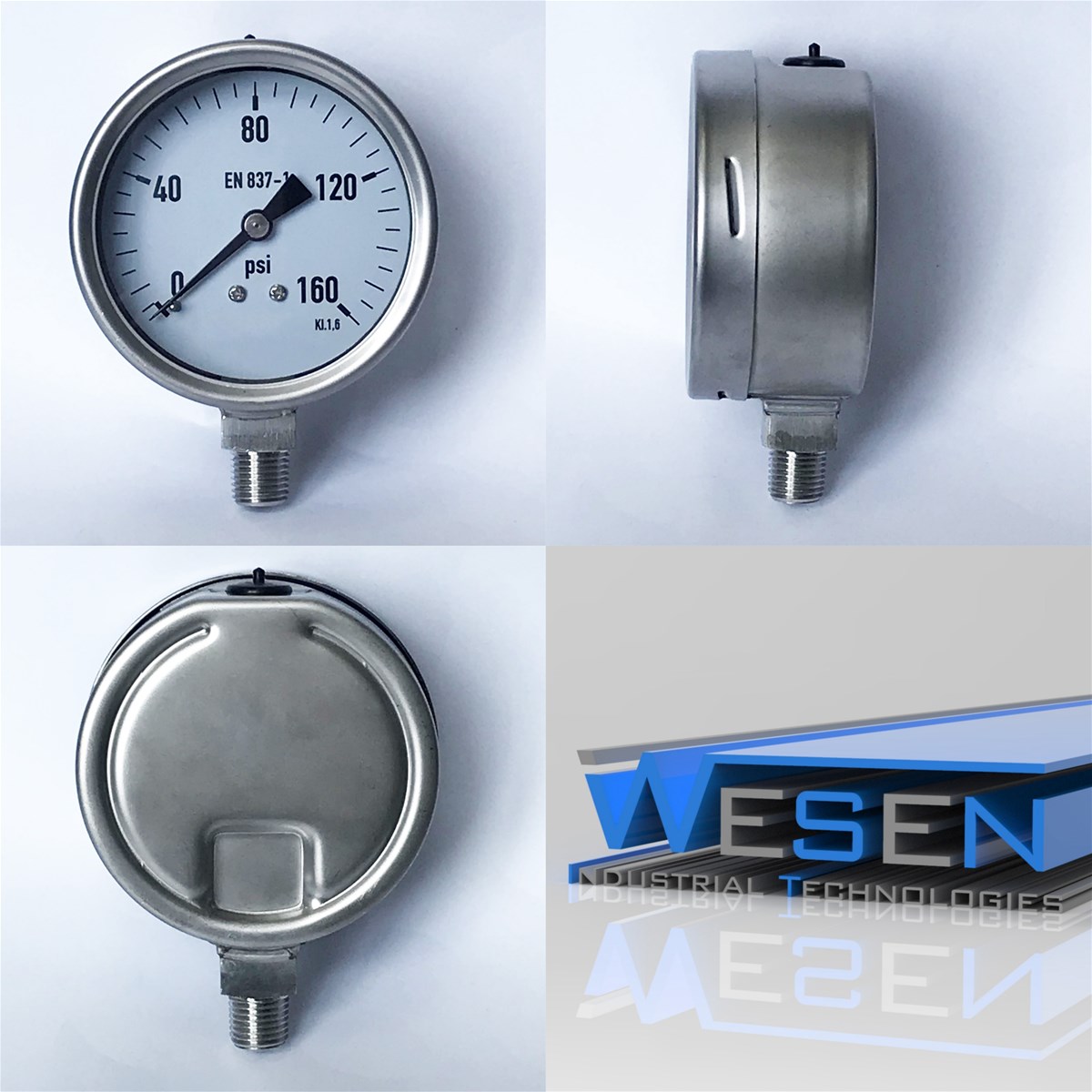

Design
ASME B40.100 & EN 837-1

Sizes
4" (115 mm)

Accuracy class
± 0.5% of span (ASME B40.100 Grade 2A)

Ranges
Vacuum / Compound to 200 psi (16 bar)
Pressure from 0/15 (1 bar) to 0/15,000 psi (1,000 bar)
or other equivalent units of pressure or vacuum

Working pressure
Steady: full-scale value
Fluctuating: 0.9x full-scale value
Short time: 1.3x full-scale value

Operating temperature
Ambient: -40°F to +140°F (-40°C to +60°C) - dry
-4°F to +140°F (-20°C to +60°C) - glycerine-filled
-40°F to +140°F (-40°C to +60°C) - silicone-filled

Medium: +392°F (+200°C) maximum - dry
+212°F (+100°C) maximum - liquid-filled

Temperature error
Additional error when temperature changes from reference temperature of +68°F (+20°C) ±0.4% of span for every 18°F (10°K) rising or falling

Weather protection
Weather tight (NEMA 4X / IP65)

Pressure connection
Material: 316L stainless steel
Lower mount (LM) or lower back mount (LBM)
" NPT (other connections available)

Bourdon tube
Material: 316 stainless steel
>1,000 PSI (100 bar): C-shape,
≤1,500 PSI (100 bar): Helical

Movement
Stainless steel

Dial
White aluminum with black lettering

Pointer
Black aluminum, adjustable
