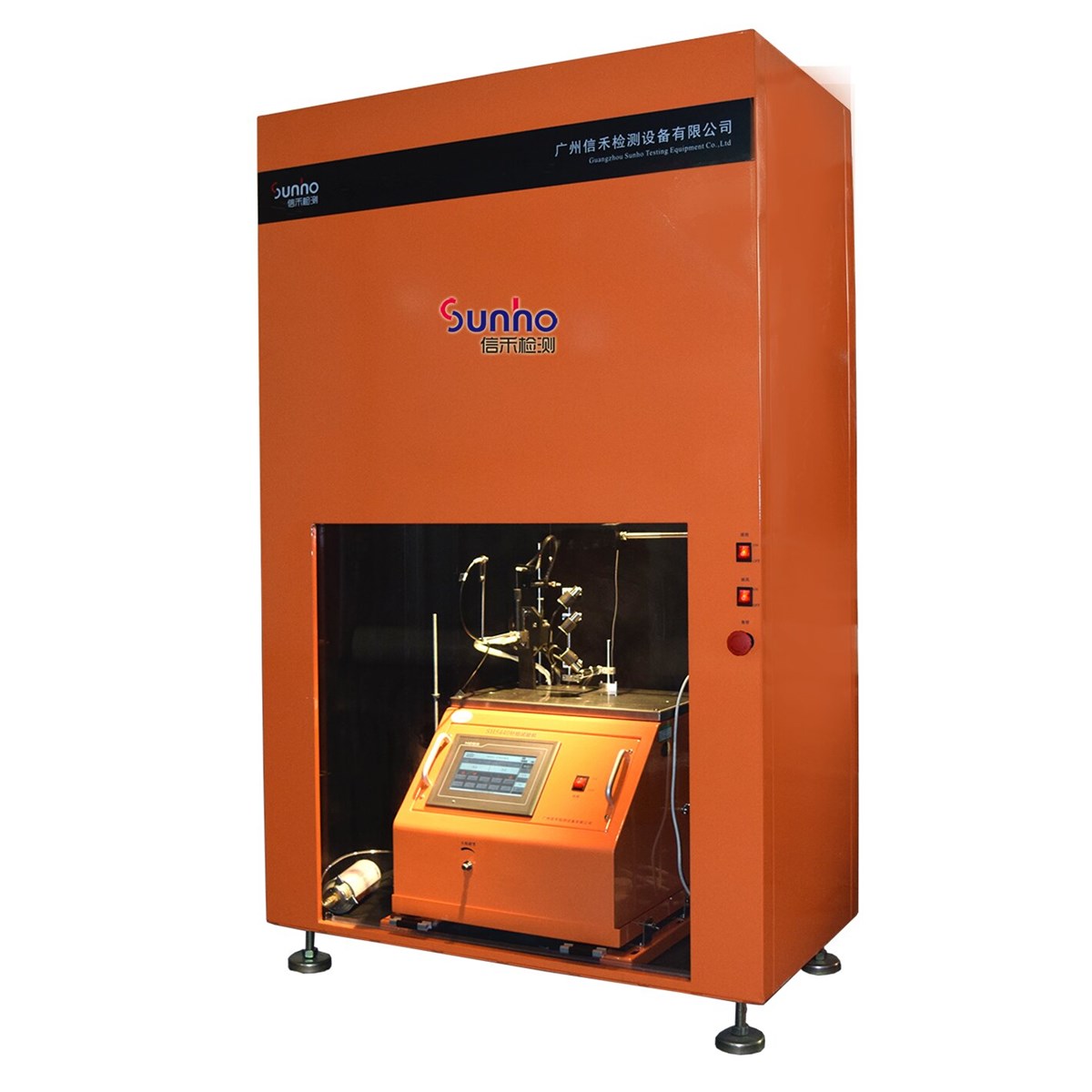

SH5441 Needle Flame Tester is designed according to the relevant clauses of IEC60695-11-5. It conducts fire hazard test on electric/electronic products through the needle-flame.


Main Advantages

1. AI Flame Detecting&Timing
2. AI Sample Following
3. Flame Height Adjustable
4. Flame Power Confirmation Device

Technical details

AI Needle Flame Tester
STructure		Test apparatus+fume hood
Display& Control		7-inch color screen+PLC
Sample Holder		Height adjuStable
Burner	Bore Diameter	Φ0.5mm
	External Diameter	Φ0.9mm
	Tube Length	≥35mm
	Flame Height Adjustment	12±1mm (regulated byvalve)
	Gas Source(user-prepare)	≥99.9% Bustane
	Pre-Test Positioning	byAI sample follower

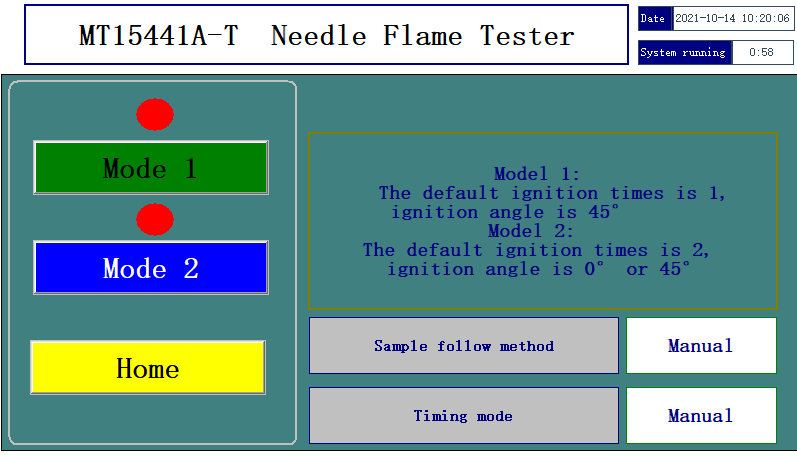

Testing	Testing Mode	2 standard modes available
	FlameApplication Time	0-999.9s preset
	Timing Mode	Auto/Manual
	Sample Following Mode	Auto/Manual
	Ignition Angle	0°/45°
Accessories		10mm thick pine board
		silk layer
		Flame height gauge
		tray
Flame ConfirMation System		φ5 sHeathed thermocouples (K-type)
		Copper block
		Temp. Measurement range: 100℃±5℃~700℃±3℃
FUme Hood	Volume	≥0.75
	Outside	Anti-static paint
	Inwall	Matte black(≤20lux)
Protection		over-temp. Protection (explosion proof)
