| Brand Name: | Viair |
|---|---|
| Lubrication Style: | Oil-less |
| Configuration: | Portable |
| Type: | Piston |
| Condition: | New |
| Weight: | 3.55 Lbs. |
| Dimension(L*W*H): | 6.35*3.3*4.9 |
| Voltage: | 12-Volt |
| Model Number: | P/N 10014--130 PSI / 1.27 CFM |
| Place of Origin: | American Samoa |
| Power Source: | DC Power |
Quick Details
Specifications
Product Description
VIAIR's 100 Series comes with a 1.5 ft. Stainless steel braided leader hose with 1/4" NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries

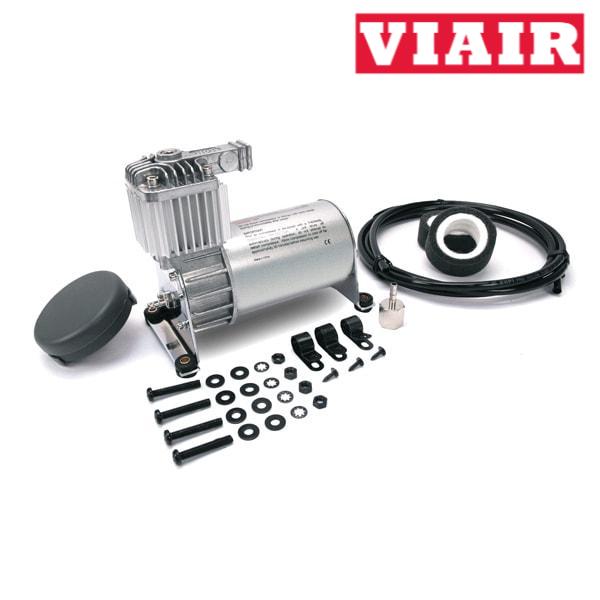

FEATURES
- Thermal Overload Protector
- Vibration Isolators
- Mounting Hardware
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

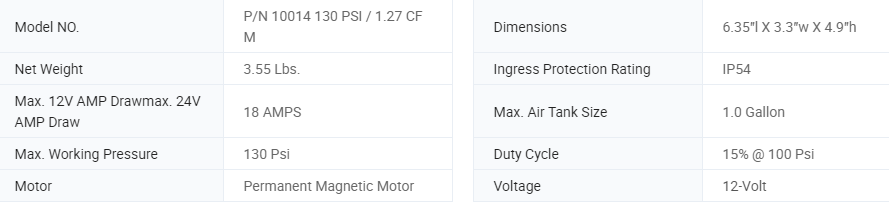

SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. 12V Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- Dimensions: 6.35L x 3.3W x 4.9H
- Net Weight: 3.55 lbs.
RECOMMENDED COMPONENTS
- 0.5 Gallon Tank (P/N 91005)
- 1.0 Gallon Tank (P/N 91010, 91014)
- 12V Relay (P/N 93940)
- Pressure Switches (P/N 90100, 90101)
- Pressure Switches with Relay (P/N 90110, 90113)
- Leader Hose without Check Valve (P/N 92801)
- Leader Hose with Check Valve (P/N 92807)
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
WARNING:
this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
VIAIR's 100 Series comes with a 1.5 ft. Stainless steel braided leader hose with 1/4" NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries
FEATURES
- Thermal Overload Protector
- Vibration Isolators
- Mounting Hardware
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. 12V Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- Dimensions: 6.35L x 3.3W x 4.9H
- Net Weight: 3.55 lbs.
RECOMMENDED COMPONENTS
- 0.5 Gallon Tank (P/N 91005)
- 1.0 Gallon Tank (P/N 91010, 91014)
- 12V Relay (P/N 93940)
- Pressure Switches (P/N 90100, 90101)
- Pressure Switches with Relay (P/N 90110, 90113)
- Leader Hose without Check Valve (P/N 92801)
- Leader Hose with Check Valve (P/N 92807)
* for 12V Only.
Please Note:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.27 | 9 | 0 | 36.0 | 9 |
| 10 | 0.90 | 10 | 1.0 | 25.0 | 10 |
| 20 | 0.85 | 11 | 2.0 | 22.5 | 11 |
| 30 | 0.79 | 11 | 3.0 | 21.0 | 12 |
| 40 | 0.76 | 12 | 4.0 | 20.0 | 13 |
| 50 | 0.72 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.71 | 13 | 6.0 | 17.0 | 12 |
| 70 | 0.67 | 13 | 7.0 | 15.0 | 12 |
| 80 | 0.64 | 12 | 8.0 | 13.7 | 12 |
| 90 | 0.59 | 12 | 9.0 | 12.3 | 12 |
| 100 | 0.55 | 12 | |||
| 110 | 0.52 | 12 | |||
| 120 | 0.48 | 12 | |||
| 130 | 0.45 | 12 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 10 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 00 sec. (± 05 sec.) |
| 90 to 120 PSI | 17 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 00 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
