| Brand Name: | Viair |
|---|---|
| Lubrication Style: | Oil-less |
| Configuration: | Portable |
| Type: | Piston |
| Condition: | New |
| Weight: | 8.65 lbs |
| Dimension(L*W*H): | 8*4*6.75 |
| Voltage: | 12-Volt / 24-Volt |
| Model Number: | P/N 40040 -- 150 PSI / 2.62 CFM (12V) |
| Place of Origin: | United States |
| Power Source: | DC Power |
Quick Details
Specifications
Product Description

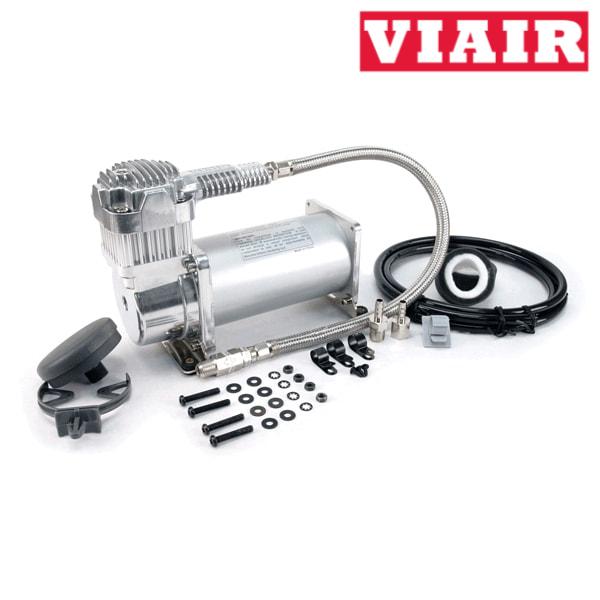

400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM/12V and 2.33 CFM/24V flow at zero PSI head pressure. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries
FEATURES
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
SPECIFICATIONS
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 32 Amps
- Max. 24V Amp Draw: 15 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9L x 4W x 6.75H
- Net Weight: 8.65 lbs.
RECOMMENDED COMPONENTS
- 0.5 Gallon Tank (P/N 91005)
- 1.0 Gallon Tank (P/N 91010)
- 2.0 Gallon Tank (P/N 91022)
- 2.5 Gallon Tank (P/N 91025)
- 5.0 Gallon Tank (P/N 91050)
- Sealed Relays (P/N 93943, 93944*, 93949)
- Pressure Switches (P/N 90100, 90101, 90102)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
WARNING:
this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM/12V and 2.33 CFM/24V flow at zero PSI head pressure. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries
FEATURES
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
SPECIFICATIONS
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 32 Amps
- Max. 24V Amp Draw: 15 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9L x 4W x 6.75H
- Net Weight: 8.65 lbs.
RECOMMENDED COMPONENTS
- 0.5 Gallon Tank (P/N 91005)
- 1.0 Gallon Tank (P/N 91010)
- 2.0 Gallon Tank (P/N 91022)
- 2.5 Gallon Tank (P/N 91025)
- 5.0 Gallon Tank (P/N 91050)
- Sealed Relays (P/N 93943, 93944*, 93949)
- Pressure Switches (P/N 90100, 90101, 90102)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
* for 12V Only.
Please Note:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| 12-VOLT | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 24-VOLT | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.33 | 7 | 0 | 66.0 | 7 |
| 10 | 2.26 | 8 | 1.0 | 63.3 | 9 |
| 20 | 2.20 | 10 | 2.0 | 60.8 | 10 |
| 30 | 2.14 | 10 | 3.0 | 57.0 | 11 |
| 40 | 2.04 | 11 | 4.0 | 53.0 | 12 |
| 50 | 1.94 | 12 | 5.0 | 48.3 | 12 |
| 60 | 1.86 | 12 | 6.0 | 45.7 | 12 |
| 70 | 1.74 | 12 | 7.0 | 40.5 | 12 |
| 80 | 1.70 | 12 | 8.0 | 38.2 | 12 |
| 90 | 1.59 | 12 | 9.0 | 34.6 | 12 |
| 100 | 1.50 | 12 | 10.0 | 32.0 | 12 |
| 110 | 1.40 | 12 | 11.0 | 29.0 | 11 |
| 120 | 1.31 | 12 | 12.0 | 25.5 | 11 |
| 130 | 1.24 | 12 | 13.0 | 23.3 | 10 |
| 140 | 1.17 | 12 | |||
| 150 | 1.10 | 12 |
* Supply Voltage: 28.0 Volts
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
FILL RATES
| 12-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 27 sec. (± 05 sec.) |
| 110 to 145 PSI | 55 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
| 24-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 24 sec. (± 05 sec.) |
| 85 to 105 PSI | 20 sec. (± 03 sec.) |
| 0 to 145 PSI | 2 min. 16 sec. (± 05 sec.) |
| 110 to 145 PSI | 47 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 38 sec. (± 10 sec.) |
| 85 to 105 PSI | 38 sec. (± 03 sec.) |
| 0 to 145 PSI | 4 min. 08 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 20 sec. (± 05 sec.) |
