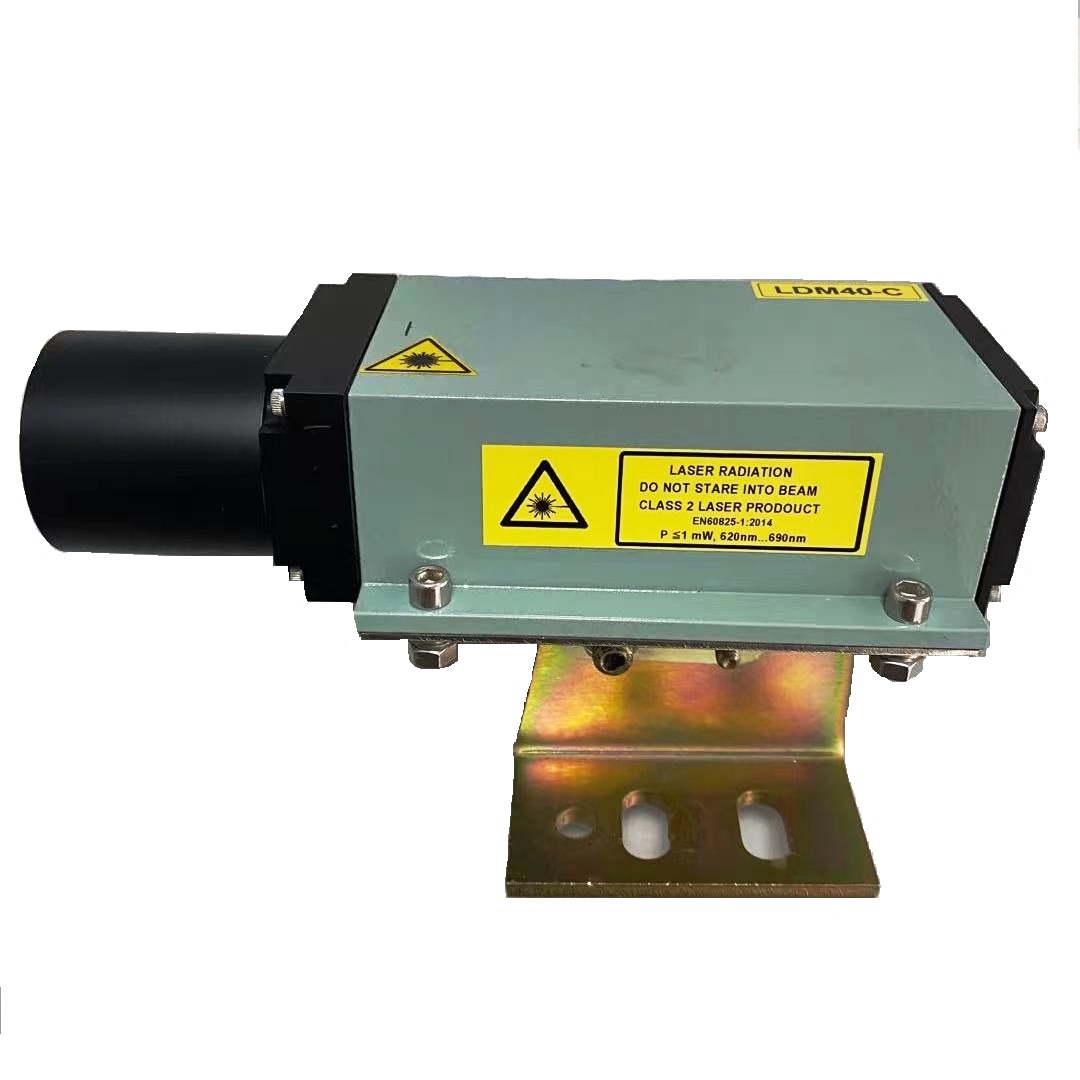

MSE-D40N Laser Distance Sensor
Key Features
in the harsh outdoor environment, it can still maintain high measurement accuracy and reliability
Stable power consumption, low power consumption (when there is no current alarm, power consumption <3W)
Use red visible laser beam, diffuse reflection measurement, easy to aim at the measured object
Measuring distance can reach 130m (white wall), reflector can be selected according to requirements
with a variety of optional interfaces: serial interface, analog output and switch output interface
the switch output and analog output range can be programmed
Industrial-grade shell, shock and wear resistance volume up content copy share
Working Principle
the MSE-D40N laser ranging sensor emits visible laser beams of different frequencies, and then receives the diffuse reflection laser returned from the measured object, compares the received laser signal with the reference signal, and finally calculates the corresponding The distance between objects can reach the measurement accuracy of mm.
the measurement process can be triggered in the following different ways:
Manual trigger using PC software
Use the parameter setting in the auto start command to automatically trigger
Continuous trigger by selecting distance tracking mode
Technical Data
Application |
Distance measurement of fixed or moving objects |
Measuring range 1) |
0.1~35m (surface of natural objects), up to 130m (white wall), reflector can be selected according to needs |
Measurement uncertainty |
±1mm,+10... 30°C / ±3mm,-20....50°C(Within 30m distance) |
Resolution |
0.1mm |
Repeatability |
±0.5mm |
Measuring frequency |
≤ 20 Hz |
Measuring laser |
Red laser, wavelength 620nm ~ 690nm |
Laser class |
Class 2,in line with DIN EN 60825-1:2001-11(EC825-1),≤1mW |
Ambient temperature |
-10°C ~ +50°C , -20°C ~ +50°C (with heating function, need to be customized) |
Storage temperature |
-20°C ~ 60°C ( Relative air humidity <70%) |
Data interface |
RS232 (or RS422 needs to be customized), baud rate 9600, ASCII format 8n1 |
Analog output |
Programmable measurement range, 4~20mA, load impedance ≤ 500Ω |
Switching outputs |
Programmable switch output (center point and hysteresis range), with load capacity 0.5A |
Supply voltage and power consumption |
10V ~ 30VDC, power consumption: <1.5W during standby, <3W during measurement, heating type power is 28W |
Size(with cable connector) |
300 96 50mm(LWH) |
Mounting hole size |
100 x 85mm, 4xM6 |
Weight |
about 880g |
Protection standard |
IP65,Aluminum shell |
Scope of supply |
Sensor (with pin socket), 2m cable with female plug, user manual and USB flash drive |
Optional |
Cooling jacket, junction box, cables of different lengths, optical filter |
