| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | ANNHUNG |
| Light Source: | LED |
| Emitting Color: | Red |
| IP Rating: | IP66 |
| Type: | Medium-intensity |
| Model Number: | AH-MI-B2 |
| Place of Origin: | China (Mainland) |
| Base Type: | R7S |
| Lamp Body Material: | Aluminum |
| Beam Angle(°): | 360 |
| Color Temperature(CCT): | |
| Lamp Power(W): | 5 |
| Input Voltage(V): | 110-240V |
Quick Details
Specifications

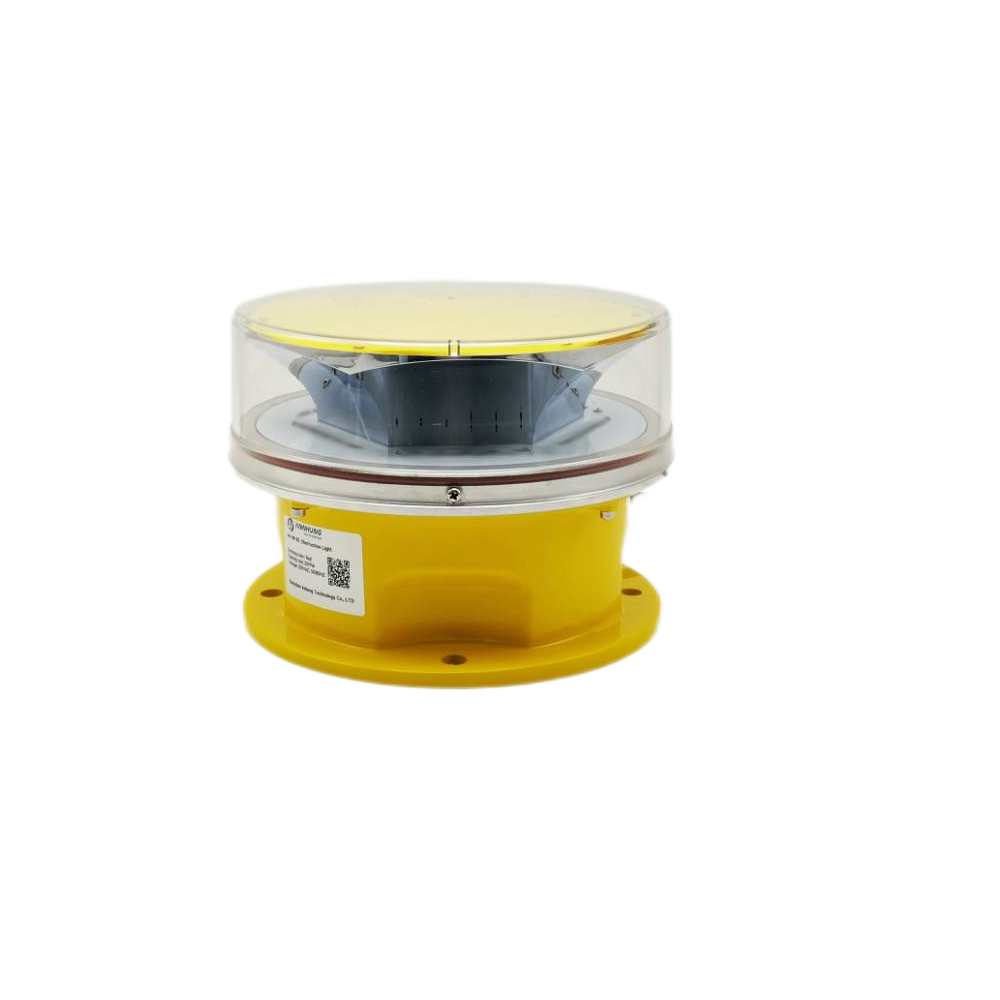

LED Aviation Obstruction Light Type B Medium-intensity 20-60FPM Used Alone
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA L-864
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
UV protection Powder coated bright yellow color base make better visibility
Special vent installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high, to avoid the High pressure steam goes inside.
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
Dry contact Alarm output for remote monitoring
Flashing rate(20, 30, 40, 60, Steady mode)
Application
AH-MI-B2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
| Description | Parameter |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Operation Mode | Dusk-to-dawn Automatically as standard |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
| Product Life Expectancy | 10 years Plus |
| Ambient Temperature(℃) | -40~55 |
| Storage temperature(℃) | -55~70 |
| Wind Speed | 240Km/h |
| Options Available | Flashing rate |
| NVG(Night Vision Goggles) compatible LED | |
| Dry contact alarm(NO COM NC) | |
| RS485 communication | |
| Bird deterrent spike | |
| IOT monitoring |
