Product Description
Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

the VIAIR 400C Dual Performance Value Pack is our fastest filling, highest CFM air compressor system, this kit is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit. the 400C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.

VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.

VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.

Why is the Whole World Choosing VIAIR?

- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries

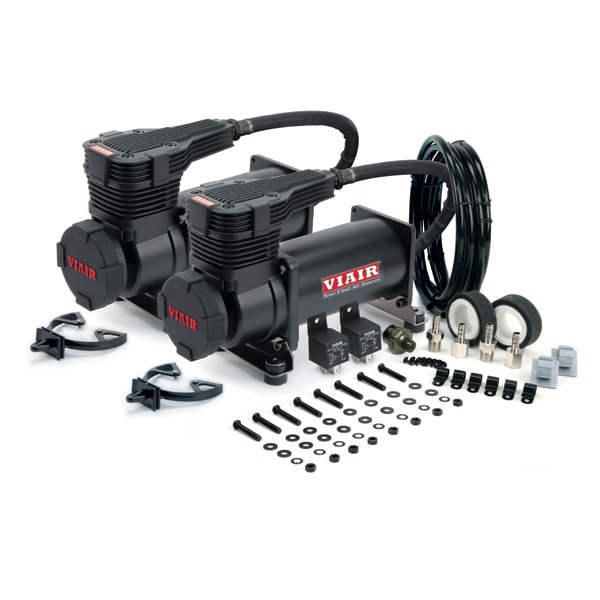

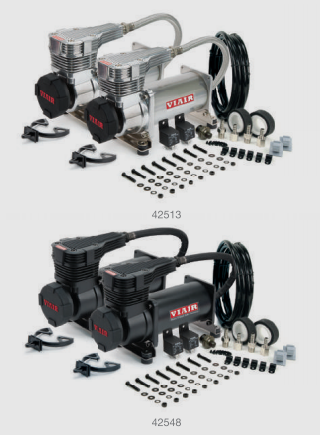

FEATURES

(2) 425C (Platinum or Stealth Black) Compressors
W/Thermal Overload Protectors
Stainless Steel Braided Leader Hose with Inline Check Valve
(2) Air Filter Assemblies
(2) VIAIR Removable Filter Covers
(2) Replacement Air Filter Elements
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
Set of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers, and Lock Washers
(2) Heavy Duty 40-Amp Relays
(1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)
Air Line (for Remote Mount Filter Installation)

SPECIFICATIONS

12-Volt
Permanent Magnetic Motor
Duty Cycle: 50% @ 100 PSI
Duty Cycle: 33% @ 175 PSI
Max. Working Pressure: 175 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 60 Amps
Ingress Protection Rating: IP67
Dimensions: 9.25L x 4.14W x 6.59H
Net Weight: 11.10 lbs.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.

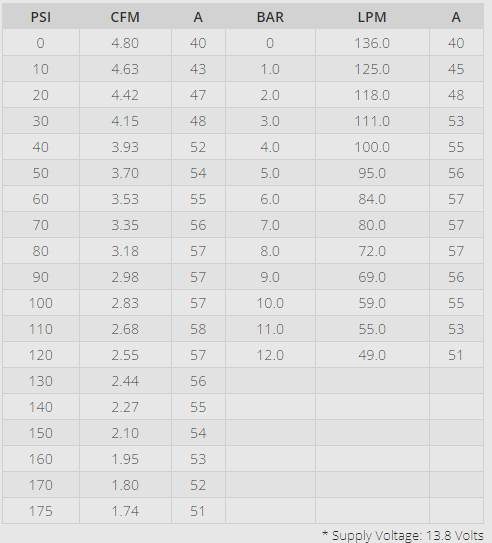

PERFORMANCE DATA

FILL RATES



WARNING:
this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
