| Rated Power: | 150KVA / 120KW |
|---|---|
| Frequency: | 50HZ/60HZ |
| Speed: | 1500rpm/1800rpm |
| Output Type: | AC Three Phase |
| Brand Name: | Cummins |
| Rated Voltage: | 400/230V, 220/127V |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
3 phase 400V 120kw 150kva Cummins diesel generator set specification
Supply scope
Photos of 150kva Cummins generator
| Diesel genset | MODEL | UC150GFS |
| Standby Power | 132KW/165KVA | |
| Prime Power | 120KW/150KVA | |
| Size (silent type) | 2950(mm)*1050(mm)*1900 (mm) | |
| Weight | 1760kg | |
| Diesel engine | Manufacturer /Model | Cummins 6BTAA5.9-G2 |
| Air intake System | Turbocharger &Charge Air Cooled | |
| Fuel System | BYC PB/Electronic Governor | |
| Cylinder Arrangement | 6 in LINE | |
| Displacement | 5.9L | |
| Bore and Stroke | 102*120 (MM) | |
| Compression Ratio | 17.3:1 | |
| Rated RPM | 1500rpm | |
| Prime power at rated RPM | 120KW | |
| Max standby Power at Rated RPM | 132KW | |
| Governor Type | Electric | |
| Frequency Regulation,Steady State | <±0.5% | |
| Oil capacity | 16.4L | |
| Rated fuel consumption | 201g/kw.H | |
| Alternator | Manufacture /Type | 274E |
| Number of Phase | Three | |
| Number of Bearing | one | |
| Power Factor | 0.8 | |
| Protection Grade | IP23 | |
| Exciter Type | Brush less, self-exciting | |
| Insulation Class, Temperature Rise | H/H | |
| Telephone Influence Factor (TIF) | < 50 | |
| Alternator Capacity | 150KVA |
Supply scope
1. Genuine industrial diesel engine, with 12V /24V DC start motor and alternator, with Dry type air filter, fuel filter, oil filter, etc.
2. Radiator 40°C / 50°C max, fans are driven by belt, with safety guard
3. Original Stamford, Leroy Somer, Marathon, Mecc alte, Engga or China alternator, brushless, AC 380V, 400V, 415V, 440V, 220V, 50HZ/60HZ at your choice.
4. Choice of manual/auto start and AMF control panels and protection systems
5. Anti Vibration Suspension absorbers
6. Base frame with 8-hour operation fuel tank
7. Circuit breaker or ATS
8. 10. Start batteries, rack and cable
9. Exhaust pipe, exhaust siphon, flange, and muffler
10. Silent canopy, weatherproof canopy or container type at your choice.

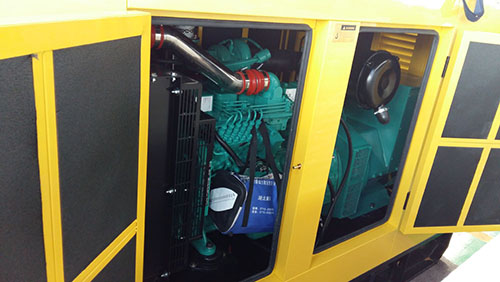

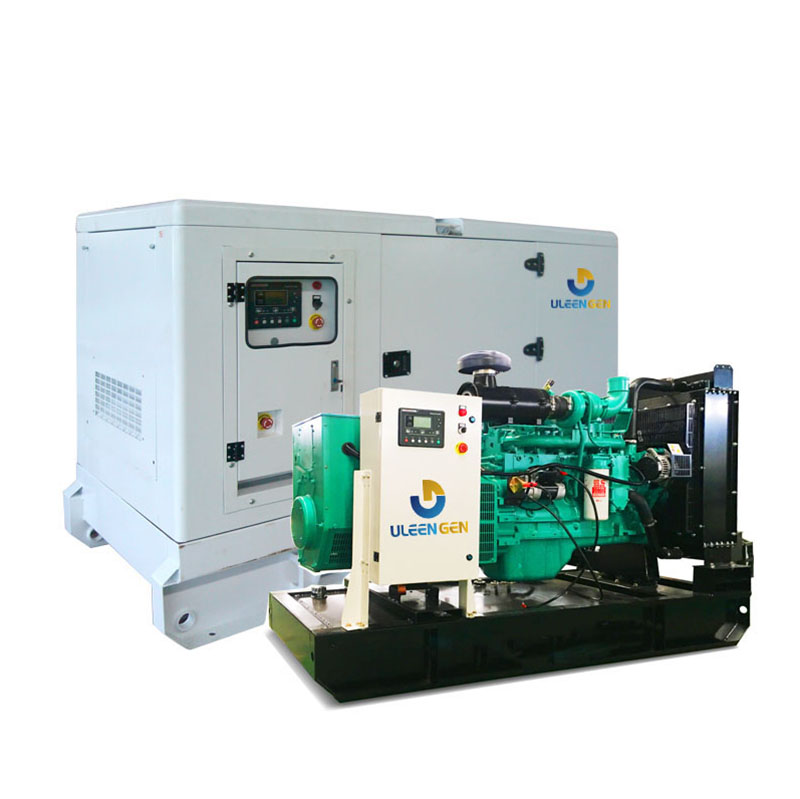

Photos of 150kva Cummins generator
