Rated Power: | 200KVA/160KW |
---|---|
Frequency: | 50HZ/60HZ |
Speed: | 1500rpm/1800rpm |
Output Type: | AC Three Phase |
Brand Name: | Cummins |
Rated Voltage: | 400/230V, 220/127V |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Brand new 200KVA 160KW diesel generator specification
Supply scope
Diesel genset | MODEL | UC200GFS |
Standby Power | 160KW/200KVA | |
Prime Power | 145KW/182KVA | |
Size (silent type) | 3100*1100*2050mm | |
Weight | 2000kg | |
Diesel engine | Manufacturer /Model | Cummins 6CTA8.3-G2 |
Air intake System | Turbocharger &after cooled | |
Fuel System | BYC PB/GAC | |
Cylinder Arrangement | 6 in LINE | |
Displacement | 8.27L | |
Bore and Stroke | 114*135(MM) | |
Compression Ratio | 16.8:1 | |
Rated RPM | 1500rpm | |
Prime power at rated RPM | 163KW | |
Max standby Power at Rated RPM | 179.3KW | |
Governor Type | Electric | |
Frequency Regulation,Steady State | <±0.5% | |
Oil capacity | 27.6L | |
Rated fuel consumption | 202g/kw.H | |
Alternator | Manufacture /Type | 274G |
Number of Phase | Three | |
Number of Bearing | one | |
Power Factor | 0.8 | |
Protection Grade | IP23 | |
Exciter Type | Brush less, self-exciting | |
Insulation Class, Temperature Rise | H/H | |
Telephone Influence Factor (TIF) | < 50 | |
Alternator Capacity | 200KVA |
. Genuine industrial diesel engine, with 24V DC start motor and alternator, with Dry type air filter, fuel filter, oil filter, etc.
2. Radiator 40°C / 50°C max, fans are driven by belt, with safety guard
3. Original Stamford, Leroy Somer, Marathon, Mecc alte, Engga or China alternator, brushless, AC 380V, 400V, 415V, 440V, 220V, 50HZ/60HZ at your choice.
4. Choice of manual/auto start and AMF control panels and protection systems
5. Anti Vibration Suspension absorbers
6. Base frame with 8-hour operation fuel tank
7. Circuit breaker or ATS
8. 10. Start batteries, rack and cable
9. Exhaust pipe, exhaust siphon, flange, and muffler
10. Silent canopy, weatherproof canopy or container type at your choice.

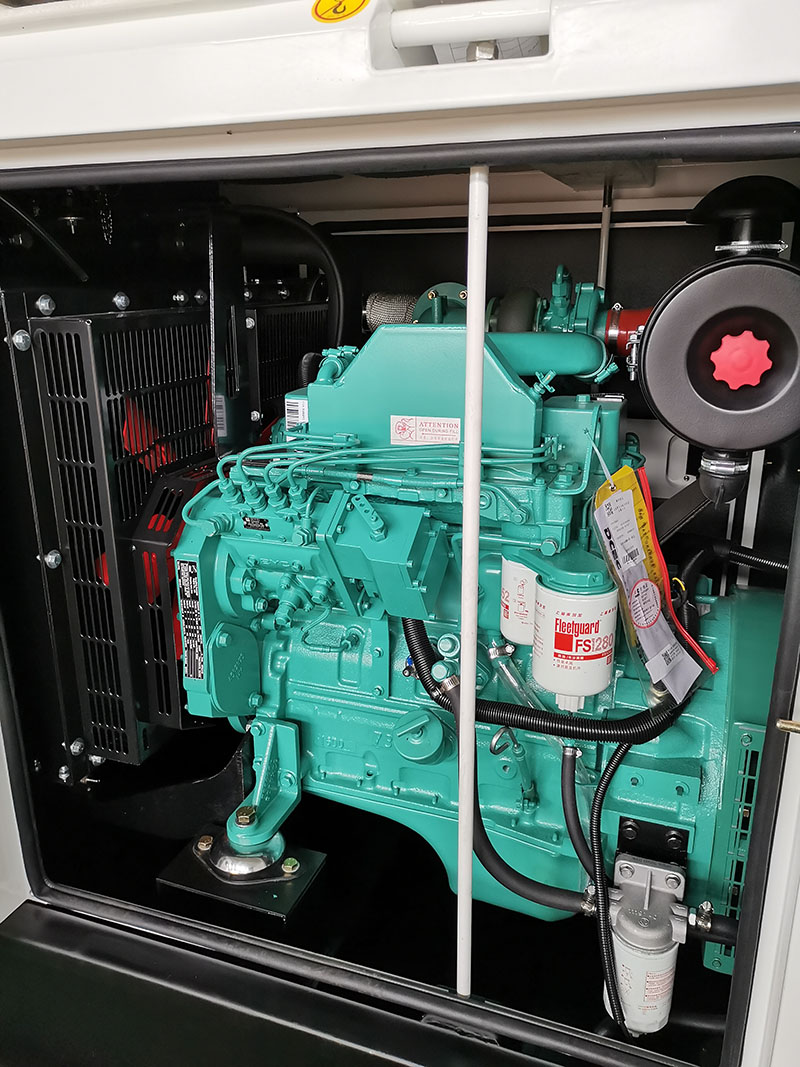

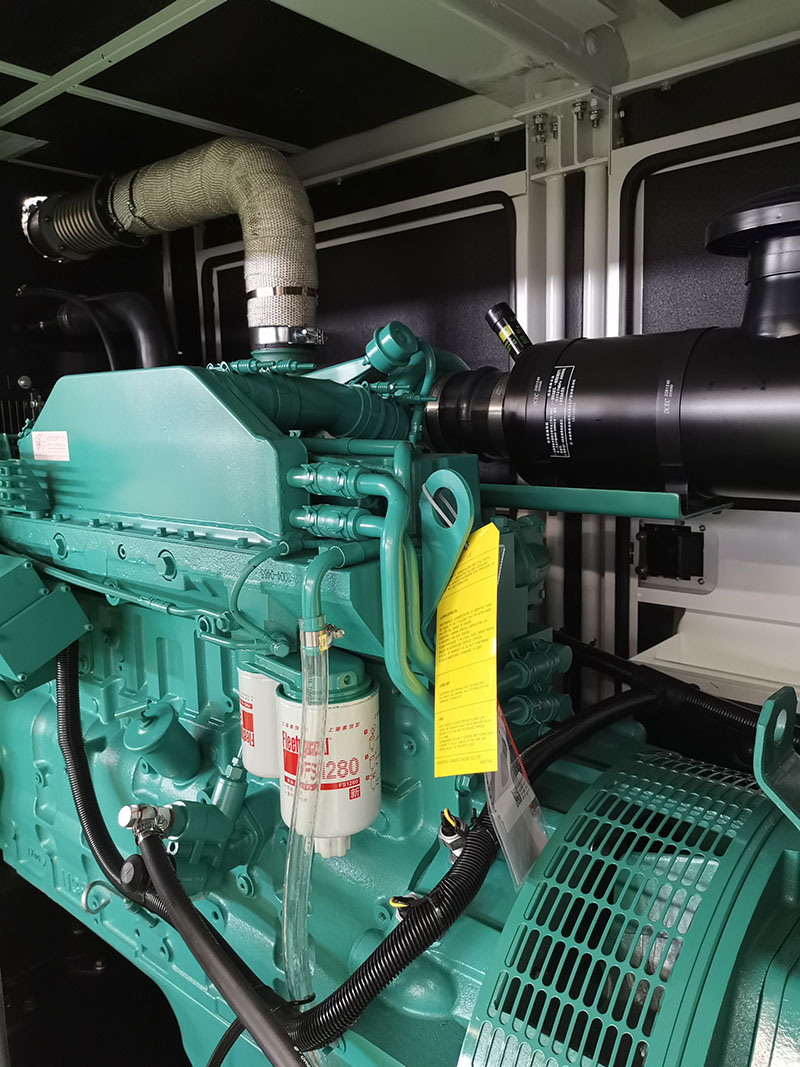

Photos
