300KVA Weichai diesel generator set specification

Diesel genset	MODEL	UW300GFS
	Standby Power(50HZ)	264KW/330KVA
	Prime Power(50HZ)	240KW/300KVA
	Size	3500(mm)*1350(mm)*2180 (mm)
	Weight	3100kg
Diesel engine	Manufacturer /Model	Weichai / WP12D317E200
	Air intake System	Turbocharger, aftercooled
	Cylinder Arrangement	6 L
	Bore and Stroke	126*155(MM)
	Displacement	11.596L
	Rated RPM	1500rpm
	Prime power at rated RPM	288KW
	Max standby Power at Rated RPM	317KW
	Governor Type	Mechanical
	Frequency Regulation,Steady State	<±0.5%
	Rated fuel consumption	202g/kw.H
Alternator	Manufacture /Type	4D
	Number of Phase	Three
	Number of Bearing	one
	Power Factor	0.8
	Protection Grade	IP23
	Exciter Type	Brush less, self-exciting
	Insulation Class, Temperature Rise	H/H
	Telephone Influence Factor (TIF)	< 50
	Alternator Capacity	300KVA

Supply scope

1. Genuine industrial diesel engine, with 12V /24V DC start motor and alternator, with Dry type air filter, fuel filter, oil filter, etc.

2. Radiator 40°C / 50°C max, fans are driven by belt, with safety guard

3. Original Stamford, Leroy Somer, Marathon, Mecc alte, Engga or China alternator, brushless, AC 380V, 400V, 415V, 440V, 220V, 50HZ/60HZ at your choice.

4. Choice of manual/auto start and AMF control panels and protection   systems

5. Anti Vibration Suspension absorbers

6. Base frame with 8-hour operation fuel tank

7. Circuit breaker or ATS

8. 10. Start batteries, rack and cable

9. Exhaust pipe, exhaust siphon, flange, and muffler

10. Silent canopy, weatherproof canopy or container type at your choice.

Silent canopy feature

1. Multiple air inlets/outlets ensure power performance of the genErator.

2. Large composite impedance muffler effectively reduces the genErator noise.

3. Internal high-performance rubber shock absorbers and flexible materials can reduce vibration.

4. Fuel tank at the bottom can enable the genErator to work for 8 hours.

5. Soundproof enclosure is made by cold steel.

6. the best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.

7. Nice appearance and reliable quality.

8. Stainless steel locks and hinges.

9. All-weather operation is available.

10. Fireproof, waterproof and dust-proof

11. High-performance insulation materials can effectively reduce noise.

12. Transparent sight glass allows users to clearly see the content of control panel.

13. Emergency stop button mounted outside the genErator to facilitate emergency operations.

14. Coolant filler is set on the top of the enclosure.

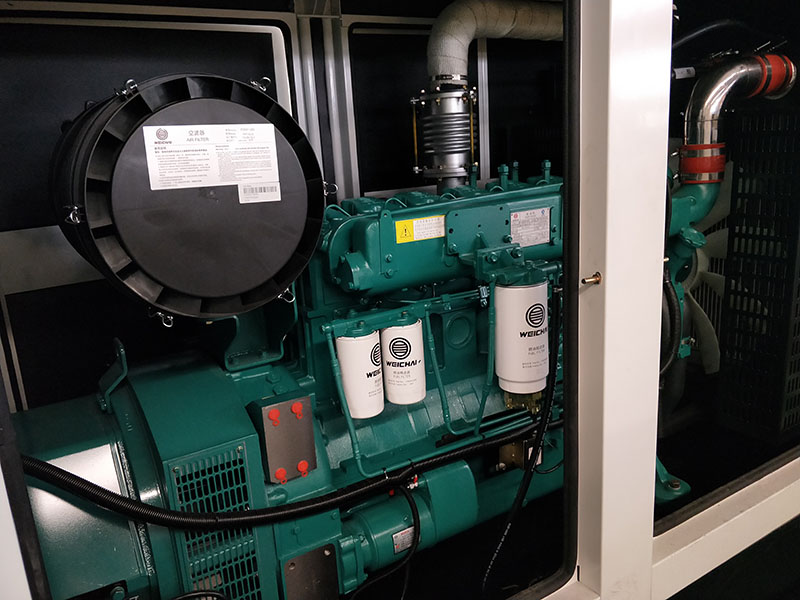

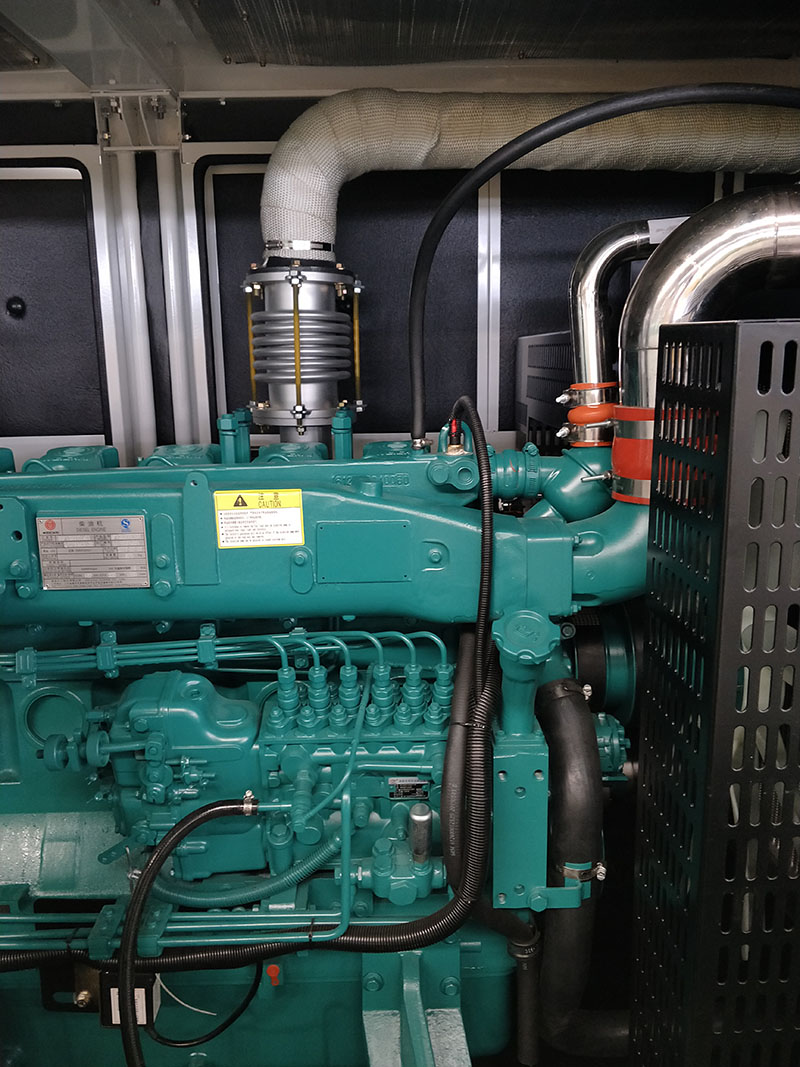

Photos
