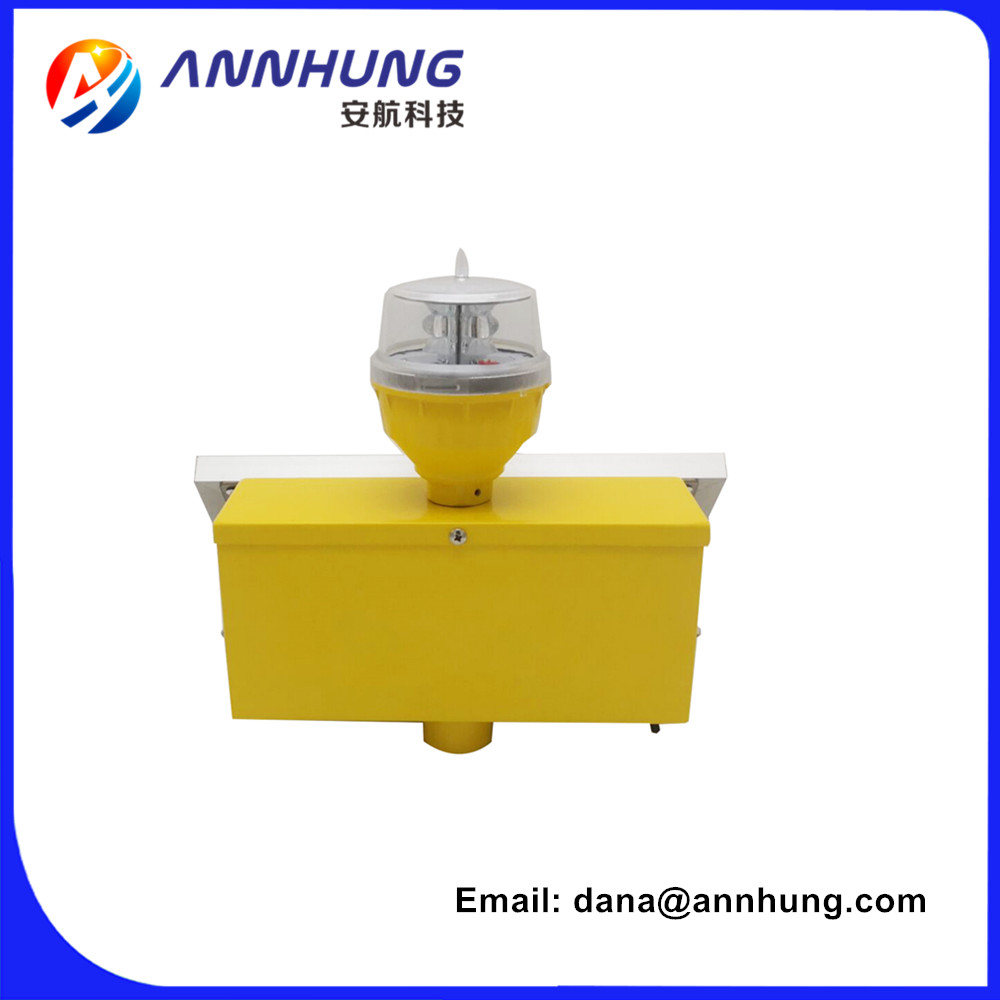

AH-LS-A1 is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.

It is designed for marking top of obstacle that do not exceed 45 meters in height.

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, 6-2 Low Intensity Type A / B /E Obstruction Light

FAA L-810

3 high power CREE LED, make sure LED keep bright while use

with bird needle to prevent bird drop

UV & vibrations protected polycarbonate lens for converging light

Powder coated die casting aluminum base, light fastness, resist snow and rain

Battery box made of corrosion resistant 304 stainless steel

Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

Solar panel vertical degree is adjustable

Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)

on/off button under base make local control easy

Steady/Flashing(20fpm) adjustable switch available

Solar panel angel is adjustable

Surge and lightning protection

Infrared LED for pilot using NVG(Night Vision Goggles)

Stainless steel needle strips for solar panel

AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

Used alone on the top of obstacle which height is less than 45meter
