| Max. Power: | 610 |
|---|---|
| Number of Cells: | 60 |
| Size: | 2172*1303*35mm |
| Material: | Monocrystalline Silicon |
| Brand Name: | Zonergy |
| Model Number: | ZPM590~610MH8-60 |
| Place of Origin: | China (Mainland) |
| Cell size: | 210mmx210mm |
| Type: | Half Cell |
| Panel Efficiency: | 21.55% |
| Certificate: | IEC61215-1;IEC61215-2;IEC61730-1;IEC61730-2 |
| Warranty: | 10 years |
| Maximum system voltage: | 1000/1500VDC |
| Front Glass: | 3.2mm high transmittance, coated tempered glass |
| Back side backsheet: | Back side backsheet |
| Module Bezel: | Anodized aluminum alloy |
| Connector: | MC4 compatible connector |
Quick Details
Specifications
Main Advantages:
High output power:the application of multi-grid half-sheet technology increases energy density and brings higher output power.
High reliability:Passed TUV certified salt spray and ammonia corrosion test, and passed 2400Pa wind load and 5400Pa snow load certification, with stronger reliability.
Low attenuation:Less than 2.5% attenuation in the first year and 0.55% linear attenuation per year for 25 years.
Low hot spot risk:Adopt new generation battery technology and optimized circuit design to obtain better temperature coefficient and thermal shift resistance.
Low risk of hidden cracking:Adopt multiple main grid technology, with stronger resistance to hidden cracking and anti-breakage capability.
Technical details:
What is a half cell?
Half-cell technology is a technique of laser cutting a standard size cell (156 mm x 156 mm) equally into two cells (156 x 78 mm), which are cut and connected together. The cells of the entire module are then divided into two groups, each containing 60 half-cells connected in series, and the cells form a complete 120-cell module, thus reducing the current through each main grid to 1/2 of the original, and reducing internal losses to 1/4 of the whole cell, thus increasing the module power.

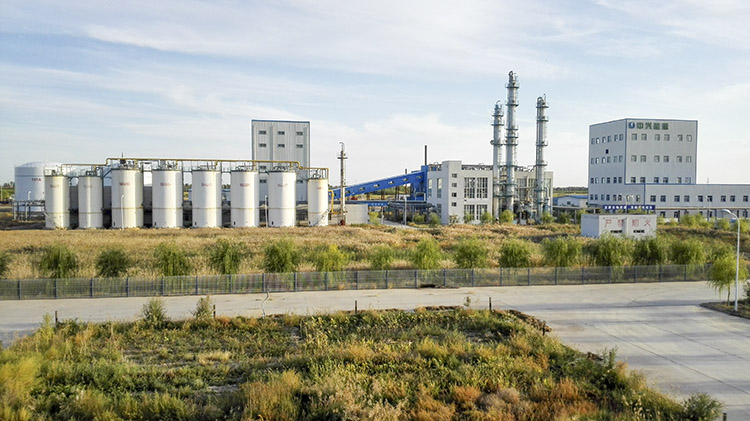

Our Factory:
the Company has produced and is developing five categories of products, including the product in the power generation side, Control inverter, energy storage, new energy load and novel type battery & materails. Specific product ranges include PV modules, portable power supply, off-grid household inverter, hybrid inverter, distributed energy storage, outdoor energy storage cabinet, container energy storage, communication integrated power supply, off-grid PV inverter, distributed industrial and commercial PV inverter, electric heating and other products.
