Product Description

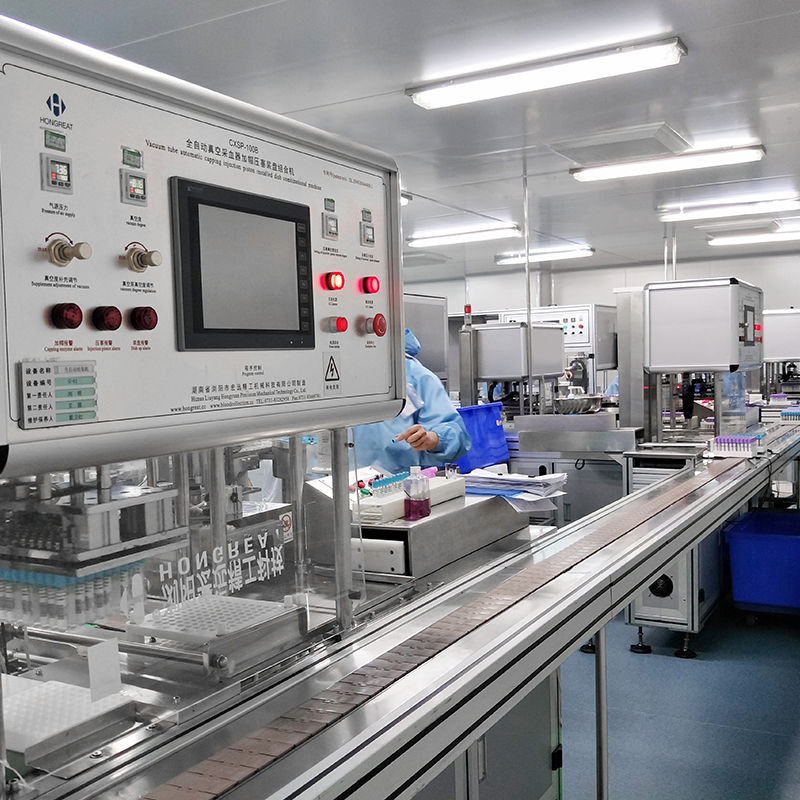

Fully Automatic Vacuum Blood Collection Tube Production Line



Solution Types:  Fully Automatic Intelligent Type
Main Configuration: Anticoagulant Line+Coagulation Line+ Accessory Equipment
Capicity: 144 million pcs/year
Key Characteristic:  Intelligent control and fully online quality control, 2 to 3 operators

==> Application:
Fully automatic production line for blood collection tubes(vacuum & non-vacuum types)

==>  Process flow:
Reverse tube detection >>> EDTA >>> BCA dosing-spraying >>> Drying >>> Cap adding >>> Vacuuming >>> Unloading into tray >>> Sealing & shrinking packaging >>> Finished product.

Main Technical Parameters
Production capacity	12,000-15,000 pcs/h
Tube size	13*75mm, 13*100mm (available for PET, PP, Glass)
Cap size	Outer 16±0.05*19mm+0.1
Control way	Touch screen operation, PLC Control
Dosing system	10 sets of precision ceramic metering pump for EDTA K2/K3: 20-50ul±6%; 10 sets of metering valve for BCA: 20-50ul±10%
Drying system	2 sets of PTC dust-free drying system
Detecting system	Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage.
Vacuum degree	0 ~ -95Kpa ±5% for vacuum tubes; 0 for non-vacuum tubes (Numerical control for vacuum pressure, Frequency conversion control for vacuum pump)
Configurations	1) Reverse tube detection device- 1pc 2) EDTA Precision Dosing Sprayer(10 sets) - 1pc 3) BCA Precision Dosing Sprayer(10 sets) - 1pc 4) PTC Dust-free Drying machine - 2pcs 5) Cap taking and wearing machine - 1pc 6) NC Vacuuming and Cap-pressing Machine - 1pc 7) Tube taking and unloading into Tray device - 1pc 8) Sealing & shrinking packaging machine - 1pc	1) Sodium citrate/Heparin dosing spray optional; Customized spec available.
Air consumption	Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa
Power	30KW/AC380V

about US:
HONGREAT is the manufaturer of blood collection tubes production machines, who designed the FIRST set blood collection tube automatic production machine successfully since 2003. We have 22 key continuously concentrate ourselves on automation research and development & being the leading company for blood collection tube production line with the best products & services. We are the preferred choice for over 210 global enterprises with 35 countries in these 18 years. At the same time, we are suppling medical consumables for our customers, like PRP tubes, blood collection tubes and its raw materials etc, we supported our customer from zero to make production sucessfully.
