| Brand Name: | HX |
|---|---|
| Use: | TIG welding |
| Means of Transport: | tungsten electrodes |
| Model NO: | WC20 |
| Material: | Tungsten |
| Model Number: | WC20 |
| Place of Origin: | China (Mainland) |
| Color: | grey |
Quick Details
Specifications
1.Performance:
Performs well in DC welding and arc starting at low current settings, and offers excellent performance in AC processes.
2.Materials Welded:
Carbon Steel
Stainless Steel
Nickel Alloy
Titanium
Aluminum

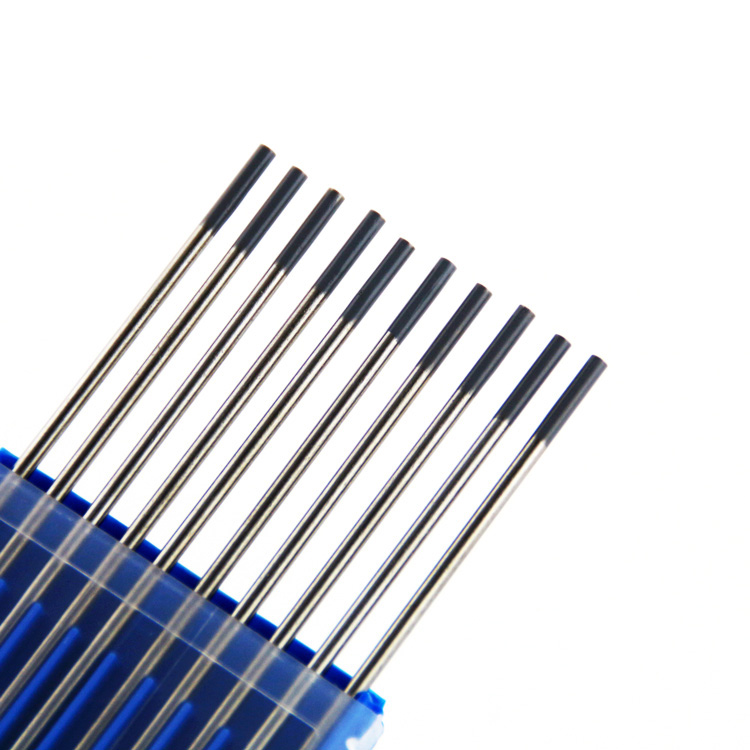

3. Ceriated Tungsten Electrode
2% ceriated tungsten contains a nominal 2% of cerium oxide (CeO2). Ceriated is different from thoriated as it is not a radioactive material. Ceriated tungsten also tends to last longer than thoriated and can be used proficiently with AC or DC. In manual applications, the ceriated tungsten will provide slightly different electrical characteristics than the thoriated tungsten but generally no difference will be seen by the operator. Generally used to weld carbon and stainless steel, nickel alloy and titanium.

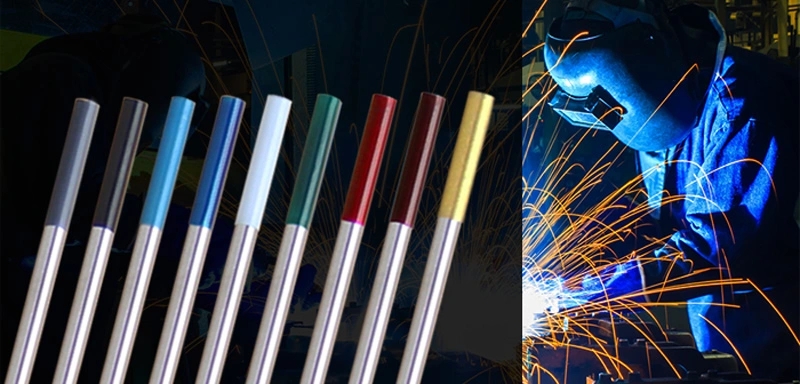

4.All types Tungsten Electrode:
| Type | Designation | Current | Welding Method | Application |
| 1% Lanthanated-Tungsten electrode | WL10 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 1.5% Lanthanated-Tungsten electrode | WL15 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Lanthanated-Tungsten electrode | WL20 | DC Small/Large Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Thoriated- Tungsten Electrode | WT20 | DC Large current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Ceriated- Tungsten electrode | WC20 | DC Small current | Manual welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.3% Zirconium-Tungsten electrode | WZr3 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.8% Zirconium-Tungsten electrode | WZr8 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| Pure Tungsten electrode | WP | AC current | Manual welding, automatic welding | Aluminum alloy, copper alloy, thermal spraying, special light source anode, etc |
| 2% Yttrium- Tungsten electrode |
WY20 | AC Large current | Manual welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |

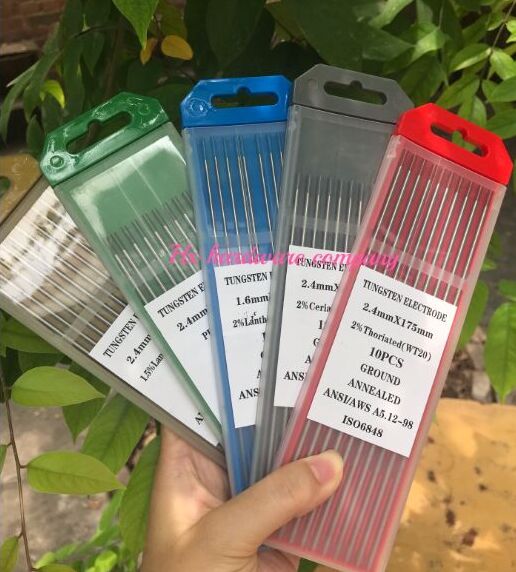

5.New Packing detail information:
1. Good looking black plastic box
2. Professional label for each type tungsten eletrodes.
3. the Packing bag is best for protect the tungsten electrodes.
4. and avoid any Damage in the shipping way.
6.More models available:
1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
Tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20
3) Diameter: 0.5- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting
7.Quality Assurance:
