| Application: | WT20 |
|---|---|
| Diameter: | 1.6 |
| Length: | 175 |
| Material: | Tungsten |
| Brand Name: | HX |
| Operating Temperature: | TIG welding |
| Welding Current: | 70-150 |
| Operating Current: | 100 |
| Model Number: | WT20 |
| Place of Origin: | China (Mainland) |
| Tungsten electrodes: | Wolfare tungsten |
Quick Details
Specifications
1.Performance:

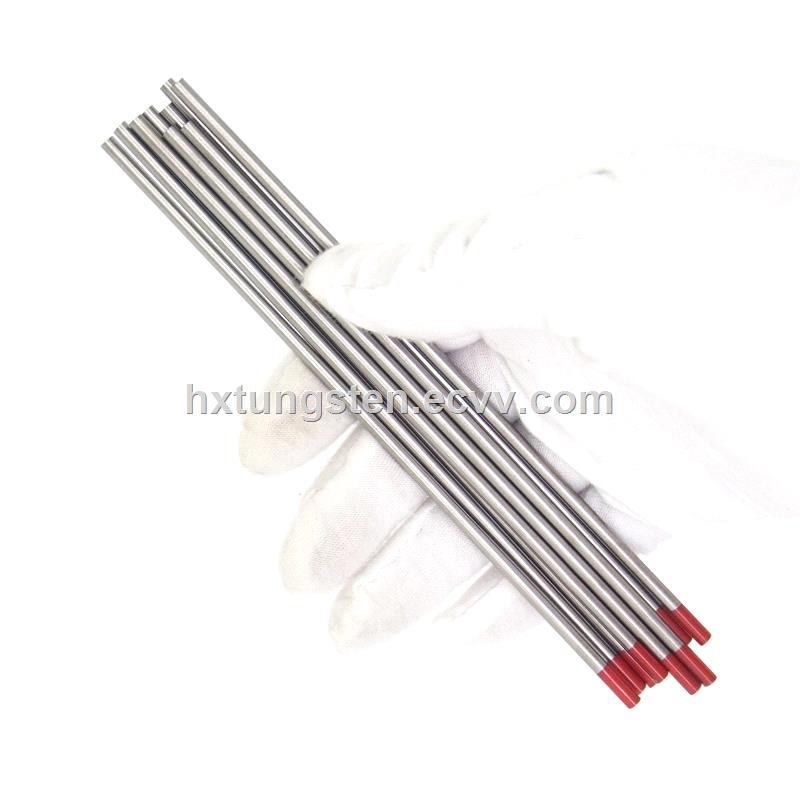

2% thoriated tungsten contains a nominal 2% or thorium oxide (ThO2) that is evenly dispersed throughout the entire length of the tungsten. the most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generally used for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.
| DESIGNATION | COMPOSITION | IMPURITIES% | TUNGSTEN% | COLOR MARK | |
| DIOXIDE | OXIDE in% | ||||
| WT20 | ThO2 | 1.70-2.20 | <0.2 | REMAINDER | RED |
2.Materials Welded:
Carbon Steel
Stainless Steel
Nickel Alloy
Titanium
Copper
3.Thoriated Tungsten Electrode:
2% thoriated tungsten contains a nominal 2% or thorium oxide (ThO2) that is evenly dispersed throughout the entire length of the tungsten. the most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generally used for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.
4.All types Tungsten Electrode:
| Type | Designation | Current | Welding Method | Application |
| 1% Lanthanated-Tungsten electrode | WL10 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 1.5% Lanthanated-Tungsten electrode | WL15 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Lanthanated-Tungsten electrode | WL20 | DC Small/Large Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Thoriated- Tungsten Electrode | WT20 | DC Large current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Ceriated- Tungsten electrode | WC20 | DC Small current | Manual welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.3% Zirconium-Tungsten electrode | WZr3 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.8% Zirconium-Tungsten electrode | WZr8 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| Pure Tungsten electrode | WP | AC current | Manual welding, automatic welding | Aluminum alloy, copper alloy, thermal spraying, special light source anode, etc |
| 2% Yttrium- Tungsten electrode |
WY20 | AC Large current | Manual welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
5.New Packing detail information:
1. Good looking black plastic box
2. Professional label for each type tungsten eletrodes.
3. the Packing bag is best for protect the tungsten electrodes.
4. and avoid any Damage in the shipping way.
6.More models available:
1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
Tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20
3) Diameter: 0.5- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting
7.Quality Assurance:
