| Drawtube: | Trinocular |
|---|---|
| Theory: | Stereo Microscope |
| Brand Name: | MSHOT |
| Resolution: | 6 megapixels |
| Frame rate: | 22 |
| Model Number: | MZX81 |
| Place of Origin: | China (Mainland) |
| Package: | carton |
Quick Details
Specifications

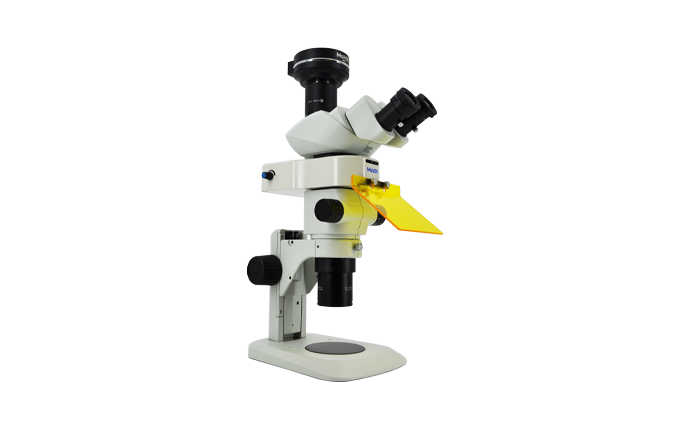

Stereo fluorescence microscope MZX81 is consist of Olympus SZX7 stereo microscope and epi fluorescent attachment, the epi fluorescent attachment is equipped with high bright LED light source. On the basis of Olympus SZX7 stereo microscope excellent optical performance and high brightness fluorescent illumination, the MZX81 microscope provides a superior fluorescent observation performance. the microscope can offer blue and green filter groups in one unit, and support high quality GFP requirement. It's excellent for GFP, nematode,drosophila,zebrafish and embryo fluorescence research. and widely used in biomedicine, in-vivo research, criminal investigation,mineral research,etc.
Superior to meet their optical path offering high quality imaging.
Providing varies of excitation wavelength for users'choice.
Long lifetime LED light source, energy saving and environment friendly.
Dual optical path of fluorescence, dual exciting intensity for bright lighting.
Machine response in nanosecond, high effiencey, easy to use.
Modern oganism such as Zebrafish, C.Elagans, Rat, Drosophila, etc.
Zebfrafish eggs, silkworm eggs and larva eggs
Rat brain thrombus & Tissue sections of rat
Transgenic breeding
Chick CAM (Chick Ambryonal Membrane)
Paper document identification
| Microscope body | Galileo optical system | |
| Zoom drive: Horizontal knob system | ||
| Lead-free | ||
| Zoom body | Zoom radio value 7:1 (0.8x to 5.6), magnification range 8X-56X | |
| Zoom magnification indication 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 | ||
| Observation | Trinocular tube with 30°Inclination | |
| Light path 2 selections: 100% for eyepiece, 100% for photographing | ||
| Wide field Eyepiece 10X, FN22 | ||
| Interpupillary distance adjustable range: 50 to 76 mm | ||
| Lead-free | ||
| Objectives | INfinity plan Achromat objective 1X, N.A 0.1, working distance 90mm, field of view 27.5-3.9mm | |
| Optional objective: 2X, working distance 33.5mm,field of view 13.8-1.9mm | ||
| Epi-fluorescence illumination system | Turret accommodates maximum triple Filter block cubes | |
| Blue and Green filters | ||
| Blue excitation group: 6W LED lighting | ||
| Green excitation group: 12W LED lighting | ||
| Input power DC 12V 2A | ||
| Filter units | Wavelength | |
| Blue (B) | EX475/40nm,DM505nm,EM525/45nm | |
| Green (G) | EX530/40nm,DM570nm,EM590nmLP | |
| Optional fluorescence lighting | Yellow(Y):10W LED lighting, EX560/40nm,DM600nm,EM610nmLP | |
| Violet(V):6W LED lighting: EX400/40nm,DM430nm,EM460nmLP | ||
| Stand | Olympus SZ2-ST standard stand | |
| Travel distance 80mm50mm, 1mm per scale, accuracy 0.1mm | ||
| Focus | Knob rotation tension adjustment, Focusing stroke 120 mm | |
