| Weight: | 10 kg |
|---|---|
| Brand Name: | MEIRI |
| CNC or Not: | Normal |
| Type: | Drill Bit Grinding machine |
| Condition: | New |
| Certification: | CE ISO |
| Dimension(L*W*H): | 32*18*19 cm |
| Power(W): | 120W |
| Voltage: | 220V 50/60Hz |
| Model Number: | MR-13D |
| Place of Origin: | China (Mainland) |
| Max. Grinding Diameter: | 15mm |
Quick Details
Specifications

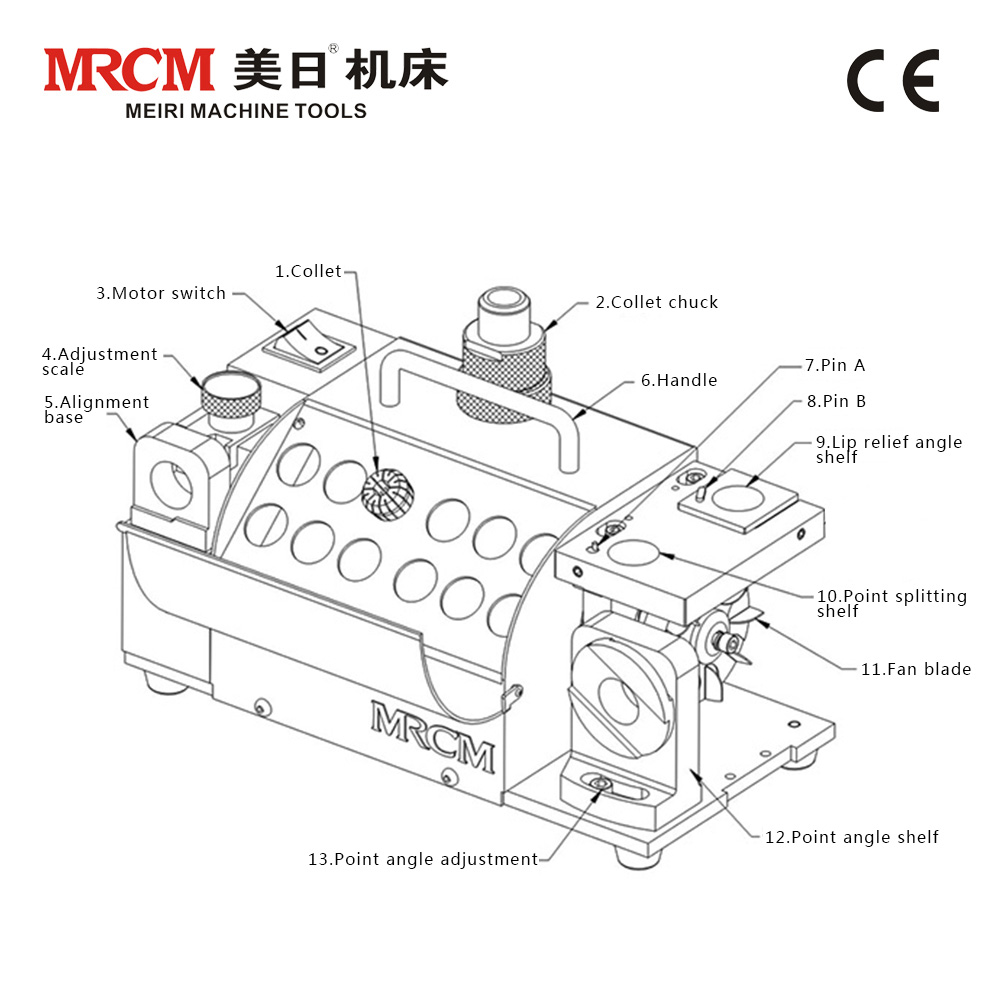

Drill bit sharpener 13D can sharpen the drill before cutting edge (front angle), apex angle (tip angle), back angle (escape angle) and back, adjustable center blade size, easy drilling, easy chip removal.
Grinding Range: φ3-φ13(φ15)mm
Point angle: 100°(95°)-135°
Power: 220V 50/60Hz
Motor: 120W
Speed: 4400 RPM
Grinding wheel: CBN (for HSS) or SD (for Tungsten Steel)
Standard grinding range: 13# (3-13);optional14,15.
Standard equipement: 13# eleven collets. One CBN wheel.
It is not so easy to align the drill less than 3mm.
Grinding Range: φ3-φ13(φ15)mm
Point angle: 100°(95°)-135°
Power: 220V 50/60Hz
Motor: 120W
Speed: 4400 RPM
Grinding wheel: CBN (for HSS) or SD (for Tungsten Steel)
Standard grinding range: 13# (3-13);optional14,15.
Standard equipement: 13# eleven collets. One CBN wheel.
It is not so easy to align the drill less than 3mm.
