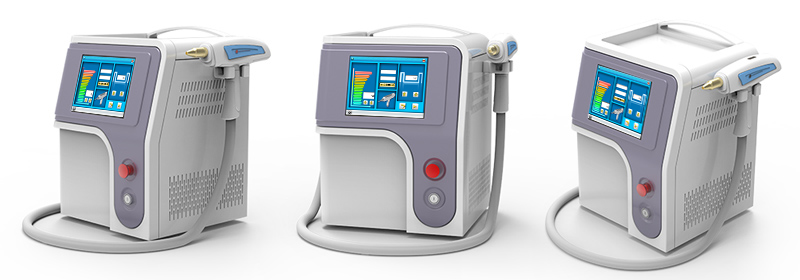

Model: QM-Q2

Portable Q-switch Nd:YAG Laser Tattoo Removal Pigmentation Removal Carbon Peeling Machine

Applications:



1) 1064nm: for treatment of tattoo removal, Dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori's Nevus. (mainly for black and blue pigmentation)

2) 532nm: for treatment of epidermal pigmentation Such as freckles, solar lentigo, epidermal melasma, etc.(mainly for red and Brown pigmentation)

3) Black Carbon Head(NALR-1320nm): for deep Cleaning, skin whitening, skin rejuvenation, shrink pores, acne treatment, Wrinkle removal etc.



Working Principle:



the special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of "selective laser Decomposing", the instrument uses the laser-wave to break Chromatophore into pieces which can be naturally absorbed by the body. So that it achieves The purpose of de-freckling.

the Q-switched Nd:YAG laser radiates the light with a Specific wavelength in high peak energy pulse; hence the light penetrates the Tissue only for an ultra-short nanosecond. the light is absorbed by the pigment Tissue and results in an instantaneous blast, that is Light blasting principle. the pigment particles are shattered into fragments, parts of them will be Bounced out of the skin and other parts will be split into tiny particles that Can be engulfed by phagocytes and then metabolized by the lymphatic system.
the 1064nm wavelength will shatters and removes the black and blue Pigments while the 532nm wavelength will shatters and removes red, pink, Purple and brown pigments of the tattoo or other pigmentations without Damaging the normal tissue

Specialty of QM-Q2

1. Super long lifespan 2 millions shots!

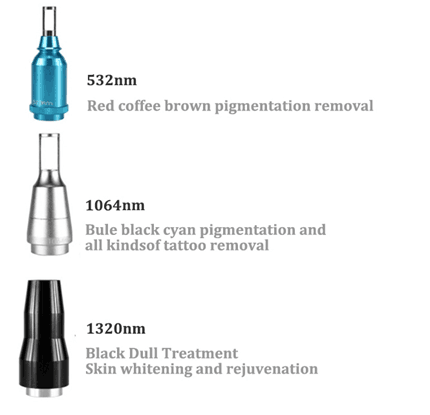

2. 3 tips included: 532nm, 1064nm, 1320nm


532nm wavelength: get rid of freckles, Eyebrow tattoo, failed eye line tattoo, tattoo, lips line, pigment, Telangiectasia in shallow red, brown and pink and etc. Light color

1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, Scarlet red, deep coffee and etc. Deep color.

1320nm wavelength: shrink pores removal, Poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle Removal.



Technical Specifications:

Peak Power	500W
Wavelength (Spectrum)	1064nm & 532nm (1320nm optional)
Energy Density (Fluence)	1-1000mJ
Spot Size	2-6mm
Pulse Repetition Rate	1-6Hz
Pulse Duration	<8ns
YAG Bar Size	7
Cooling	Air cooling Closed water circulation cooling
Stand-by Working	Continuously for 15 hours
Display	8.4" True Color LCD Touch Screen
Electrical Requirements	110/230VAC, 15/20A max., 50/60Hz
Net Weight	25kgs
Dimensions (WxDxH)	480*430*340 mm

Before & after:
