GXI-Plasma

DC3.7~5V/DC12V/DC24V/AC100~130V/AC200~240V

Working current:

<50mA

Output negative voltage value

0~-DC6.0±0.5KV(Relative humidity:50%,temperature:28℃)

Negative ion concentration

≥30x10PCS/CM (the distance between the generator and the tester is 10cm for detection)

Output positive voltage value

0~+DC6.0±0.5KV(Relative humidity:50%,temperature:28℃)

Positive ion concentration

≥30x10PCS/CM (the distance between the generator and the tester is 10cm for detection)

Dielectric strength

(There is no breakdown of the power cord to the outer box at AC3750V 5mA 50Hz 3S)

Operating temperature

-10℃~+60℃

Storage temperature

-20℃ ~+70℃

Moisture resistance

No power, put it in the environment of temperature 25 ℃ and Humidity 93% for 12 hours, it can work normally

High temperature characteristics

No power, put it in the environment of +70 ℃ for 12 hours, take it Out and return to room temperature, it can work normally

Low temperature characteristics

No power, put it in the environment of -20 ℃ for 12 hours, take it Out and return to room temperature, it can work normally

Drop test

Put it on 60cm from the ground, make it fall freely to a 3cm thick Wooden board, and work normally when electrified

Working principle

the input DC or AC power is raised to DC positive and negative High voltage through a pulsed circuit, and the tip is used to discharge the Air to ionize the air, thereby generating positive and negatively charged Oxygen ions, referred to as plasma; this is similar to "thunder and Lightning" to generate plasma.

Appliance

this products is widely used in healthy home appliances and air Circulation systems, such as: air purifiers, humidifiers, dehumidifiers, Wardrobes, washing machines, clothes dryers, heaters, beauty salon Appliances, fitness equipment, lamps, wall-mounted air conditioners, fresh Air systems, Central air-conditioning system, car elevator, library air Circulation transformation system, automobile, bus, train, subway air Circulation system. after adding the plasma purification module, the system Adds sterilization, disinfection, and deodorization functions, which Increases the selling point and it is deeply loved by users.

Custom Instructions

We support sample customization, drawing customization, and new Design customization, including shell, wire length, wire gauge, circuit Design, etc. All specifications can be customized according to your needs.

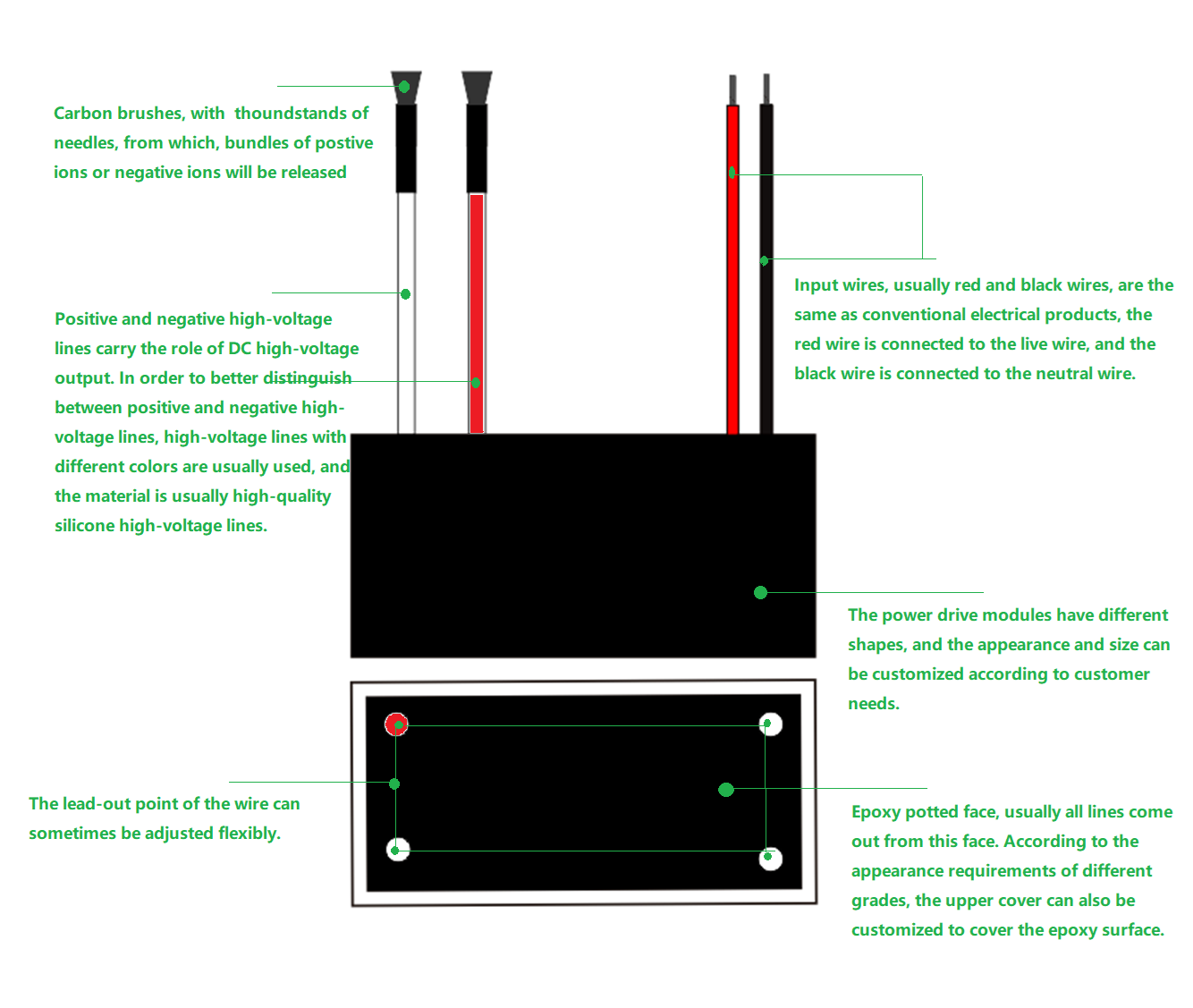

Installation advice

this product is recommended to be installed in the air outlet of Home appliances. Install the release port (carbon brush or steel needle, or a Customized electrostatic precipitator) in a position where the airflow can Pass, preferably directly at the position closest to the air outlet, so as to Avoid loss of ions during evacuation in the pipe.

Special attention

the plasma generator is a device that releases both positive and Negative ions at the same time. the positive ions and negative ions will Neutralize each other at the moment of release, which brings trouble to us When testing the number of ions released. Therefore, when testing the release of positive ions and negative ions, it is necessary to eliminate the Influence of each other. It is recommended to test the release of negative Ions when the tip of positive ion release is blocked. Similarly, the release of positive ions is tested when the release stage of negative ions is Blocked.
