| Color: | Black |
|---|---|
| Shell Material: | Composites |
| Type: | Grand Piano |
| Brand Name: | Roland |
| Style: | Digital |
| Place of Origin: | United States |
| Color: | Black |
Quick Details
Specifications

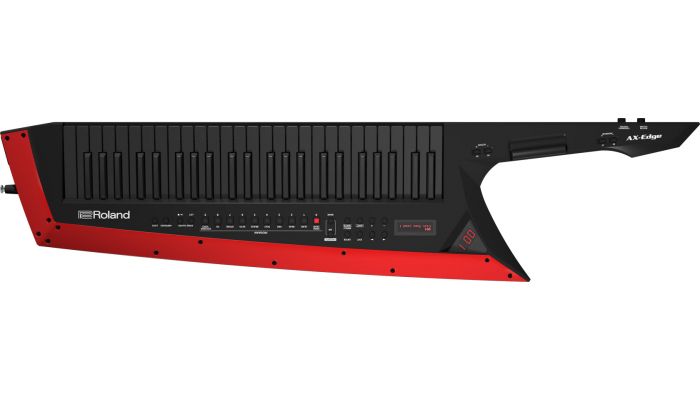

the AX-Edge has a sleek, modern design with a customizable look via
Interchangeable Edge Blades, 49 full-sized keys, and a sound set
Crafted specifically for keytarists. and throughout the AX-Edge, you'll
Find thoughtful design features that give you the freedom and confidence
To truly express yourself on stage.
SPECIFICATIONS
Keyboard49 keys (with velocity and channel aftertouch)
Keyboard49 keys (with velocity and channel aftertouch)
Sound GeneratoR Synth-EX
Maximum Polyphony256 voices (varies according to the sound generator load)
Parts4 parts + Vocoder part
Tones
- User Program: 320
- Preset Tone: over 500
- User Tone: 256
Effects
- Part Multi-effects: 79 types
- Part EQ
- Vocoder
- Program Multi-effects (IFX): 79 types
- Chorus: 8 types
- Reverb: 6 types
- Master Compressor
- Master EQ
Other Functions
- Favorite
- Song Player
- Arpeggio
- Vocoder
- MIDI Master Keyboard
- Sound Edit
* You can use the smartphone AX-Edge Editor app (Android version/iOS version) to edit the AX-Edge's sounds.
Controllers
- Ribbon Controller
- Modulation Bar
- Assignable Control knob
- Master Volume knob
- Assignable buttons x 7
- Pedal
- Aftertouch
BluetoothMIDI: Bluetooth Ver. 4.1 (Bluetooth LE)
Display16 characters 2 line LCD
External Storage DeviceUSB flash drive
Connectors
- PHONES jack: stereo 1/4-inch phone type
- OUTPUT jacks (L/MONO, R): 1/4-inch phone type
- MIC INPUT jack: 1/4-inch phone type
- PEDAL jack
- MIDI connectors (in, OUT)
- USB MEMORY port
- USB COMPUTER port (supports USB MIDI)
- DC in jack
Power Supply
- DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
Current Draw
- 1,000 mA
- * Battery life for continuous use (differs depending on the conditions of use)
- Rechargeable nickel metal hydride batteries: approximately 4 hours
- *Carbon-zinc or alkaline batteries cannot be used
Accessories
- Owner's manual
- Leaflet "USING the UNIT SAFELY"
- AC adaptor
- Power cord
- Strap
- Blade panel (including Hex key, screws)
- Ferrite core (including Band for fastening the core)
Options (sold separately)
- AX-Edge stand (ST-AX2)
- Pedal switch: DP series
- Expression pedal: EV-5
SIZE and WEIGHT
- Width1,252 mm | 49-5/16 inches
- Depth 291 mm | 11-1/2 inches
- Height 85 mm | 3-3/8 inches
Weight(excluding AC adaptor, Batteries)
- 4.2 kg | 9 lbs. 5 oz.
