| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Brand Name: | Delta |
| Warranty: | 1 year |
| weight: | 7kg |
| Model Number: | TTR-I |
| Place of Origin: | China (Mainland) |
| Description: | Single Phase or Three Phase Power Transformer Turns Ratio Testing TTR Meter |
| Application: | For Single Phase or Three Phase Power Transformer Turns Ratio TTR Testing |
| Test Object: | Single Phase or Three phase current transformer, voltage transformer, winding coils, etc. |
| Ratio Measurement Range: | 1-10000 |
| Test Parameters: | Turns Ratio, Phase Angle, Polarity, Vector Group |
| Dimension: | 400mm*350mm*200 mm |
| Power supply: | 220V, 50Hz or as customerr's request |
| Vector Group measurement: | 1-12 |
| Test voltage: | AC 0-80V |
| Reference Standards: | IEC76-1 and IEC60044 |
Quick Details
Specifications
TTR-I Single Phase or Three Phase Power Transformer Turns Ratio Testing TTR Meter
Main Advantages:
** TTR-I Transformer Turns Ratio Tester is designed according IEC76-1 and IEC60044.
** It can be applied to test the turns ratio and Group vector of single or three phase transformer.
** the connection group of three phase transformer also
Can be calculated with the ratio.
** All parameters can be measured in one test for three
Phase transformer.
Technical Details: 1 Ratio measurement range 1-10000 2 Group measurement 1-12 3 Phase measurement error 1 degree 4 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG 5 Test voltage AC 0~80V continuously, frequency 50Hz 6 Power supply AC220V ± 10%, 50Hz/60Hz 7 Environment temperature 0-50°C 8 Humidity ≤85%RH 9 Size 400mm*350mm*200 mm 10 Weight 7kg 11 Length of test cables 8 meters
No.
Item Name
TTR-I Single Phase or Three Phase Power Transformer Turns Ratio Testing TTR Meter

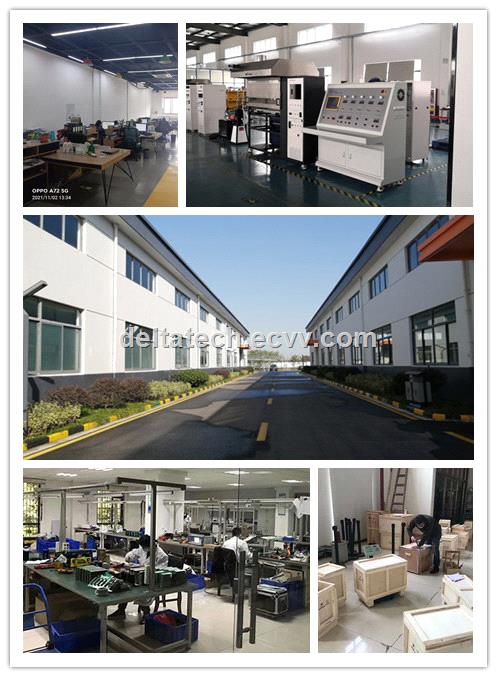

Our Factory:
Our Service:
1. Buyer label offered;
2.Provide professional advice and reasonable offers within 2 hours at
Working time, and within 12 hours at non-working time;
3.One year warranty for all the products, life time technical consulting, life
Time provision of spare parts, free software upgrades.
FAQ:
1. What's the delivery lead time?
It is 7 days after the order is confirmed;
2. What's the packing?
It is packed in veneer case;
3. What's the delivery method?
since this tester is light and in small dimension, it can be delivered by TNT/ Fedex / DHL Express;
4. What's the payment term?
Amount below USD3000.0 is 100% as advanced payment, beyond USD3000.0 can be 30% as advanced payment, the balance before delivery;

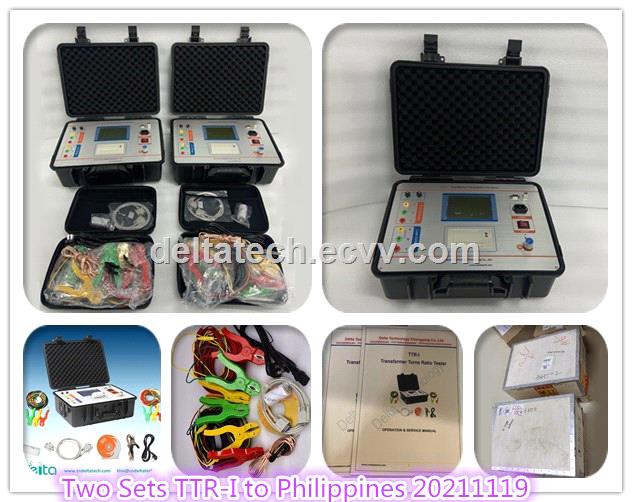

Product Show:
