Ask 12V Coreless DC Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 12 V DC Motor Seller from China. Premium Quality & Coreless DC Motor Exporter.
Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ17*18.2mm
Housing material: SECD-O
Shaft (diameter): 1mm SUS304 steel (nickel coating)
Way of commutation: Precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 21g(approx)
|
1718
Precious metal brushes coreless motor |
Typical Application |
Medical equipment,
Home appliance,
Industrial automation |
Nominal voltage |
12V |
No load current |
60mA |
Stall torque |
86 |
Efficiency |
75% |
17mm 6v 12V coreless DCMicro Motor for toy,1215R 1515R 1715R 1718R 1722R 2225R 3265R 3653R 12mm 15mm 17mm 32mm 35mm 36mm 6v 12v 24v coreless DC motor for smart robot,1718 17mm*18mm Strong Magnetic Coreless DC Motor 12V 12000RPM/15000RPM/21900RPM High Speed Engine for Rotary Tattoo Machine
Volt |
6v |
No Load Speed |
21900rpm |
Rated Speed |
19000rpm |
Rated Torque |
|
Application |
Robot, door lock, toy, cabinet lock, home appliance,vacuum cleaner |
SPECIFICATION:
1. Voltage: DC 6V
2. No load speed: 21900±10%rpm
3. No load current: 0.01A
4. Diameter 17mm, length 18mm, shaft dia 1.2mm
5. Material: plastic gear and metal DC motor
6. Weight: 20g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)
Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.the motor adopts high
Anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
Working life |
100 Hours |
Voltage |
DC 6V |
|
No-load Current |
0.01A |
No-load Speed |
21900 rpm |
|
Load Current |
0.02A |
Load Speed |
19068 rpm |
|
Power |
0.01 w |
Load Torque |
21 |
|
Stall Current |
0.09A |
Sall Torque |
|
|
Warranty |
1 year |
MOQ |
1000 pcs |
|
Model Number |

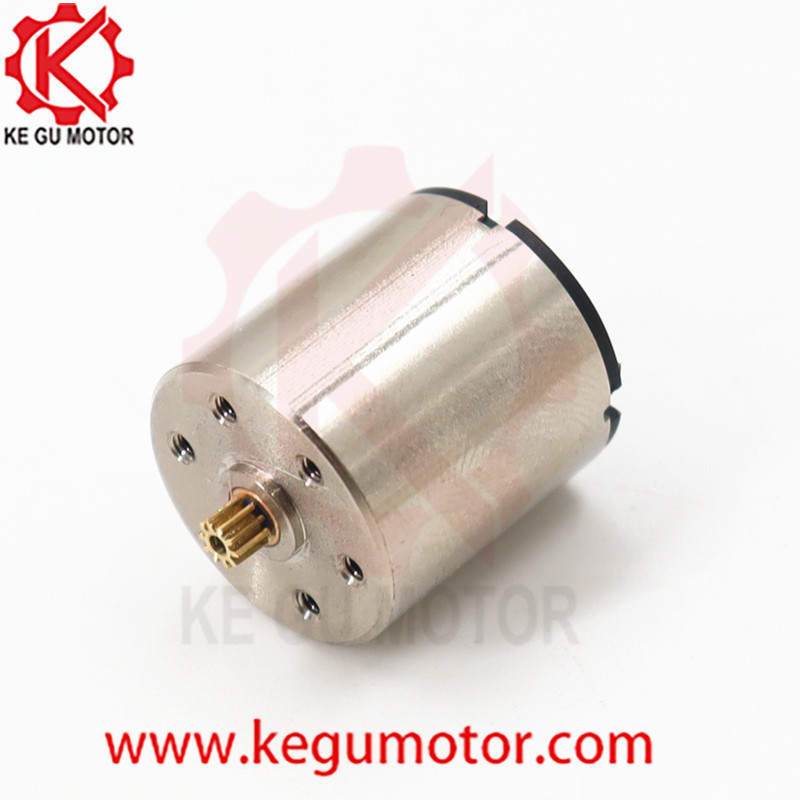

1718R 17mm x 18 mm Mini CORELESS Motor |
Price |
USD 0.7-0.9 |
|
Application |
Mobile phone |
Port |
Shenzhen |
|
Drawing of 17mm mini BLDC coreless motor
1718R micor brush coreless DC motorBrand Kegumotor
Item 17mmMini BLDC vibration motorLocation Shenzhen Model 1718r Load current 55mA Load power 0.01w Load volt
Load Torque Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 3.0-12V
DC Motor Durable, 1718 Micro 17mm Coreless Motor, NdFeB Strong Magnet High Torque Mute Gear 10T Hollow Cup Servo Steering Motor,
Accessories (Speed(RPM): Motor only)
Motor Diameter: 17mm
Motor Height: 17.8mm
Gear Size: OD 2.95mm, 10T, 0.25M
Rated Voltage: DC 12V
Speed: 19800RPM/21900RPM
Output Shaft Diameter: 1.2mm
Output Shaft Length: 5mm
Weight: 20g
1718r coreless DC motorOutline
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque to
the reliability and stability of the product is an important index to evaluate the technical level of the order to accurately analyze, evaluate and verify the performance of the product.
so Kegu motor will reply customer in 2 days after receive
Complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.after confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.the company strictly implements the IS9001:2015 management system.
Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.
Our Services & Strength
R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.
Provide customized, design, development, production and assembly services of micro gear transmission system.
Our hollow cup motors have very wide specification and size, including but not only:
28mm Hollow Cup Motor,6mm Hollow Cup Motor,22mm Hollow Cup Motor,38mm Hollow Cup Motor,16mm Hollow Cup Motor,4mm Hollow Cup Motor,7mm Hollow Cup Motor,8.5mm Hollow Cup Motor,Small Hollow Cup Motor,40mm Hollow Cup Motor,35mm Hollow Cup Motor,32mm Hollow Cup Motor,10mm Hollow Cup Motor,30mm Hollow Cup Motor,26mm Hollow Cup Motor,20mm Hollow Cup Motor,17mm Hollow Cup Motor,15mm Hollow Cup Motor,13mm Hollow Cup Motor,12mm Hollow Cup Motor,10mm Hollow Cup MotorMuch more motor.
1715rb brushless Coreless motor,1515rb Brushless Coreless motor,1718rb Brushless Coreless motor ,1722rb Brushless Coreless motor ,1625rb Brushless Coreless motor ,1636rb Brushless Coreless motor,2232rb Brushless Coreless motor,2238rb Brushless Coreless motor,2447rb Brushless Coreless motor,2854rb Brushless Coreless motor,3270rb Brushless Coreless motor,3670rb Brushless Coreless motor,4088rb Brushless coreless motor,corelessmotor,slotless motor,brushless coreless motor.
Brushed coreless motor,0408 coreless motor,0412 coreless motor,0610 coreless motor,0612 coreless motor,0716 coreless motor,0720 coreless motor,0820 coreless motor,1013 coreless motor,1213 coreless motor,1215 coreless motor, 1015r coreless motor,1215r Coreless motor,1515r coreless motor, 1525r coreless motor,1620r coreless motor,1625r Coreless motor,1630r coreless motor,1625rb Coreless motor ,1715r Coreless motor,1715rbCoreless motor ,1718r Coreless motor ,1718rb Coreless motor ,1722r Coreless motor,1725r Coreless motor,2016r coreless motor, 2225r Coreless motor,2232r Coreless motor,3265r Coreless motor,3553r Coreless motor,4070r Coreless motor
