Product Main

Quick Details

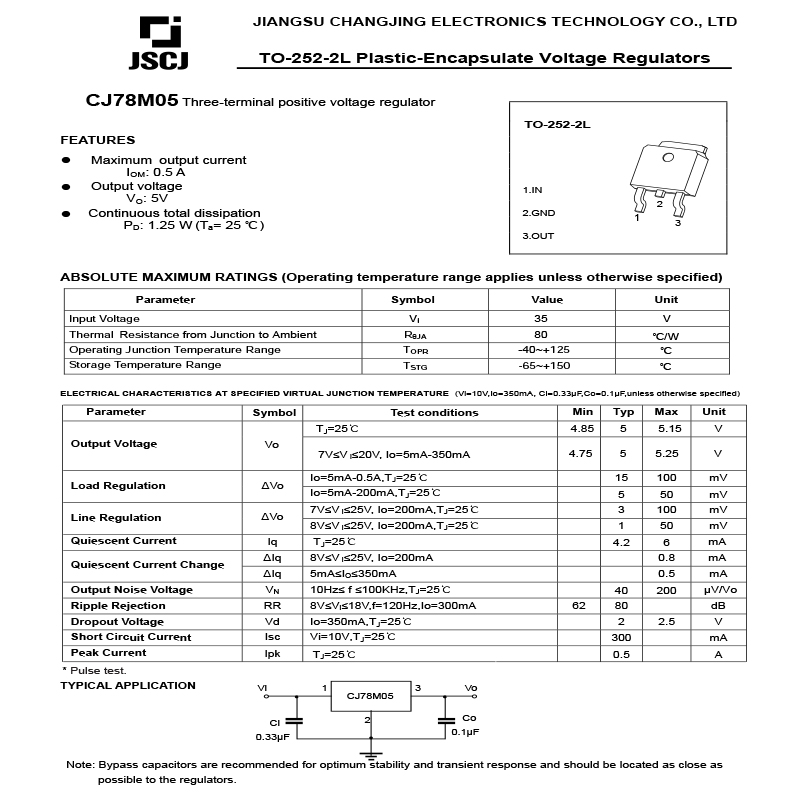

Brand Name:	JSCJ
Size:	15*25*10mm
Type:	Three-terminal voltage regulator integrated circuit
Material:	semiconductors
Color:	Black

Specifications

as the name implies, a three-terminal IC refers to an integrated circuit used for voltage regulation that has only three pin outputs, namely the input end, the output end and the ground end. Turn the marked side of the component toward you. If it is 78 series, the three pins are input, ground and output; if it is 79 series, the three pins are ground, input and output. the use of 78/79 series three-terminal voltage regulator ICs to form a regulated power supply requires very few peripheral components, and there are protection circuits for overcurrent, overheating and adjustment tubes inside the circuit, which are reliable, convenient and cheap to use. The numbers after 78 or 79 in the model of this series of integrated voltage regulator ICs represent the three-terminal integrated voltage regulator voltage
