| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Bill Printer,Label Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | Screen Printer |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 200KG |
| Dimensions(L*W*H): | L2000 * W700 * H1750mm |
| Gross Power: | 380V-480V 50Hz-60Hz 3Phase |
| Voltage: | 2.4KW *2 |
| Color & Page: | Multicolor |
| Model Number: | HY-300RF |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

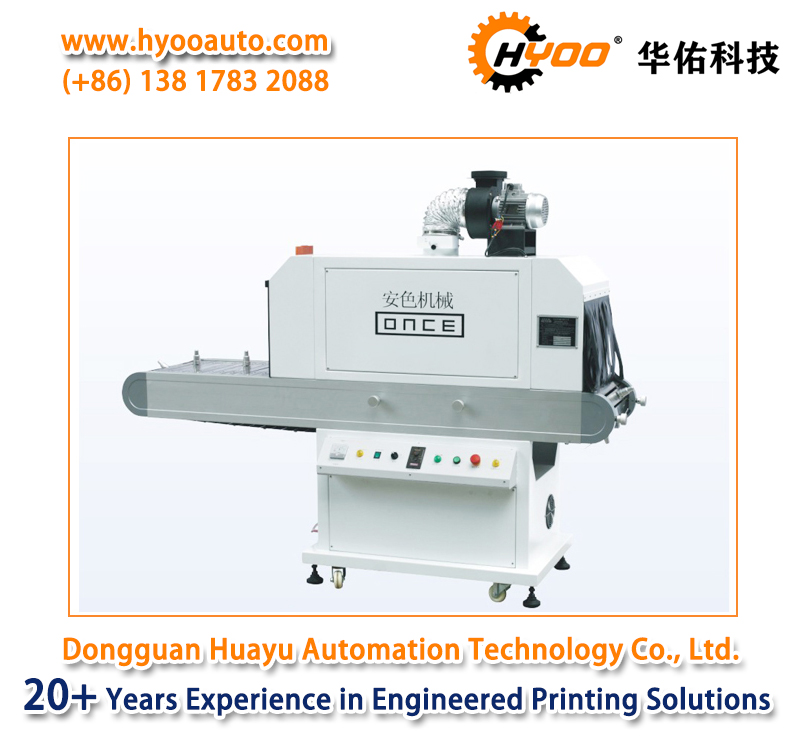

HY-300RF is a round and flat UV curing machine mainly used for curing UV ink on various plastic container surfaces, Installed high intensity UV lamp(5KW), One unit UV curing machine fit for 2 screen printers, UV lamp power is adjustable (low, medium, high), stainless steel conveyor belt
Typical Features of Round and Flat UV Curing Machine HY-300RF
HY-300RF is a round and flat UV curing machine mainly used for curing UV ink on various plastic container surfaces
Installed high intensity UV lamp(5KW)
One unit UV curing machine fit for 2 screen printers
UV lamp power is adjustable (low, medium, high)
Stainless steel conveyor belt
Main Specifications of Round and Flat UV Curing Machine HY-300RF
| Model NO.: | HY-300RF |
| Round product curing size | Bottle mouth Diameter 10-30mm, height 25-300mm |
| Flat product curing size | Width 400mm, Height 100mm |
| Max.Curing speed | 50pcs/min |
| Electrical supply | 380V-480V 50Hz-60Hz 3Phase |
| UV lamp power | 5KW |
| Machine Dimension | L2000 * W700 * H1750mm |
| Weight | 200KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
