| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Bill Printer,Card Printer,Cloths Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | Screen Printer |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 450KG |
| Dimensions(L*W*H): | L4000 * W700 * H1750mm |
| Gross Power: | 5KW |
| Voltage: | 380V -480V 50Hz-60Hz Phase |
| Color & Page: | Multicolor |
| Model Number: | HY-400RF |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

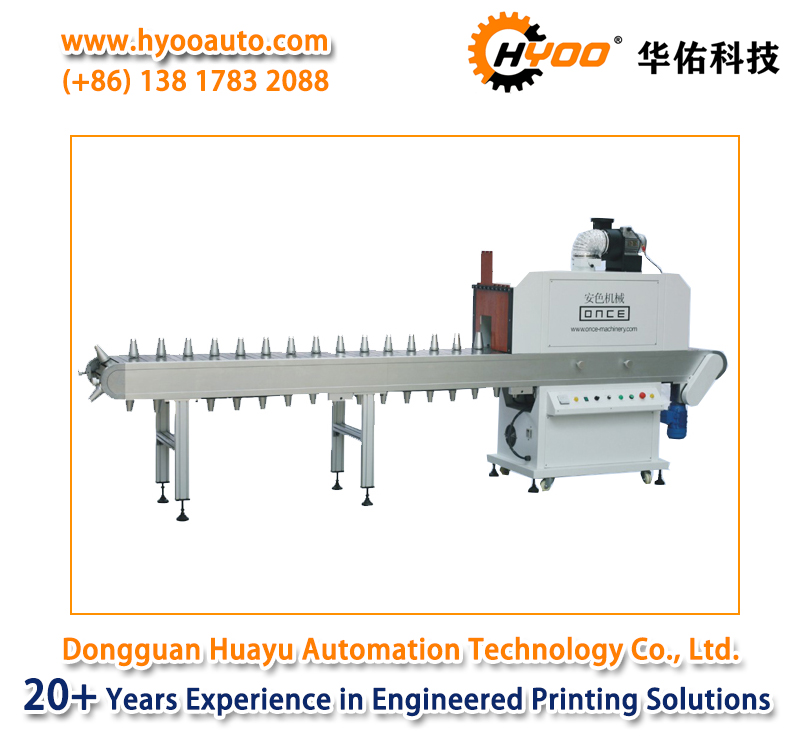

the HY-400RF is a round and falt UV curing machine mainly used for curing UV ink on container surfaces.One unit UV curing machine fit for 4 -6 screen printers.Installed high intensity UV lamp (5KW) and adjustable power(low, medium, high)4 meter conveyor with stainless belt.
Typical Features of Round and Flat UV Curing Machine HY-400RF:
HY-400RF is a round and falt UV curing machine mainly used for curing UV ink on container surfaces.
One unit UV curing machine fit for 4 -6 screen printers.
Installed high intensity UV lamp (5KW) and adjustable power(low, medium, high)
4 meter conveyor with stainless belt
Main Specifications of Round and Flat UV Curing Machine HY-400RF:
| Model NO.: | HY-400RF |
| Round Product curing size | Bottle mouth diameter 10-30mm, height 25-300mm |
| Flat product curing size | Width 400mm, height 100mm |
| Max curing speed | 50pcs / min |
| Electrical Supply | 380V -480V 50Hz-60Hz Phase |
| UV lamp power | 5KW |
| Machine Dimension | L4000 * W700 * H1750 mm |
| Weight | 450KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
