| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Semi-Automatic |
| Usage: | Bill Printer,Cloths Printer,Label Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | Screen Printer |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 145Kg |
| Dimensions(L*W*H): | 835L * 880W * 130H mm |
| Gross Power: | AC220V 1Phase 50Hz |
| Voltage: | 220V -110V |
| Color & Page: | Multicolor |
| Model Number: | HY-400 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

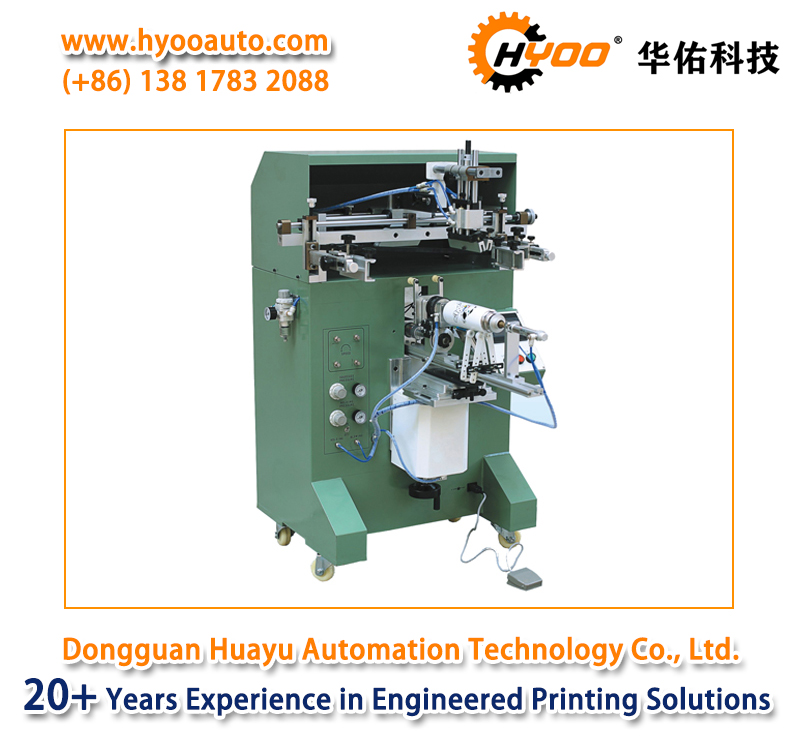

HY-400 Semi Automatic Screen Printing Machine for Glass Perfume Bottle, Special design for printing round, curve and cone-shape objects, this semi-automatic screen printing machine can for small round bottle, oval container and flat products printing.
Typical Features of Mechanical Cylindrical Screen Printing Machine Semi Auto Screen Printer HY-400:
Controlled by microprocessor, easy operation, running stably and accurately.
4-digit auto counter built-in.
Cast aluminum machine frame, low weight and high intensity, adjust convenient.
Separate adjustment of the pad up/down stroke speed.
Ink scraper is auto balance keeping in printing.
with the function of ink scraping nonstop without printing in order to prevent the ink from drying.
Ink cup is turnable and adjustable in vertical and horizontal direction.
with super long slide stroke to print large size work piece.
Mechanical part of the installation of the German FESTO tubes and Air valve, Ormon Sensor, SMC Cylinder.
Main Specifications of Mechanical Cylindrical Screen Printing Machine Semi Auto Screen Printer HY-400:
| Model NO.: | HY-400: |
| Shape of Tested Objects | Round, Oval and Cone |
| Max. Printing Area | 400L* 200W * Φ100 mm |
| Max. Running Speed | 20 Cycles/Min |
| Power Supply | AC220V 1Phase 50Hz |
| Air Pressure | 4-6 Bar |
| Dimension | 835L * 880W * 130H mm |
| Weight | 145Kg |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
