Quick Details

Application: Laser Cutting
Certification: CE
Brand Name: MAHATMA
Graphic Format Supported: DWG
Applicable Material: Metal
Laser Type: Fiber Laser
After-sales Service Provided: Engineers available to service machinery overseas
Model Number: MHTS-1300M
Place of Origin: China (Mainland)
Control Software: CPY-CUT
Cooling Mode: Water Cooling
CNC or Not: Yes
Cutting Speed: 0-20m/min
Cutting Area: 0-2600mm
Cutting Thickness: 0-30mm
Condition: New
Color: White

Specifications

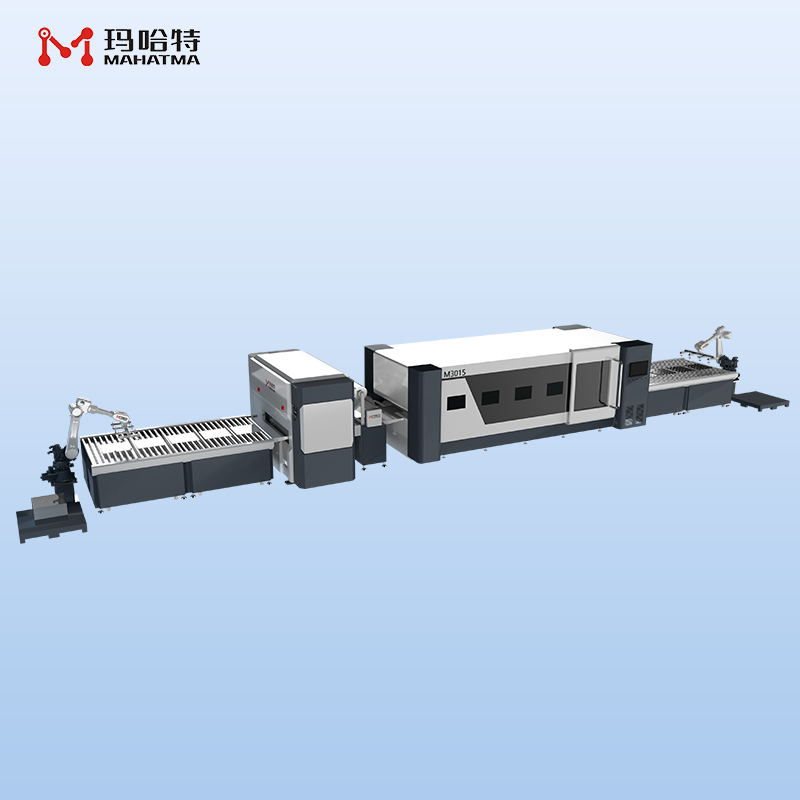

Fiber Laser Cutting Machine for metal sheets
Shear Line Technical features
Model MHTS-1300M MHTS-1500M MHTS-2000M MHTS-2500M
Maximum Width(mm) 1300 1500 2000 2500
Maximum Thickness(mm) 3/6/10 3/6/10 3/6/10 3/6/10
Roller Diameter(mm) 60/80/120 60/80/120 60/80/120 60/80/120
Leveling Accuracy(mm/m2) 0.5 0.5 0.5 0.5
Maximum Weight(t) 5/10/15/20 5/10/15/20 5/10/15/20 5/10/15/20
Automatic Hydraulic Feeding Trolley Yes Yes Yes Yes
Speed(m/min) 0-20 0-20 0-20 0-20
Inner Diameter(mm) ∮508- ∮610 ∮508- ∮610 ∮508- ∮610 ∮508- ∮610
Maximum Outer Diameter(mm) Φ1500 Φ1500 Φ1500 Φ1500
Numbers of Roller 15 15 15 15
Controller Semi-automatic Semi-automatic Semi-automatic Semi-automatic
Feeding Accuracy(mm) ±0.2 ±0.2 ±0.2 ±0.2
Air Pressure(kg/cm2) 5 5 5 5
Rack expansion mode Hydraulic  Hydraulic  Hydraulic  Hydraulic
Servo Motor Servo + Reducer Servo + Reducer Servo + Reducer Servo + Reducer
Rack motor(kw) 5 5 5 5
Feeding direction Left→right Left→right Left→right Left→right
Feed line height(mm) 850±50 850±50 850±50 850±50
Voltage(v) AC380v AC380v AC380v AC380v
Optional 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform
