Brand Name: | Partaker |
---|---|
Certification: | CE FCC ROHS |
VPN Support: | Yes |
Type: | Wired |
Products Status: | Stock |
Place of Origin: | China (Mainland) |
Model Number: | H3 |
Throughput: | 1G |
Model Number: | H3 |
CPU: | Intel Celeron Processor J4125 |
Operating System: | Firewalls tested with pfSense |
Graphic: | Intel UHD Graphics 600 |
AES-NI Supported: | Yes |
Ports: | 4 x Lan+ VGA+ HDMI+ USB2.0 |
Quick Details
Specifications

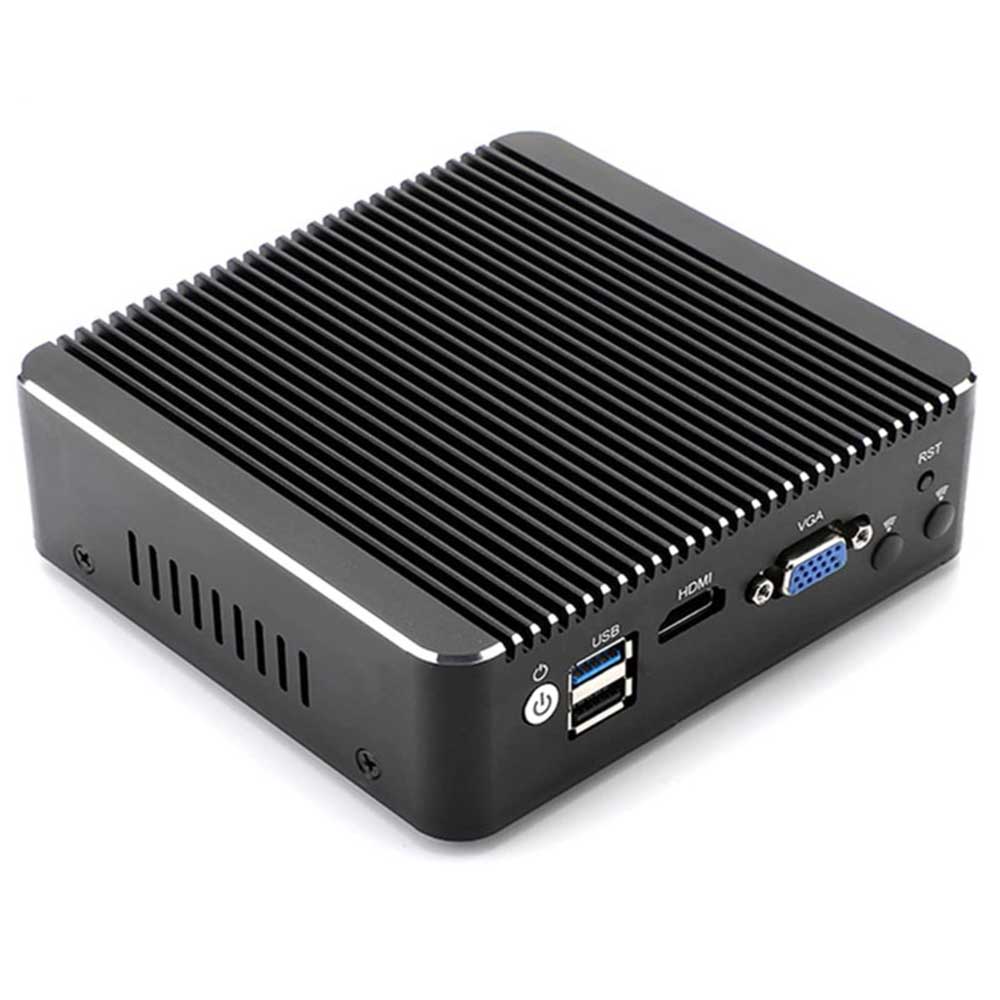

Model Number: Partaker H3
Chassis: Full aluminum
CPU: Intel Celeron Processor J4125 (4M Cache, up to 2.70 GHz)
AES-NI Supported: Yes
Memory Type: 1 x sodimm ddr4,max. 8g RAM
Storage: 1 x mSata SSD+ 1 x 2.5 inch HDD supported
Network Card: Intel pci-e 1000m 4 x i210 or i225 (good performance, less heat, stable)

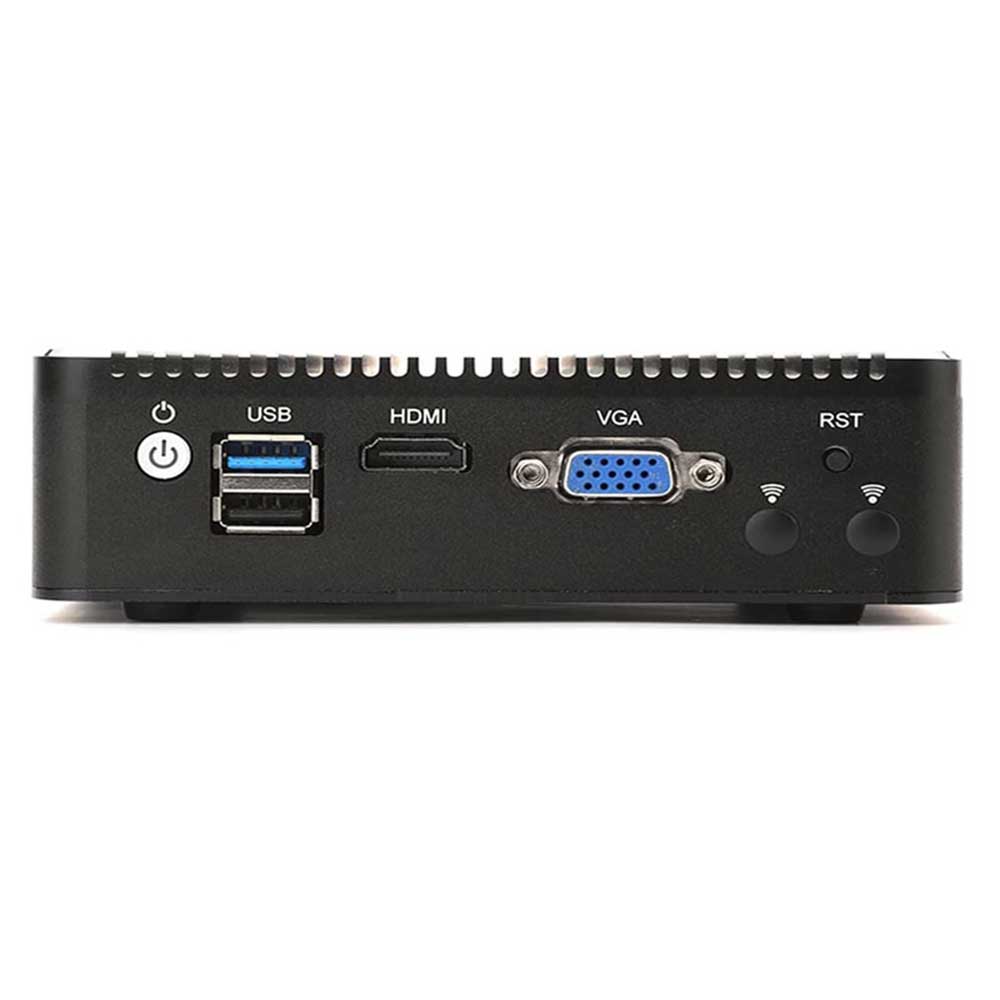

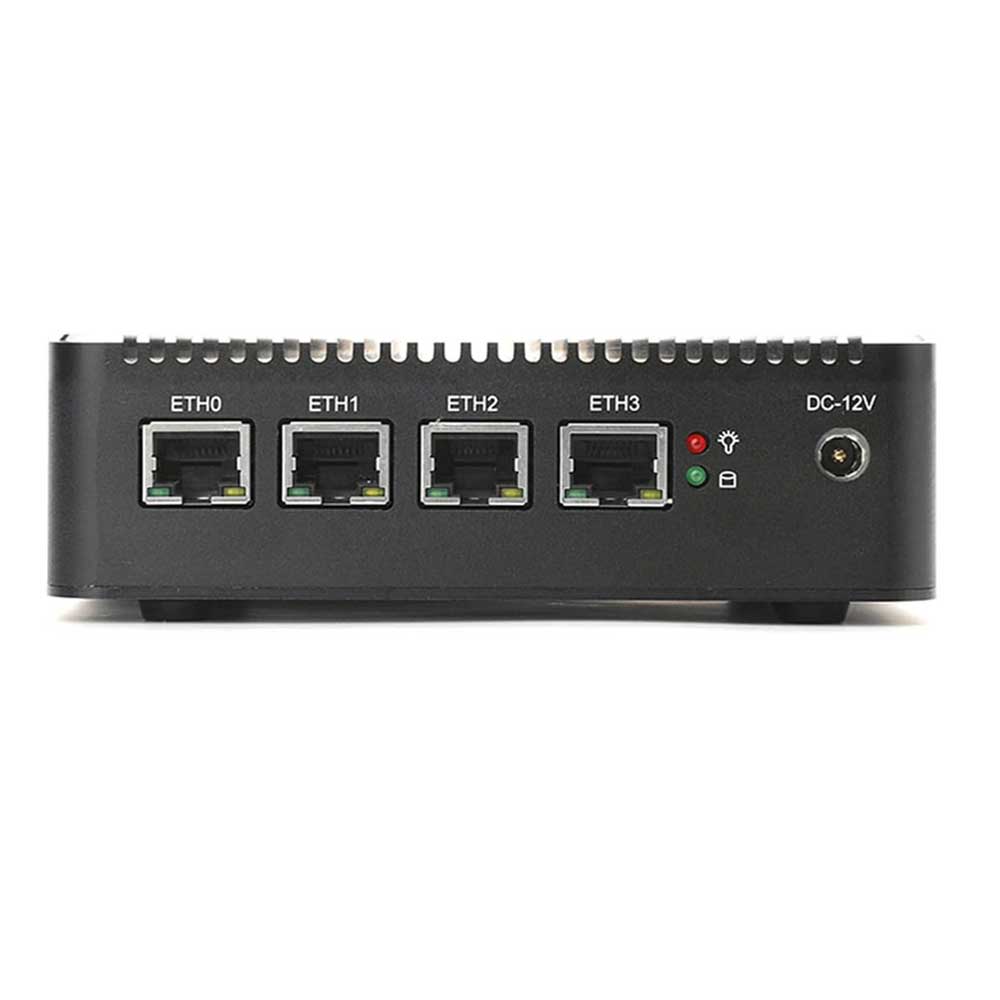

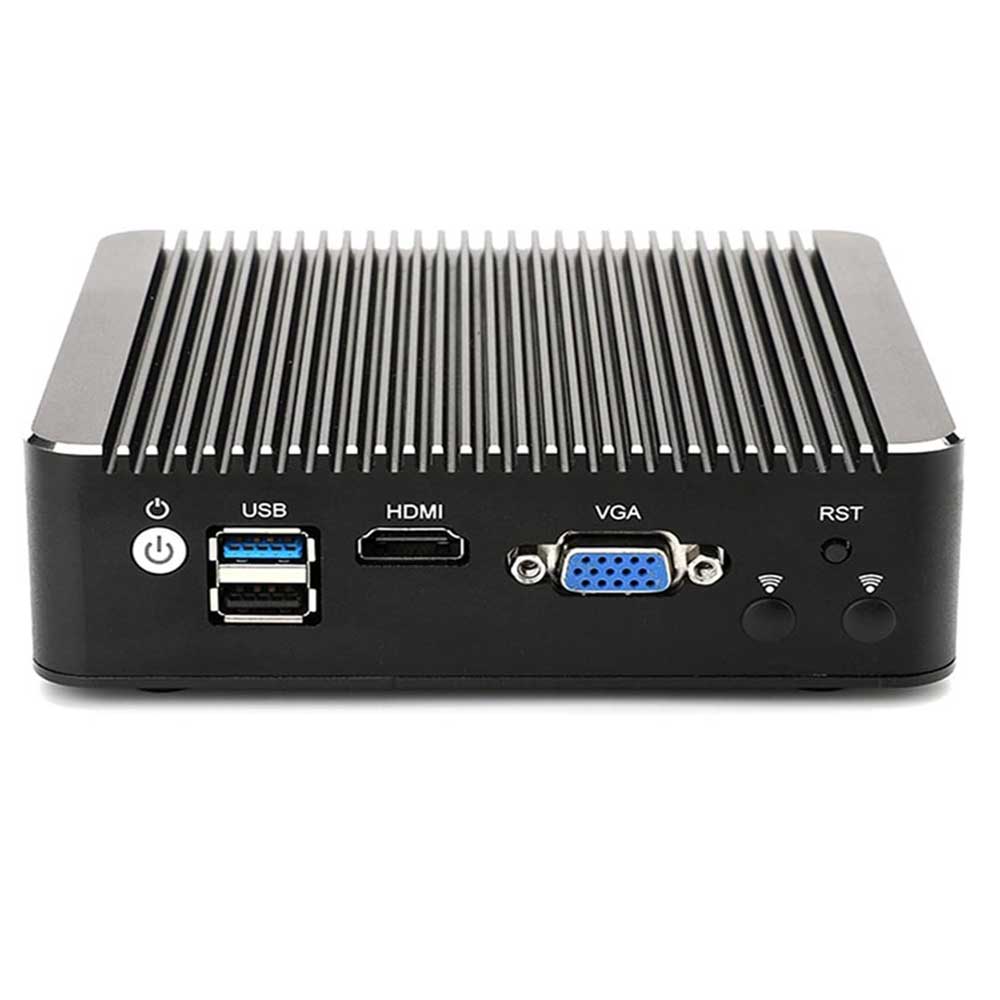

I/0 Port: 4 x LAN+ vga+ HDMI+ usb2.0+ usb3.0+ rst+ dc12v
Power: Dc100-240v AC/50-60hz, 12v/3a
Operating Temperature: 0°c~70°c centigrade (32°f~140°f)
Storage Temperature: -20°c~80°c centigrade (-68°f~176°f)
Relative Humidity: 10%~90% (non-condensing)
TDP: 10w
Cooling system: Fanless, 0.00dB noise
Size: 126 x 134 x 40.6mm
Weight: 1.2kgs
Packing List: firewall appliance+ power supply+ power cord+ warranty card
Function: Supports hardware auto power on, network wake-up, system power management, temperature management
System Compatibility: Any FreeBSD based router systems, Linux distros, or Win.OS supported;
COMPATIBILITY: Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions
4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop,
Welcome your collections on Partaker store and we would be glad to supply you different demands. Contact us freely and you would receive a timely reply
Chassis: Full aluminum
CPU: Intel Celeron Processor J4125 (4M Cache, up to 2.70 GHz)
AES-NI Supported: Yes
Memory Type: 1 x sodimm ddr4,max. 8g RAM
Storage: 1 x mSata SSD+ 1 x 2.5 inch HDD supported
Network Card: Intel pci-e 1000m 4 x i210 or i225 (good performance, less heat, stable)
I/0 Port: 4 x LAN+ vga+ HDMI+ usb2.0+ usb3.0+ rst+ dc12v
Power: Dc100-240v AC/50-60hz, 12v/3a
Operating Temperature: 0°c~70°c centigrade (32°f~140°f)
Storage Temperature: -20°c~80°c centigrade (-68°f~176°f)
Relative Humidity: 10%~90% (non-condensing)
TDP: 10w
Cooling system: Fanless, 0.00dB noise
Size: 126 x 134 x 40.6mm
Weight: 1.2kgs
Packing List: firewall appliance+ power supply+ power cord+ warranty card
Function: Supports hardware auto power on, network wake-up, system power management, temperature management
System Compatibility: Any FreeBSD based router systems, Linux distros, or Win.OS supported;
COMPATIBILITY: Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions
4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop,
Welcome your collections on Partaker store and we would be glad to supply you different demands. Contact us freely and you would receive a timely reply
