| Weight: | 1.2kg |
|---|---|
| Dimensions: | industry |
| Rated Voltage: | 30v |
| Power Source: | Electricity |
| Brand Name: | Xishu |
Quick Details
Specifications

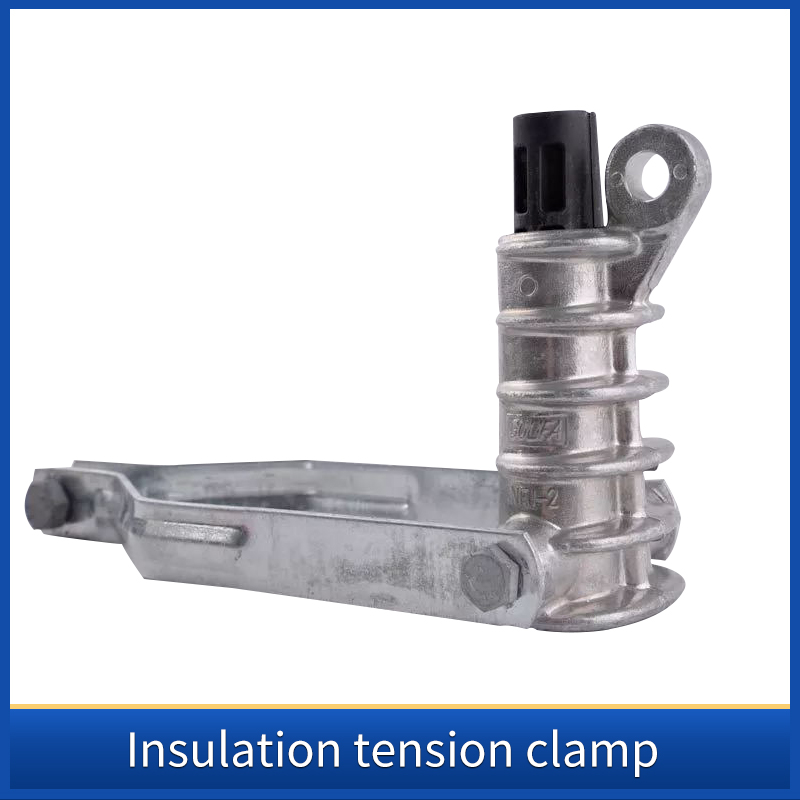

Tension clamp (tension clamp, strain clamp, dead-end clamp) refers to the hardware used to fix the wire to bear the wire tension and hang the wire to the tension string or tower.
Tension clamps can be roughly divided into two categories according to their structure and installation conditions. Category 1: The tension clamp should bear all the pulling force of the wire or the lightning protection wire. The clamping force of the wire clamp is not less than 90% of the rated tensile strength of the installed wire or lightning protection wire, but it is not used as a conductor. this type of clip can be removed after the wire is installed and used separately. Such clamps include bolt-type tension clamps and wedge-type tension clamps. The second category: In addition to bearing all the pulling force of the wire or the lightning conductor, the tension clamp also acts as a conductor. Therefore, once this type of wire clip is installed, it cannot be disassembled, also known as dead wire clip. since it is a conductor, the installation of the wire clip must be carried out carefully in accordance with the provisions of the relevant installation procedures.
Tension clamps can be roughly divided into two categories according to their structure and installation conditions. Category 1: The tension clamp should bear all the pulling force of the wire or the lightning protection wire. The clamping force of the wire clamp is not less than 90% of the rated tensile strength of the installed wire or lightning protection wire, but it is not used as a conductor. this type of clip can be removed after the wire is installed and used separately. Such clamps include bolt-type tension clamps and wedge-type tension clamps. The second category: In addition to bearing all the pulling force of the wire or the lightning conductor, the tension clamp also acts as a conductor. Therefore, once this type of wire clip is installed, it cannot be disassembled, also known as dead wire clip. since it is a conductor, the installation of the wire clip must be carried out carefully in accordance with the provisions of the relevant installation procedures.
