Quick Details

Part: Sunhelm
Brand Name: Sunhelm
Material: Rubber
size: More Than 18mm thickness
Diameter: 2.0*3.5~2.5*4.0m
Place of Origin: China (Mainland)
Structure: Floating
Working Pressure: 0.05 & 0.08MPa
Synthetic Tyre Cord: th High Breaking Strength
Material: Rubber
Transport Package: Deflated or Tray

Specifications

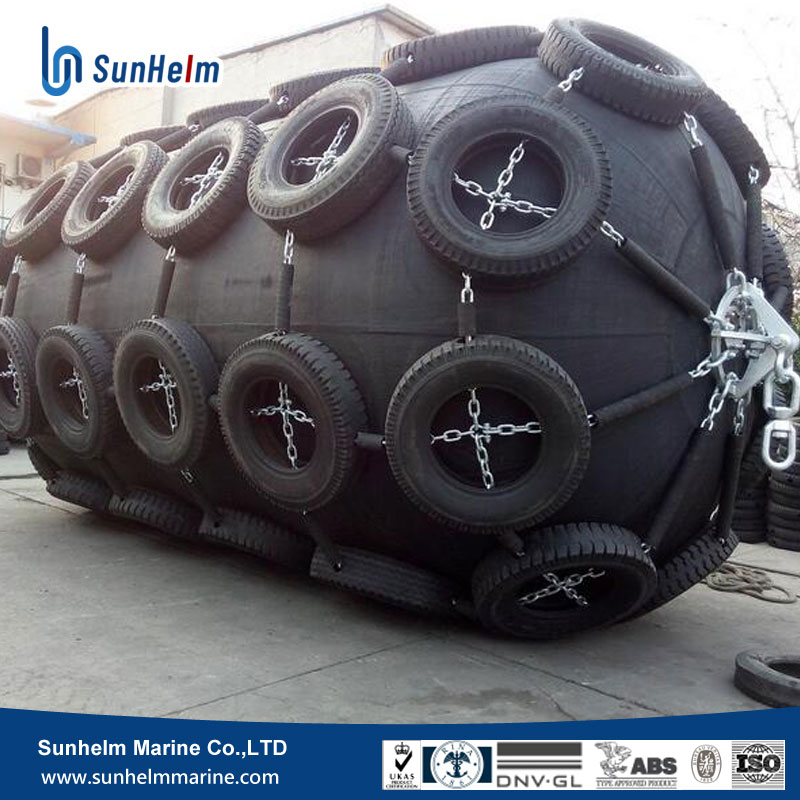

1525 Floating Pneumatic Marine Rubber Dock Fenders Used for Vessels
SunHelm-Pneumatic Fender Specification

Nominal size INTERNAL PRESSURE 0.08Mpa
at 60% deflection		 Safety-valve pressure setting Testing pressure
Diameter Length Energy absorption Reacion force Hull pressure
mm mm kNm kN kPa kPa kPa
500 1000 8 85 174 - 250
600 1000 11 98 166 - 250
700 1500 24 180 177 - 250
1000 1500 45 239 160 - 250
1000 2000 63 338 174 - 250
1200 2000 88 390 166 - 250
1350 2500 142 561 170 - 250
1500 3000 214 761 174 - 250
1700 3000 287 840 168 - 250
2000 3500 430 1150 168 - 250
2500 4000 925 1815 180 230 300
2500 5500 1317 2653 195 230 300
3000 6000 1890 2906 196 230 300
3300 4500 1640 2476 171 230 300
3300 6500 2532 3961 191 230 300
3300 10600 4281 6907 208 230 300
4500 9000 6633 7551 192 230 300
4500 12000 9037 10490 202 230 300
