| Connection: | Female |
|---|---|
| Brand Name: | RUNLI |
| Type: | Bushing |
| Technics: | Casting |
| Material: | Stainless Steel |
| Model Number: | Stainless steel bellows |
| Place of Origin: | China (Mainland) |

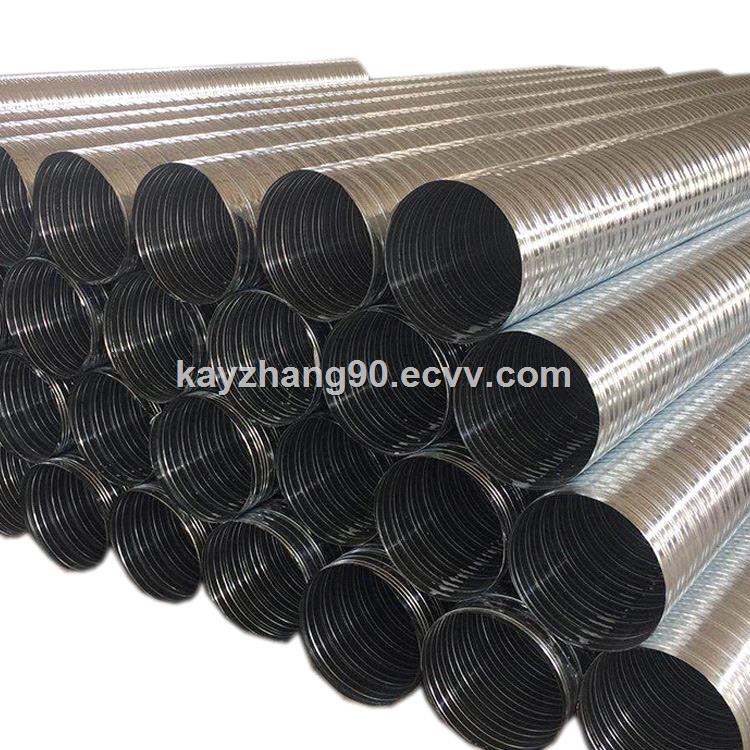

| Product name: | Manufacturers Direct Sale Concrete Pipe Bellow Stainless Steel Prestressed Metal Bellows |
| material: | metal |
| structural style: | Single wall bellows |
| use: | Roads, tunnels, Bridges |
| Nominal diameter: | 35-130(mm) |
| Wall thickness: | 0.25-0.5(mm) |
| length: | 10(m) |
| compressive strength: | 90 |
| Inner diameter: | 50 |
Quick Details
Specifications
Prestressed metal bellows are made of two materials, one is black steel belt and the other is galvanized steel belt.
Mainly with bellows machine processing, wavy port, mutual bite, a circle of production.
Product performance
1. Rigidity test: radial deformation ≤0.1d under concentrated load of 0.75kN or uniformly distributed load of 1.5kN.
2, anti-permeability test: irrigation or water-cement ratio of 0.5 cement slurry 30 minutes without water leakage, slurry leakage.
3, tensile test: the axial tension of 5KN tube wall no damage.
4, pull out test: buried in concrete pull out force for anchor bolt design pull out force for anchor bolt design pull out force 2.3 times more.
5, bending test: bending radius of curvature for 30d, no water leakage, slurry leakage.
Specifications
the material of the steel belt is 0.25mm~0.3mm thick steel belt. the thickness of the corrugated pipe (detection pipe) formed needs 0.35mm. most of the corrugated pipe used in the construction site is about 0.3mm, less than 0.03mm. the specifications of bellows can be calculated in accordance with the inner diameter, also can be calculated in accordance with the outer diameter, most of the industry according to the inner diameter, the specifications of the inner diameter have 50mm-100mm,(the coefficient of the whole ten), of course, there are 55mm bellows, as for more than 100, a lot of places are not provided.
the relevant provisions
in line with GB/T9647-2003 national standard, "metal bellows for prestressed concrete Bridges" JG225-2007.
Fold this section to edit the application field
Highway bridge, railway bridge, construction water conservancy, electric power and other state key projects.
