Product description:

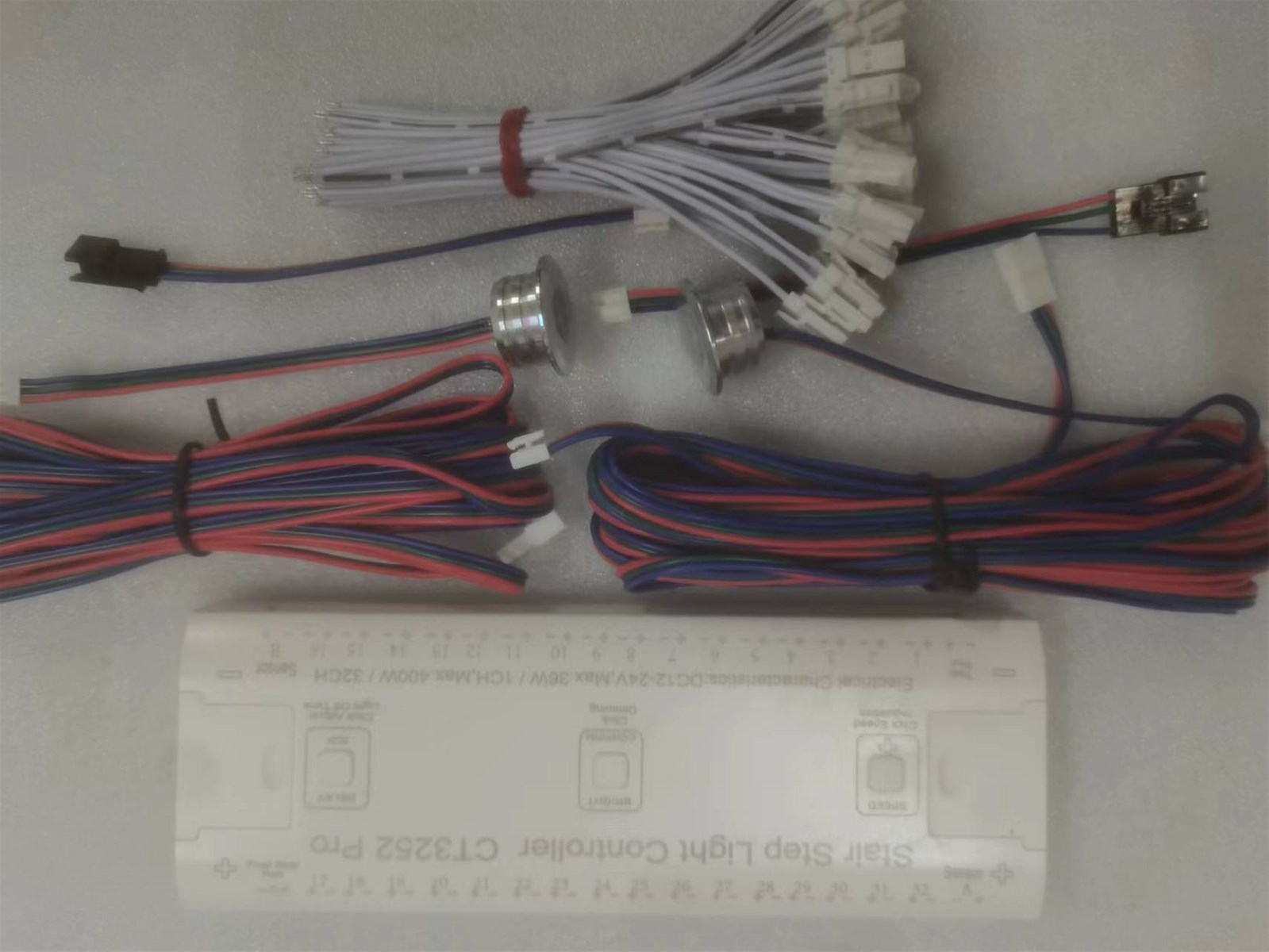

Product name: 32-channel stair step light Controller

Rate Voltage: DC12V/DC24V

Rate Power: ≤400w

LED Channel: 32

Sensors: 2



Installation Tips:

1,When the lamp is Plugged into the controller, be sure to find the socket of the corresponding Serial number

2,the controller and sensor can be hidden in the electric box

3,Be sure to Connect the positive and negative poles, the red is the positive, the blue is the negative, and the low-voltage current is DC12-24V, not AC220V/110V

4,It is Recommended to bury the line in advance and install the lights when the stairs Are decorated.

5,the wiring needs to be disconnected, and the wiring cannot be plugged in to avoid short circuit



NOTE:

1-A/B sensors need to be installed at the Entrance and exit of the stairs and face the human body.

2- the product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the Controller.

3- the product is not waterproof.

Important note:

the positive and negative terminals of the Power supply input of

the controller cannot be reversed, the red Wire V+ is connected to the

Positive electrode of the switching power Supply, and the blue (or black

Wire) V- is connected to the negative Electrode of the switching power

Supply.
