| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Weight: | 850kg |
| Power(W): | 11kW |
| Brand Name: | Tunly |
| Condition: | New |
| Warranty: | one year |
| Certification: | ISO9001,9004, CE |
| Dimension(L*W*H): | 2200*1120*1150mm |
| Voltage: | 380V |
| Model Number: | GQ520 |
| Place of Origin: | China (Mainland) |
| type: | GQ520 |
| capacity: | 4000kg per hour |
| power: | 11kW |
| speed: | 330r/min |
| channel size: | 650*520*190mm |
| meat temperature: | -5 to -18 degree |
| weight: | 850kg |
| dimension: | 2200*1120*1150mm |
Quick Details
Specifications
1.Brief Introduction:

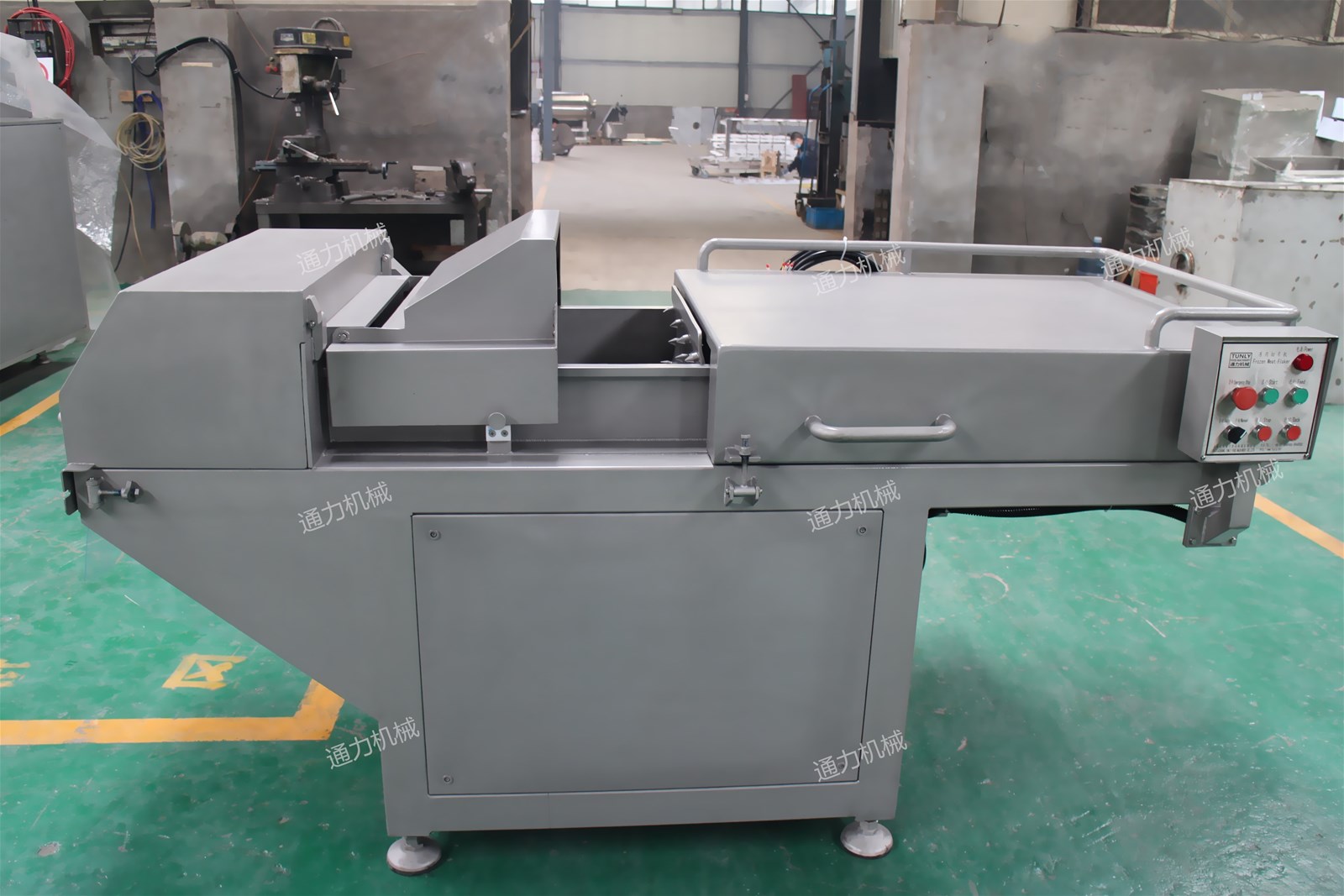

Frozen meat slicer is special equipment for frozen meat processing.
It is capable of directly slicing a frozen bulk,in which means save
the time required for the process of unfreezing and slow down
Temperature rising of raw meat during processing so as to save
Refrigeration cost,ideal equipment for meat processing.
the size of sliced meat is adjustable and the meat may directly go to next process.
Its automatic feeding system shall effectively reduce work intensity of workers.
Its automatic protection function ensures operational safety.
Its cutting blade,made of good quality alloy steel,is keen and
Durable,and two edged blade may be alternatively used,which shall lower
Expensive for maintenance of equipment.
the whole machine is made of stainless steel;with beautify outline,reasonable structure,and stable performance.
2.Techincal parameters: Type GQ-520 DQ-520 Capacity(kg/h) 3000 2000 Power(kw) 11 7.5 Speed(r/min) 330 60 Channel size(mm) 650520190 650520190 Meat temperature(℃) -5~-18 -5~-18 Weight(kg) 880 850 Dimension(mm) 220010801100 210010501100
