| Brand Name: | Bioevopeak |
|---|---|
| Capacity: | 316L |
| Climate: | / |
| Folded: | no |
| Metal Type: | Stainless steel |
| Place of Origin: | China (Mainland) |
| Model Number: | PR5-320 |
| Cooling method: | Forced Air Cooling System |
| Defrost: | Auto |
| Refrigerant: | R290 |
| Sensor Type: | NTC |
| Door Lock: | 2 |
Quick Details
Specifications
Bioevopeak Double Door Laboratory pharmacy medical refrigerator 2~8 Degree vaccine refrigerator
SPECIFICATIONS
FAQ
DESCRIPTION
Reliability and Key Features
High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
to achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.

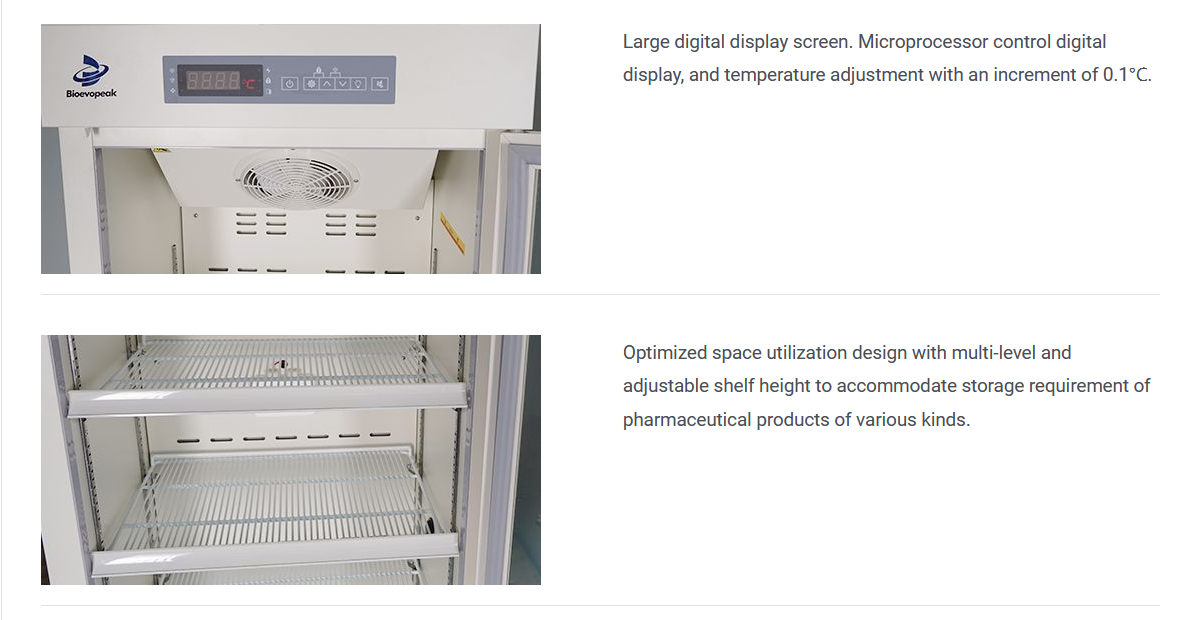

Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.
Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Optional testing hole.
Adjustable shelves.
Inner light design for a clear display.
Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.
Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and
Uniform. Finned evaporator with special cycle design of forced air
Cooling system to ensure no-frost inside.
Ergonomic Design
Optimized space utilization design with multi-level and adjustable
Shelf height to accommodate storage requirement of pharmaceutical
Products of various kinds.
Safety lock to prevent unauthorized access.

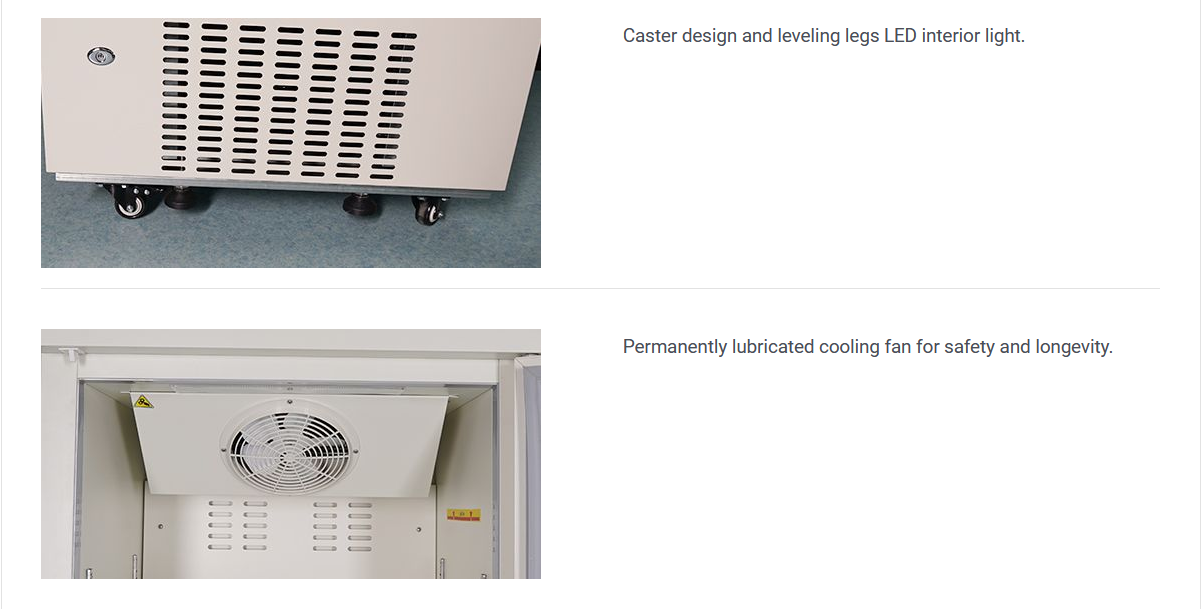

Caster design and leveling legs LED interior light.
SPECIFICATIONS
| Model | PR5-660 | PR5-1000 | |
| Specifications | Shelf/drawer | Shelves/10 | Shelves/10 |
| Cooling method | Forced Air Cooling System | Forced Air Cooling System | |
| Defrost | Auto | Auto | |
| Refrigerant | R290 | R290 | |
| Power consumption(kWh/24h) | 5.75 | 6.23 | |
| Noise(db) | 52 | 53 | |
| Ambient temperature(℃) | 10~32℃ | 10~32℃ | |
| Temperature range(℃) | 2~8℃ | 2~8℃ | |
| Cooling system | Compressor brand/QTY | China Brand/1 | China Brand/1 |
| Sensor Type | NTC | NTC | |
| Temperature controller | Microprocessor | Microprocessor | |
| Display | Digital display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz | 220/50Hz |
| Power(W) | 385W | 425W | |
| Current(A) | 2.3A | 2.4A | |
| Material | Inside material | Color sprayed steel | Color sprayed steel |
| Outside material | Color sprayed steel | Color sprayed steel | |
| Insulation | PURF | PURF | |
| Size | Capacity(L/cu.Ft) | 656/23.16 | 1006/35.52 |
| NT./GT.(kg) | 166/184 | 189/213 | |
| Exterior size(W*D*H)(mm) | 1240*630*1895 | 1240*820*1900 | |
| Interior size(W*D*H)(mm) | 1100*454*1325 | 1100*684*1325 | |
| Package size(W*D*H)(mm) | 1335*710*2000 | 1335*945*2000 | |
| CBM | 1.9 | 2.52 | |
| 20GP/40GP/40HQ | 12/27/27 | 8/18/18 | |
| Alarm | High/low temperature | Y | Y |
| Power failure | Y | Y | |
| Thermostat failure | Y | Y | |
| Backup battery failure alarm | / | / | |
| Condenser fault alarm | / | / | |
| Ambient Temperatures | / | / | |
| Voltage abnormality alarm | / | / | |
| Door ajar | Y | Y | |
| System abnormal alarm | / | / | |
| Power failure backup system(alarm) | 8h | 8h | |

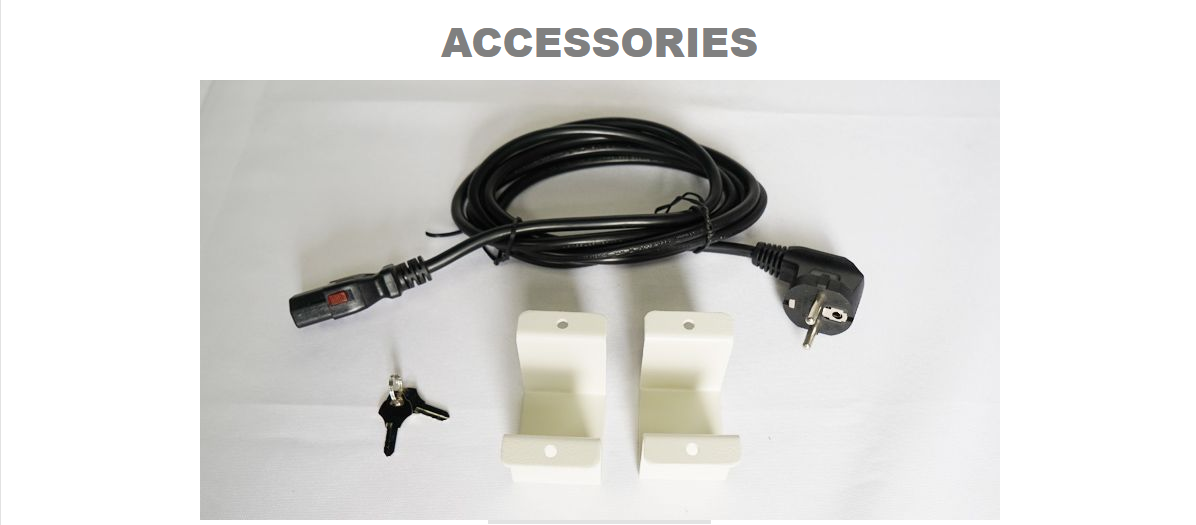

| Accessories | Foot | / | / |
| Castor | Y | Y | |
| Outer door/Type | 2/Heating glass door with automatic rebound | 2/Heating glass door with automatic rebound | |
| Door Lock | 2 | 2 | |
| Test hole QTY/diameter | 1/25mm | 1/25mm | |
| Lamp | LED | LED | |
| USB port | / | / | |
| Temperature recorder | Optional | Optional | |
| Remote alarm port | Y | Y | |
| RS232/485 port | / | / |
FAQ
Q: how about quality of the goods?
A:
L All the running products comply with CE standards.
L Independent Quality inspection team, conducting multiple inspections and random Inspections from parts supply to product dispatch.
L Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
L Timely reply to pre-sales enquiries
L Real-time update of manufacturing and shipment status
L Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: most of the running products are available for OEM customization, Including logo, package and function, if attainable, customization.
Q: how long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, Vary by models and production schedule. for those non-stocked products, the manufacturing lead time is around 20 days.
